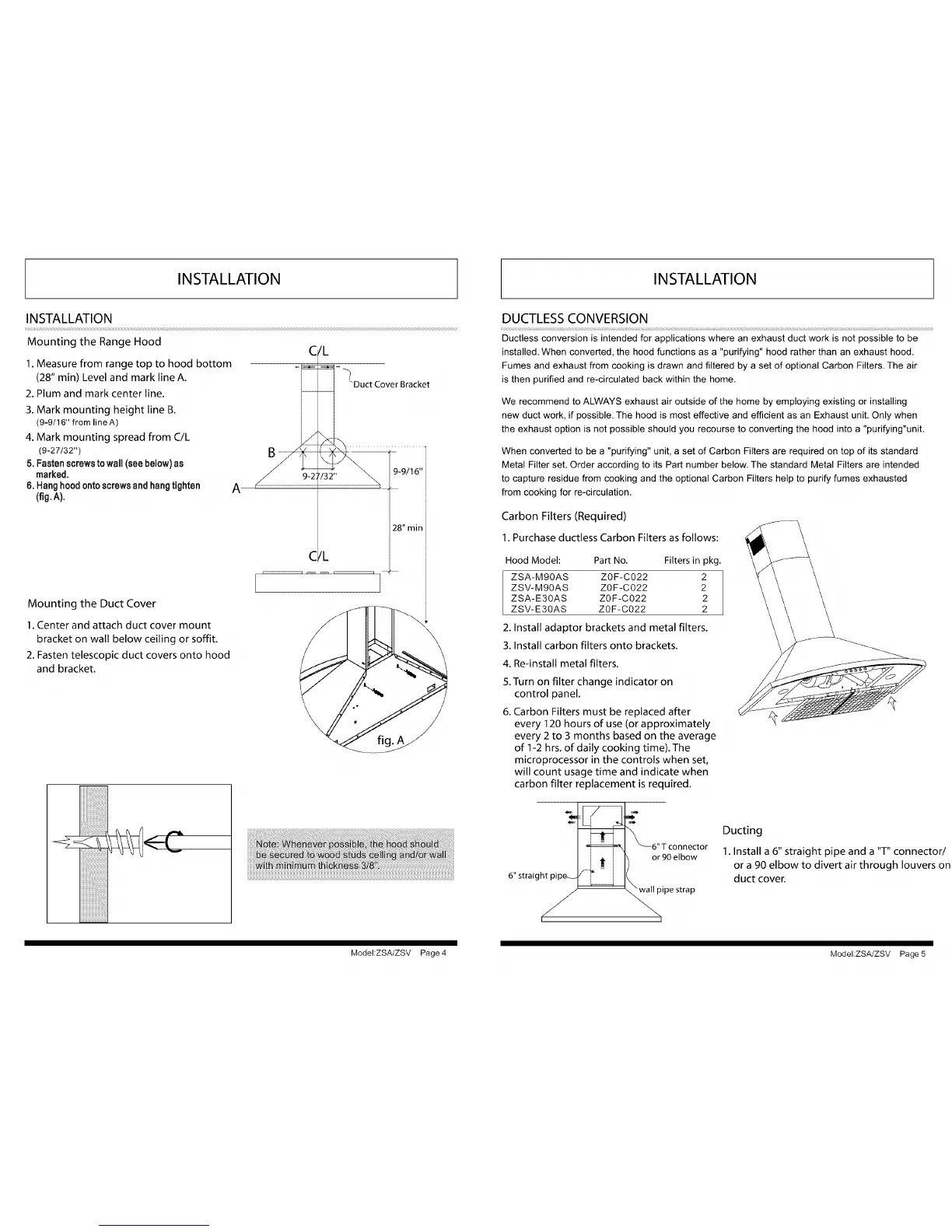

INSTALLATION
INSTALLATION
Mounting the Range Hood
1. Measure from range top to hood bottom
(28" min) Level and mark line A.
2. Plum and mark center line.
3, Mark mounting height line B,
(9-9/16" from line A)
4. Mark mounting spread from C/L
(9-27/32")
5. Fasten screws to wala(see below) as
marked.
6. Hang hoodonto screws and hang tighten
(fig,A).
A
/L
28" rain I
C/L
Mounting the Duct Cover
1, Center and attach duct cover mount
bracket on wall below ceiling or soffit.
2. Fasten telescopic duct covers onto hood
and bracket.
INSTALLATION
DUCTLESS CONVERSION
Ductless conversion is intended for applications where an exhaust duct work is not possible to be
installed. When converted, the hood functions as a "purifying" hood rather than an exhaust hood.
Fumes and exhaust from cooking is drawn and filtered by a set of optional Carbon Filters, The air
is then purified and re-circulated back within the home.
We recommend to ALWAYS exhaust air outside of the home by employing existing or installing
new duct work, if possible. The hood is most effective and efficient as an Exhaust unit. Only when
the exhaust option is not possible should you recourse to converting the hood into a "purifying"unit.
When converted to be a "purifying" unit, a set of Carbon Filters are required on top of its standard
Metal Filter set. Order according to its Part number below. The standard Metal Filters are intended
to capture residue from cooking and the optional Carbon Filters help to purify fumes exhausted
from cooking for re-circulation.
Carbon Filters (Required)
1. Purchase ductless Carbon Filters as follows:
Hood Model: PartNo. Filtersin pkg.
ZSA-M90AS ZOF-C022 2
ZSV-M90AS ZOF-C022 2
ZSA-E30AS ZOF-C022 2
ZSV-E30AS ZOF-C022 2
2. Install adaptor brackets and metal filters.
3. Install carbon filters onto brackets.
4. Re-install metal filters.
5.Turn on filter change indicator on
control panel.
6. Carbon Filters must be replaced after
every 120 hours of use (or approximately
every 2 to 3 months based on the average
of 1-2 hrs. of daily cooking time). The
microprocessor in the controls when set,
will count usage time and indicate when
carbon filter replacement is required.
6" straight pipe_
or 90 elbow
"wall pipe strap
Ducting
1. Install a 6" straight pipe and a "T" connector/
or a 90 elbow to divert air through louvers on
duct cover.
Model:ZSA/ZSV Page4 ModeI:ZSA/ZSV Page 5
