Zephyr ZAZ Series User Manual

4
www.zephyronline.com
(3) Wire Nuts
(4) ø12 OD / ø5
ID Washers
(4) M4 x 1”
wood srews
(4) 3/16 x 1/4” flat-head
machine screws
(1) Hardware package
(1) 6” round damper (pre-installed)

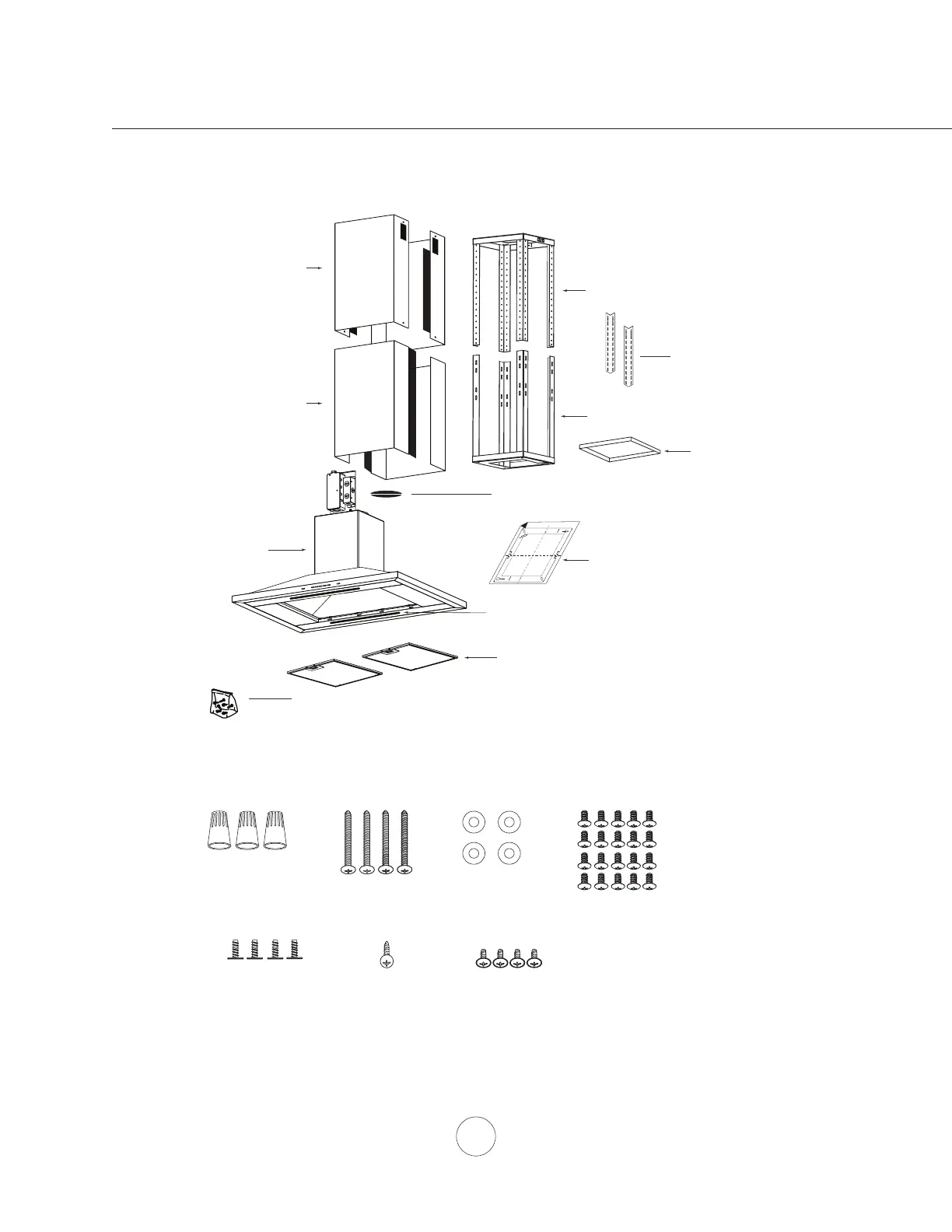

PARTS SUPPLIED
HARDWARE PACKAGE CONTENTS
PARTS NOT SUPPLIED
- Ducting, conduit and all installation tools
- Cable connector (if required by local codes)
- Duct cover extension accessory
- Recirculating kit accessory
(2) Top Duct Covers
(1) Top Support Frame
(2) Bottom Duct Covers
(1) Bottom Support Frame
(1) Hood Body
(2) Brite Strip™ LED
(2) Mesh Filters
(ZAZ-E42 & ZRM-E42 x 3)
(1) M4 x 12
safety screw
A
B
Front of Hood
C
L
/
Cut-Out Shaded Area
(1) Paper ceiling template
(20) M4 x 8 pan-head
machine screws
(ZLC x 8)
(2) Lateral support brackets
(ZLC ONLY)
(1) Square support bracket
(ZAZ ONLY)
(4) 3/16 x1/4 pan-head
machine scews
(ZRE only)
List of Materials
