Attach the plug from the Ground Power Cart to the receptacle provided.
o Attach the 220 V AC power
o Attach the ZGS-12201-1, ZGS-12202-1 and the ZGS-12203-1 cable
assemblies,

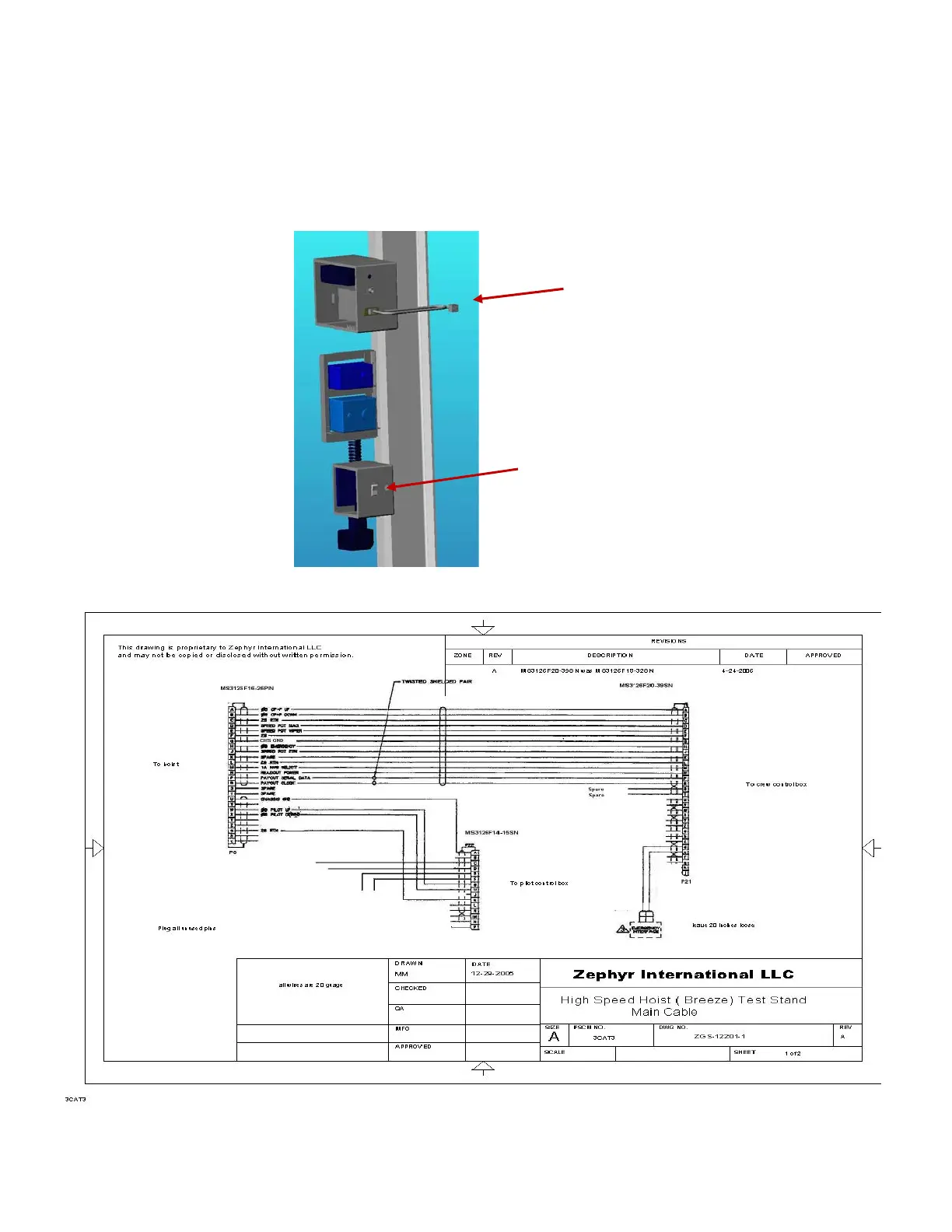

ZGS-12201-1 High Speed Hoist Test Stand Main Cable
3 phase breaker switch
220 VAC 50 Hz input power
