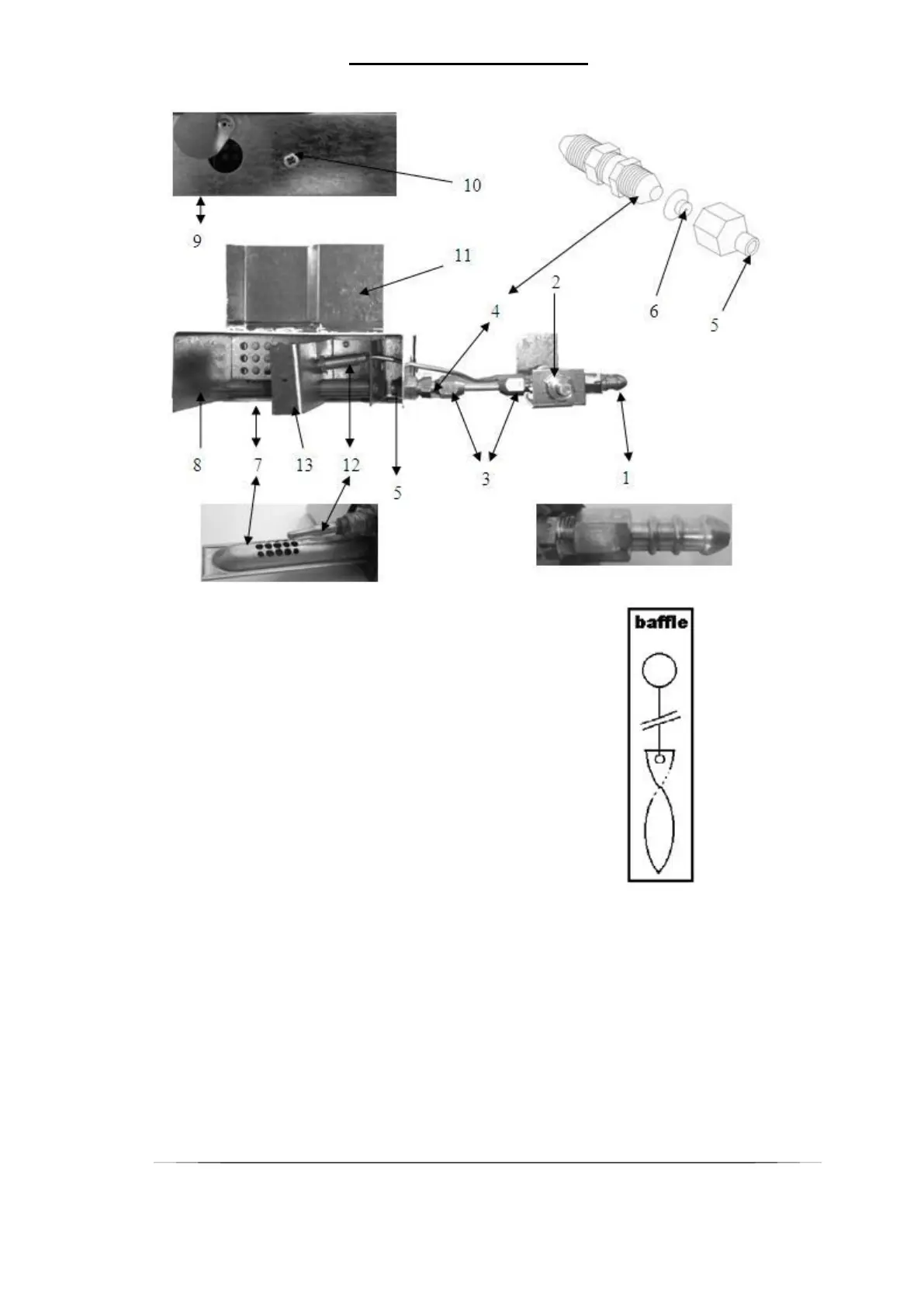

GAS BURNER PARTS LIST

1. SANS BRASS HOSE TAIL.

2. FLAME FAILURE DEVICE.

3. M10 NUTS.

4. M10 x 3/8 UNF JET HOLDER.

5. M10 x 1 JET NUT.

6. JET.

7. MIXING TUBE.

8. BURNER BOX.

9. BURNER COVER.

10. RETAINER SCREW.

11. HEAT SHIELD.

12. THERMOCOUPLE.

13. MIXING TUBE BRACKET.
