ZERO GRAVITY RK7801 - Page 8

11 12
Notice:(Disassemblingarms)
Disassemblingarms:Unscrewingthescrewwhichfixesthearmrotatingshaftcapandback
rotatingshaftwithinnerhexagonspanner;Movingtheseatcushionandthenmovingthefront/
backcover,unscrewingthescrews(M6*16).Pluggingofftheairtubes. Takingoffthearmswith
twohands.

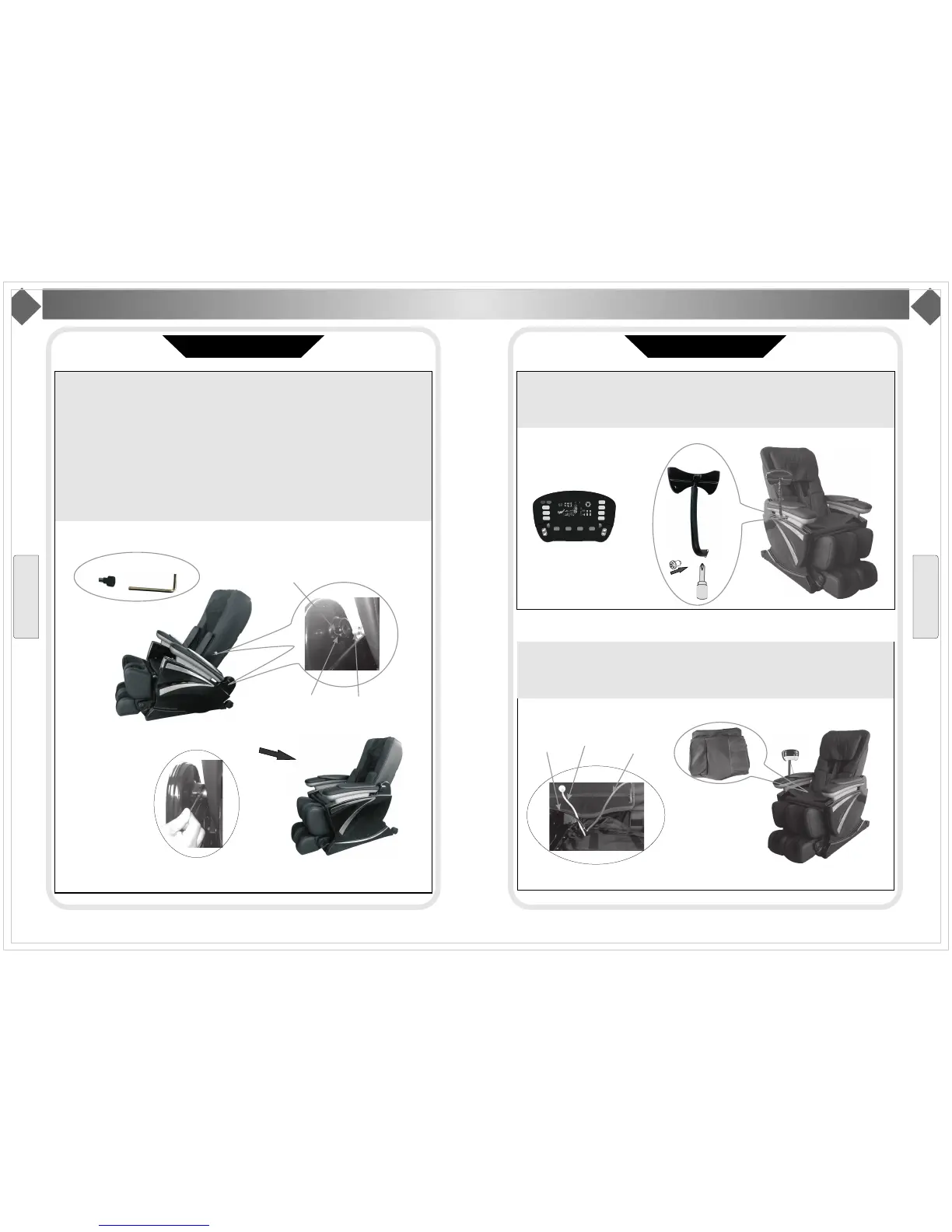

Installation Illustration
Installation(3)
Step 3.Install lower arms
(2) Unscrewing the screw in the shaft cap, moving the lower arm to make the rotating shaft cap
align with shaft rotating in back, then connect them well. Using inner hexag on spanner to screw
the screw into the lower arm screw hole(as picture).(3) Repeat above step to install another arm.
Installation
Screw
Innerhexagon
spanner
Screwhole
Lowerarmshaft
rotatingcap
Shaftrotatinginback
Using inner hexagon
spanner connect the
back shaft rotating
and arm shaft rotating
cap
Finishing the arm installation
Step 4. Install remote control holder and insert remote control
Using three screws(M5*16), three 5 spring shim to fix the remote control to right upper arm, then
insert the remote control into the bracket and fix the remote control cables to the buckle at the end
of the arm.
ф
Remotecontrol
Remote
control
holder
and
bracket
Step 5. Connect seat air tube
Connect the air tubes in seat cushion and seat frame as color (black with black, purple with purple,
gray with gray, brown with brown). Then stick the snap fastener together.
Black air tube
Gray air tube
Brown air tube
Seatcushion
Installation Illustration
Installation(4)
Inst
allat
ion
On/off
T
m ng
Mechanical
Massage
P
ressure
Massage
ZERO-G
Stop
S
houlder
W
a st
I
ntensity
Fatigue
recovery
Pain
relieving
Comfortable
mood
D
emo
A
uto
Custom
Returning...Bodydetecting...
Overall
S
houlder
Back
Waist
Point
Width
Speed
3D
S
trength
Volume
