Zero 10 User Manual

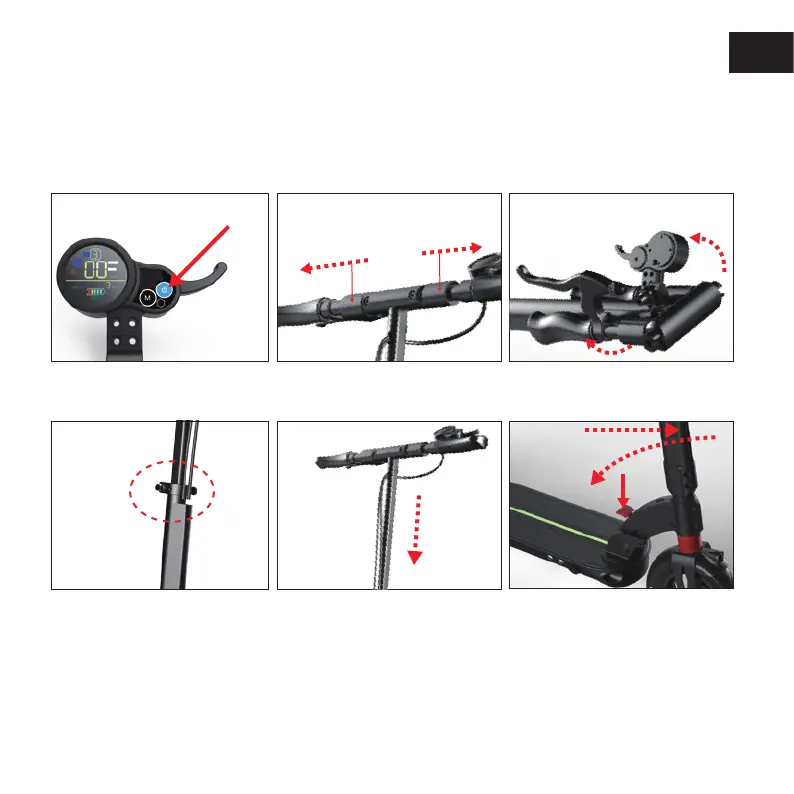

ZERO 9: Folding
Step 1:
Turn power on
Step 2:
Slide locking sleeves
outward to release grips
Step 3:
Fold down handle grips
A
B
C
Step 5:
Shorten T-bar
Step 4:
Open the quick-release clamp
Step 6:
(A) While pressing down on the folding
lever, push steering column forward (B)
to unlock joint. Keeping the lever pressed
down (A), fold the steering column
towards the deck (C) until it locks into
position.
9

Zero 10 Specifications

General

Motor Power	1000W
Battery Capacity	52V 18Ah
Top Speed	40 mph (64 km/h)
Tire Size	10 inches
Suspension	Front and rear spring suspension
Max Load	265 lbs (120 kg)
Water Resistance	IP54
Range	50 miles (80 km)
Weight	60 lbs (27 kg)
Brakes	Front and rear disc brakes
