Reassembly
16 . Refit all covers, reusing the screws that have been retained.
If you hear a relay buzzing, the channel dimmer law hasn’t been set to Switch. See step 1.
Instructions for Chilli MK1 & MK2
Configure Relay Channels
1 . Prior to fitting the relay cards, configure the channels you wish to convert to relays in the dimmer settings. Using
the User Interface:
1.
Press Enter to get to the Menu
2.
Use the Up/Down Arrows to select Dimmer Laws
3.
Press Enter
4.
Use the Up/Down Arrows to get to Set Laws
5.
Press Enter
6.
Use the Up/Down Arrows to Select the Channel
7.
Press Enter to confirm
8.
Use the Up/Down Arrows to Select the law [Switch]
9.
Press Enter to confirm and repeat for all necessary channels.
2 . Remove the front cover(s) by removing the screws on the front of the unit.
Retain all screws as they will be required for reassembly.

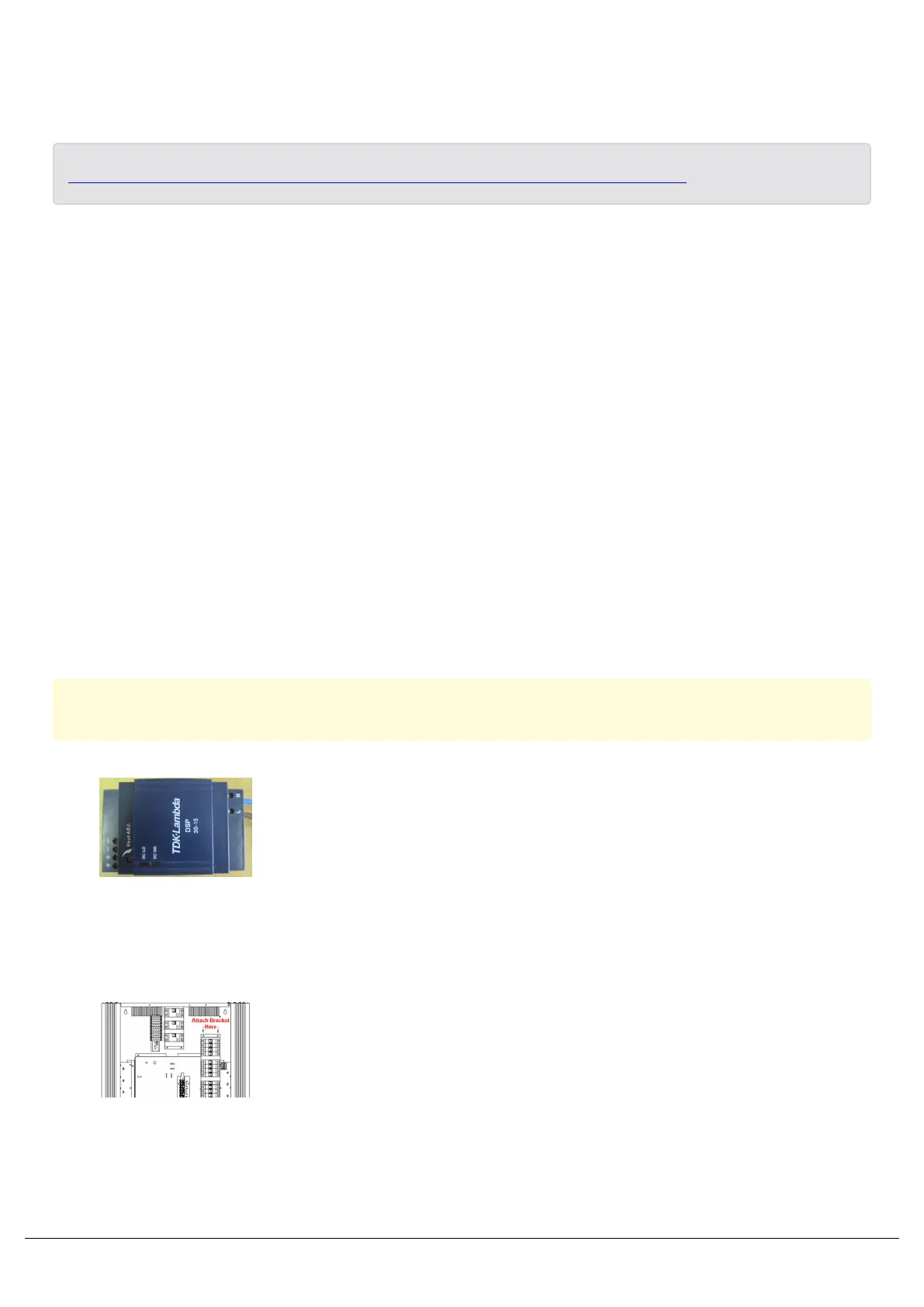

3 . Before assembling it to the unit, fit the following wires to the power
supply of the Primary Card:
1.
Fit the brown Live wire to Live PSU terminal.
2.
Fit blue Neutral wire to Neutral PSU terminal.
3.
Fit terminated end of black wire on the long DC supply cable to
a – terminal on the PSU
4.
Fit terminated end of red wire on the long DC supply cable to a
+ terminal on the PSU
4 . Assemble the metal bracket to the unit in the position shown. Do
this by removing the two screws holding the circuit breaker bracket to
the enclosure, putting the metal bracket into position and refitting the
screws. Once the bracket is in place clip the power supply to the
metal bracket such that the N and L terminals are facing to the right.
