2 PRODUCT OVERVIEW
The QTM-UAR10 is configured for use as an Anchor node. It is one of many reference nodes in the
tracking system. This Anchor node is the stationary, tracking reference node that should not be moved
after system calibration.
The QTM-UMR10 is configured for use as a Mobile node. It is the target of the tracking system. This
node functions as the tracked object and is tracked in real time by the Quantum RTLS system. The QTM-
UMR10 has the same form factor as the QTM-UAR10. The QTM-UMR10 also includes an inertial
measurement unit (IMU) internally and different software configuration settings than the Anchor unit.

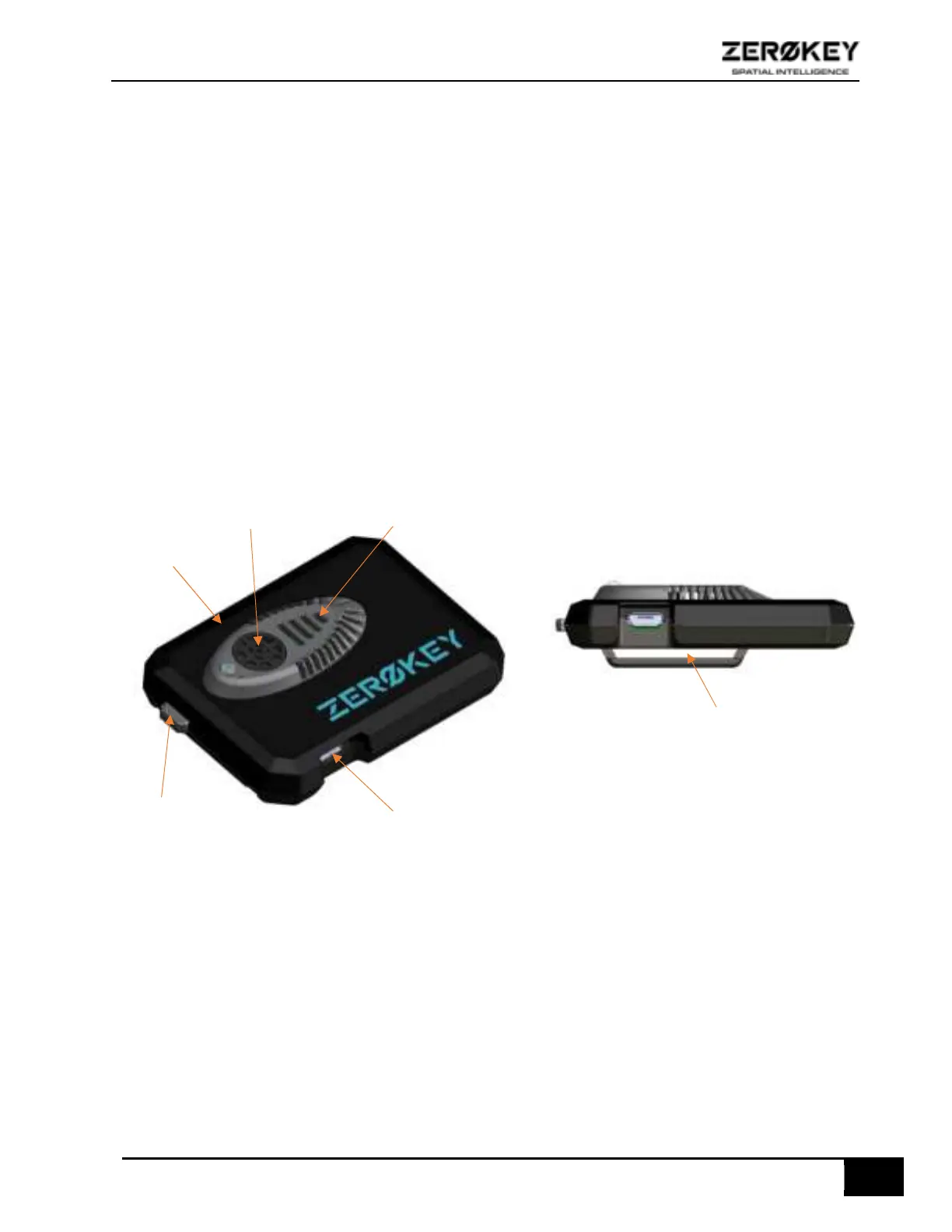

2.1 DEVICE COMPONENTS
2.2 PHYSICAL CHARACTERISTICS
2.2.1 SIZE
45 mm tall, 62 mm wide and 18 mm deep.
2.2.2 WEIGHT
30 grams.
2.2.3 POWER
The QTM-UAR10/QTM-UMR10 is battery powered with an integral rechargeable internal battery. ONLY
use the supplied charger and cable to recharge the unit. Use of another charger could cause damage or
impair the device.
Micro
-
USB port
Ultrasonic
transducer
Status indicator
light
Temperature
sensor
Action button
Mount opening
