Zest ZQ280S2D2 - F1 Group: V;F Control Parameters

Function
code
Name Description
Setting
range
Factory
default

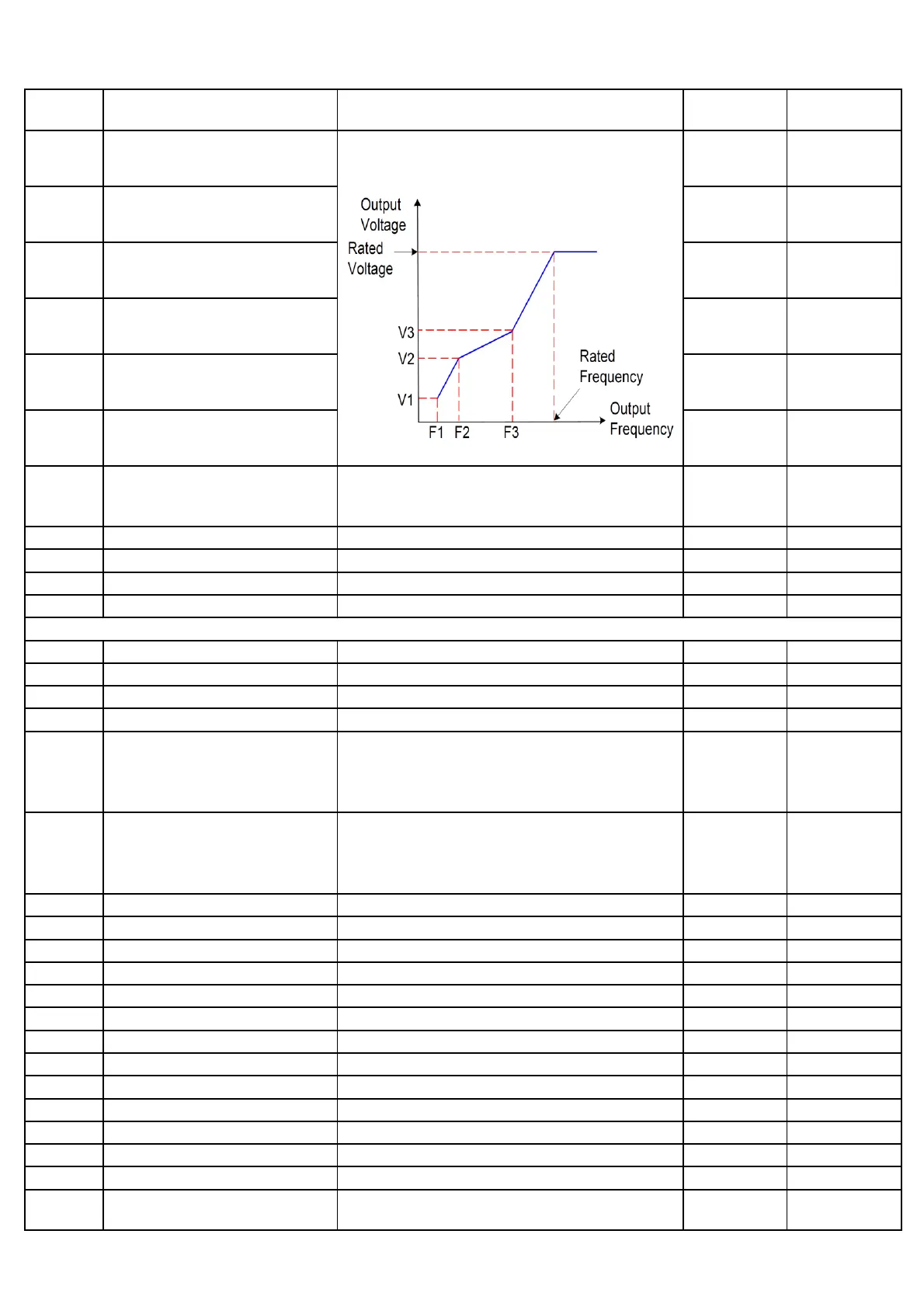

F1.04 Self-setting frequency F1
0.01-
frequency F2
12.50Hz
F1.05 Self-setting voltage V1
0.0-
voltage V2
25.0%
F1.06 Self-setting frequency F2 F1-F3 25.00Hz
F1.07 Self-setting voltage V2 V1-V3 50.0%
F1.08 Self-setting frequency F3
F2-Motor
rated
frequency
37.50Hz
F1.09 Self-setting voltage V3 V2-100% 75.0%
F1.10 AVR function
0：Forbid
1：All Effective
2：Forbid only deceleration
0-2 0
F1.11 Brake ratio Braking resistor braking ratio 0-100% 90%
F1.12 Torque compensation gain 0-150% 0%
F1.13 VF overexcitation gain 0-200% 84%
F1.14 Oscillation suppression ffunction 0-6 5
F2.00 ASR Low speed Kp 1-100 20
F2.01 ASR Low speed Ki 1-10.00 0.50
F2.02 ASR High speed Kp 1-100 10
F2.03 ASR High speed Ki 1-10.00 1.0
F2.04
ASR Low speed switch
frequency
Lower limit
frequency -
Max
frequency
10.00Hz
F2.05
ASR High speed switch
frequency
Lower limit
frequency -
Max
frequency
30.00Hz
F2.06 Electric slip compensation gain 0.0-100.0% 0
F2.07 Reserved
F2.08 Reserved
F2.09 Reserved
F2.10 Current loop Kp 0-60000 2000
F2.11 Current loop Ki 0-60000 1300
F2.12 Reserved
F2.13 Reserved
F2.14 SVC motor slip compensation 0-200% 100%
F2.15 Reserved
F2.16 Reserved
F2.17 Reserved
F2.18 Reserved
F2.19
Speed control (drive) torque
upper limit digital setting
0.0-200.0% 150.0%
Voltage is a percentage of the rated voltage of
the motor
F2 group:Vector Control Parameters
10
