Input spline side (fig. 8-2a)
ZF 63 A (no ratio 2.7) - ZF 63
.
Remove thrust washer (1) off using two screwdri-
vers.
.
Take off gear (2) and needle bearings (3).
.
Remove pressure plate (5). Press snap ring (4)
against periphery of pressure plate by means of
screwdrivers. Extract them together. The discs (6)
can now be removed from the clutch housing.
Input spline side (fig. 8-2b)
ZF 80 A - ZF 80-1 A
ZF 63 A (only ratio 2.7)
ZF 85 A
.
Remove thrust washer (1) off using two screwdri-
vers.
.
Take off gear (2), needle bearings (3) and spacer
(4).
.
Remove pressure plate (6). Press snap ring (5)
against periphery of pressure plate by means of
screwdrivers. Extract them together.
The discs (7) can now be removed from the clutch
housing.
16
Repair Manual and Spare Parts List Section 3
5
2
1
3
6
4

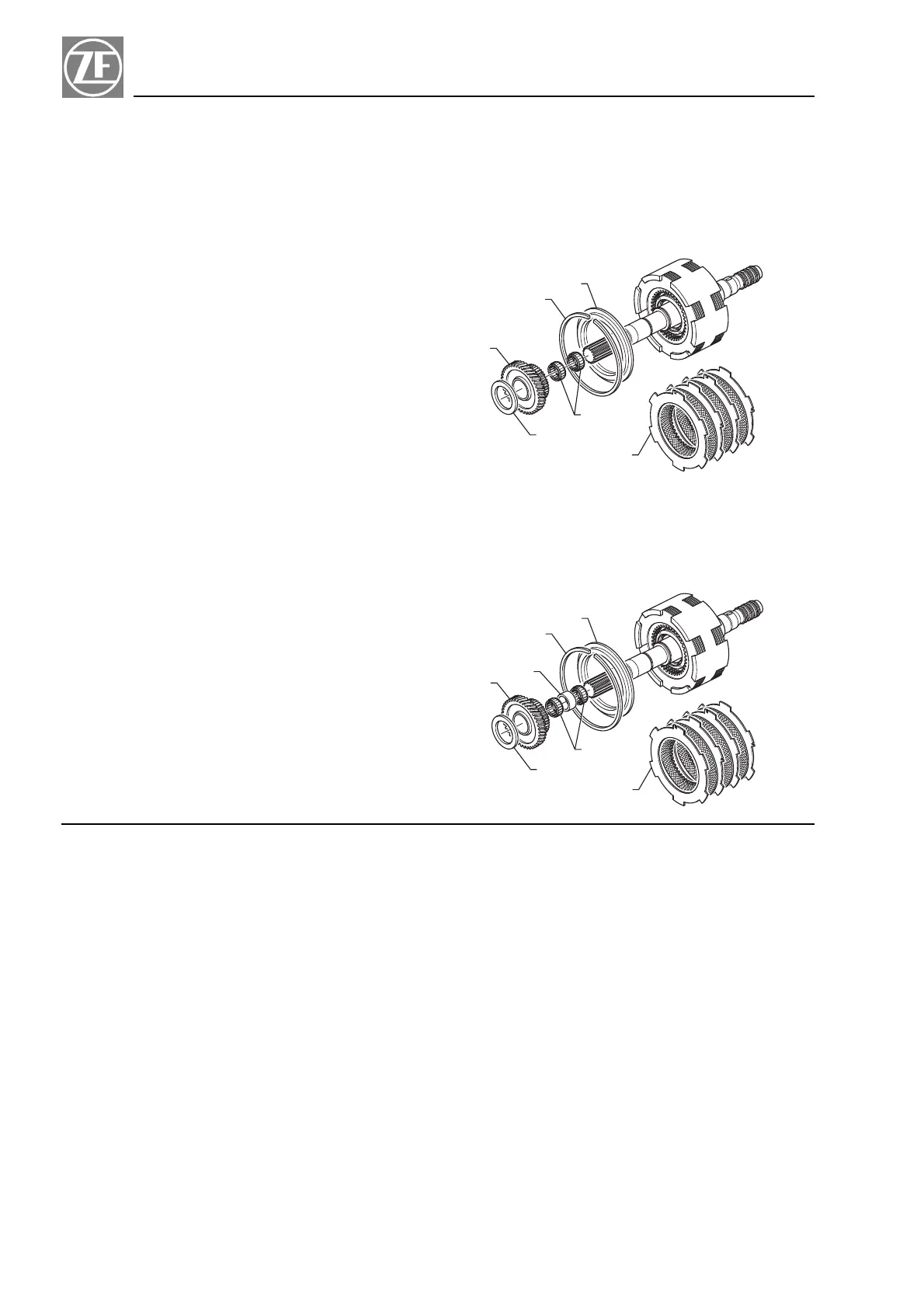

FIG. 8 - 2a
6
4
2
1
3
7
5
FIG. 8 - 2b
