Connecting the Hardware
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
19

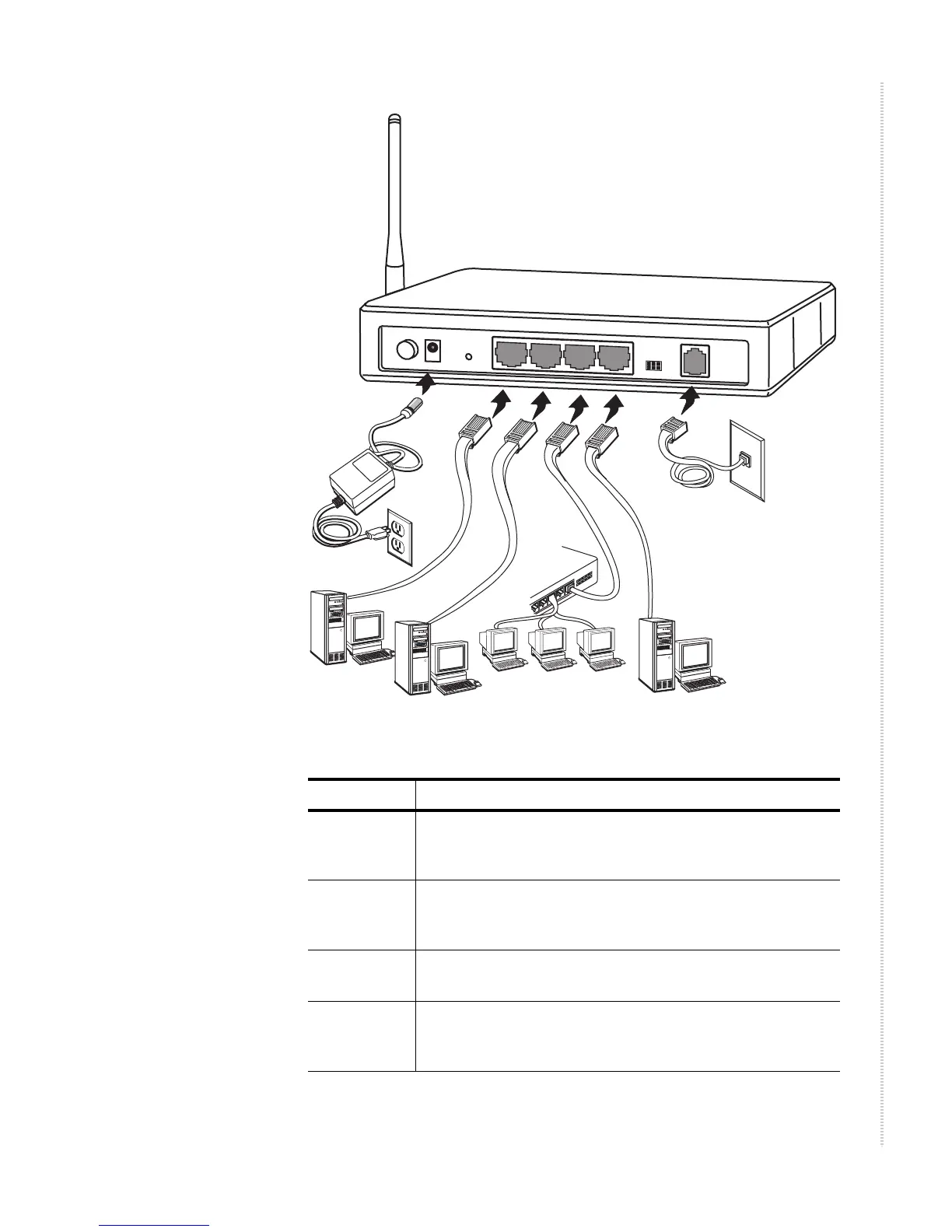

Figure 3: Hardware Installation
If the LEDs are illuminated as expected, the router is working properly.
Table 3: LED Indicators
This LED . . . Should be:
POWER Solid green to indicate that the device is turned on. If this
light is not on, check if the power adapter is attached to the
router and plugged into an AC power source.
STATUS Solid green to indicate that the router can communicate with
your ISP via ADSL, or flashing when the router is trying to
connect to your ISP.
ACTIVITY Flashing when the device is sending or receiving data over
the ADSL connection.
LAN Solid green to indicate that the device can communicate
with your PC via Ethernet, or flashing when the router is
sending or receiving data over Ethernet.
POWER
ON/OFF
LAN4
LAN3
LAN2
LAN1
RESET
DEFAULT
LINE
CONSOLE
05-17715
