6218-A2-ZB23-10
6218-I2 Wireless Router User
’s Guide
73
D
IAGNOSTICS
T
esting the DSL Connection
The diagnostics screen allows you to run diagnostic tests to check your DSL
connection. The screen shows test
results for three connections:
z
Connection to your local network
z
Connection to your DSL service provider
z
Connection to your Internet service provider
Use the T
est and T
est with OAM F4 buttons to retest if necessa
ry
.

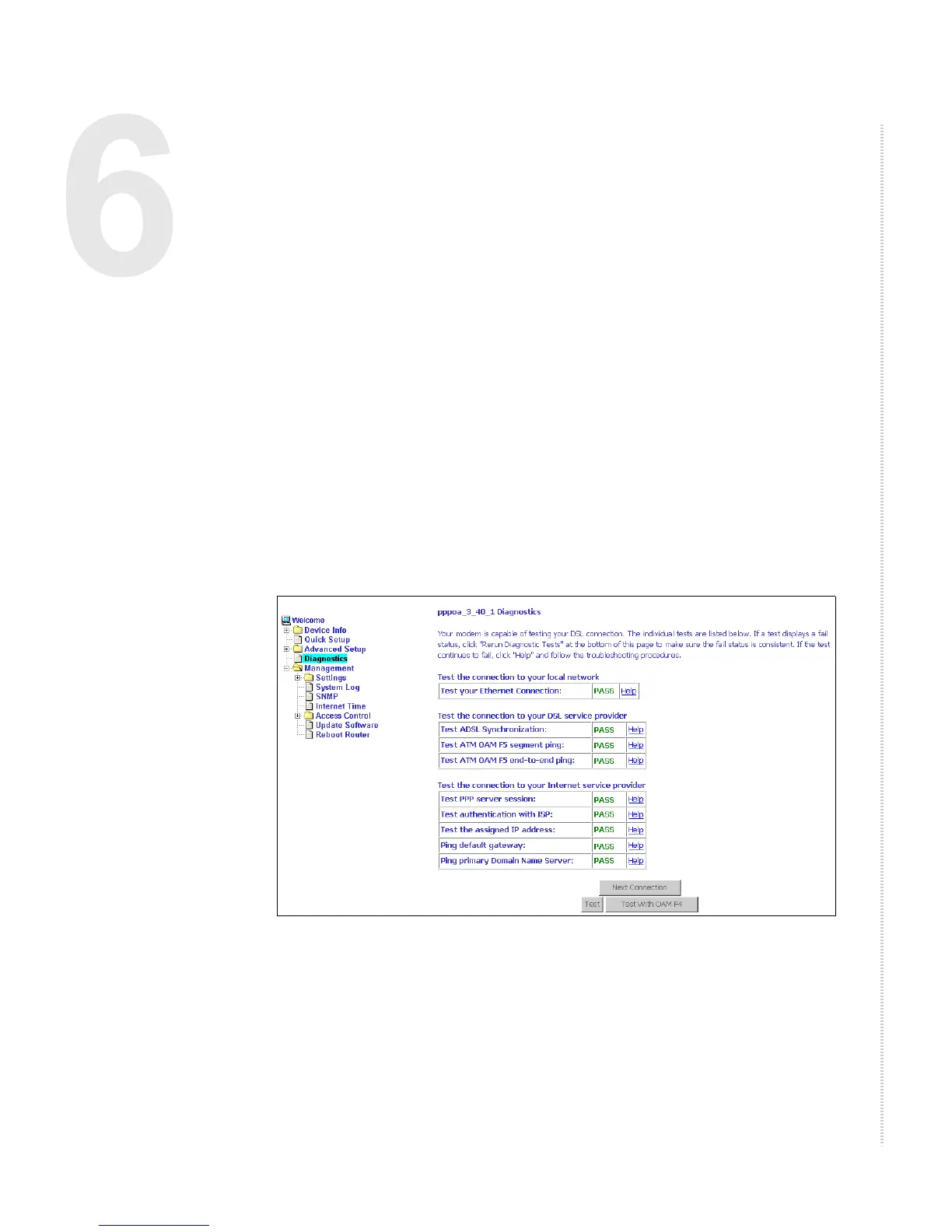

Figure 74: Dia
gnostics
72
