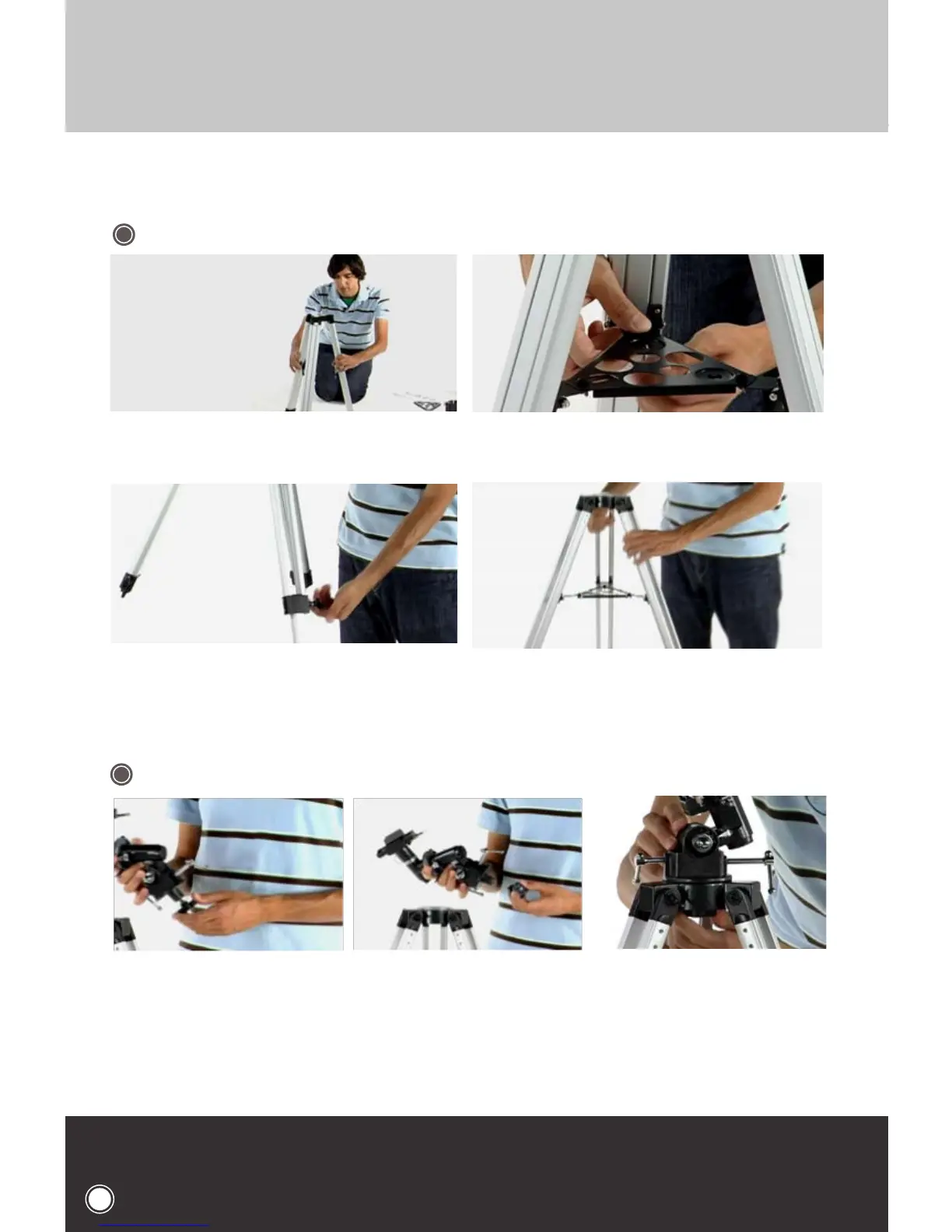

TRIPOD ASSEMBLY
STEP 1: Spread out the Tripod legs so that it can stand on its own. Attach the Accessory Tray to the three
connection points on the Tripod legs. Tighten using the thumbscrews on the attachment points.
STEP 2: Extend each leg one at a time using the large screws at the midpoint of the leg. Tighten each leg
at a height where you will be able to stand comfortably during the rest of assembly (just above waist-high).
Make sure they are tightened evenly so that the top of the Tripod is parallel to the ground.
ATTACHING THE EQUATORIAL MOUNT
STEP 1: Remove the Base Mount Screw from the bottom of the mount, leaving the attached washer in place.
Insert the mount into the hole in the middle of the tripod, and tighten underneath using the Base Mount Screw.
