STEP 2: Loosen the thumbscrew on the shorter cable. This is the Declination Adjustment cable. Slide it over
the exposed bolt directly opposite the Motor Drive assembly and tighten with the attached thumbscrew.
When in place, it should be facing outward, parallel to the ground.

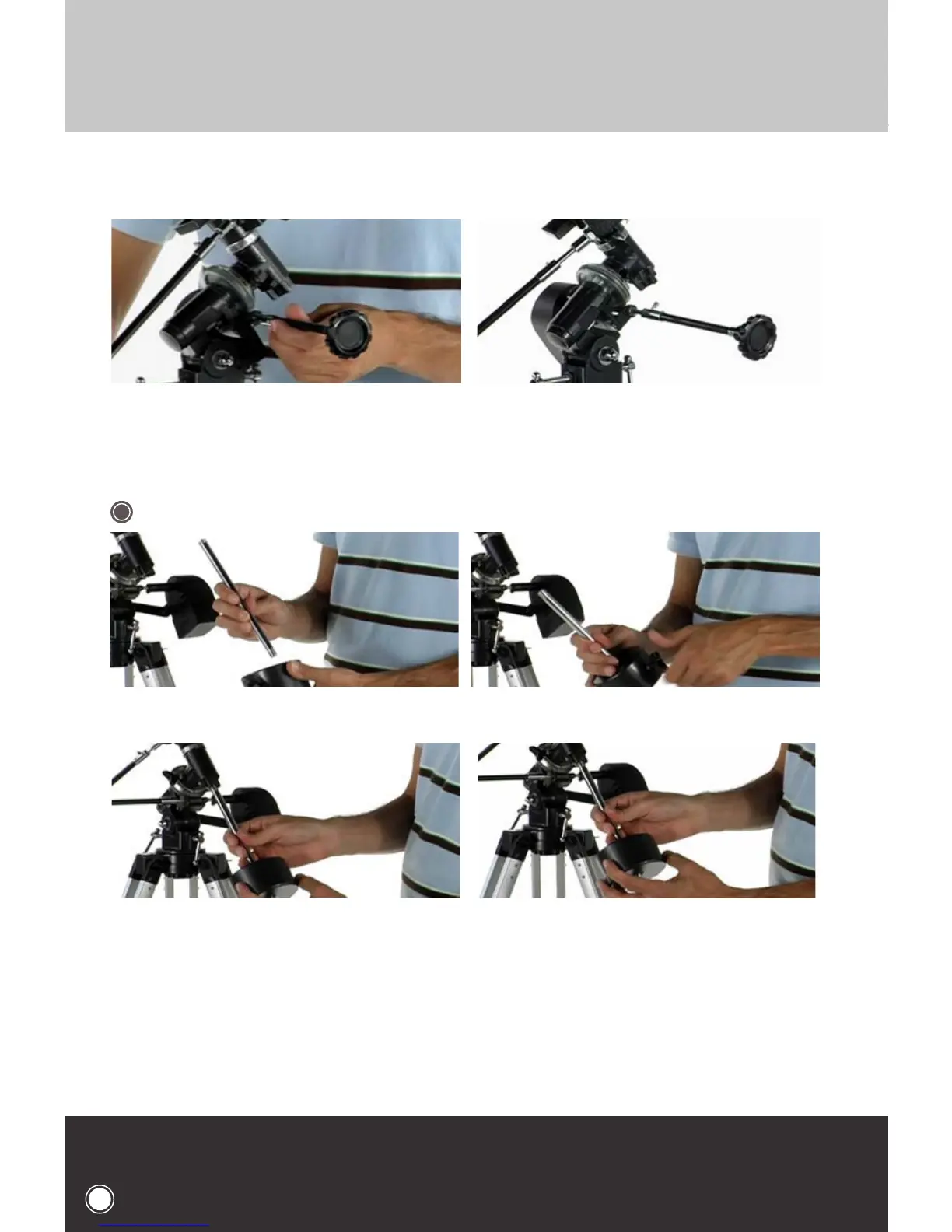

CONNECTING THE COUNTERWEIGHT
STEP 1: Slide the connecting rod through the Counterweight body and tighten using the attached thumbscrew.
STEP 2: Screw the connecting rod into the mount. When in place, it should not move and should be facing
downward at an angle.
ASSEMBLY OF YOUR
ZHUMELL ECLIPSE TELESCOPE
