Make sure the stove is disconnected from electrical power supply.
3. Remove the bolts from the protection plate, see picture 10.
4. Clean the area behind the protection plate with a soft brush and a vacuum cleaner.
5. Replace the protection plate.
6. Replace the fume chamber cover. Verify the seal between cover and stove chamber
is still in good condition.

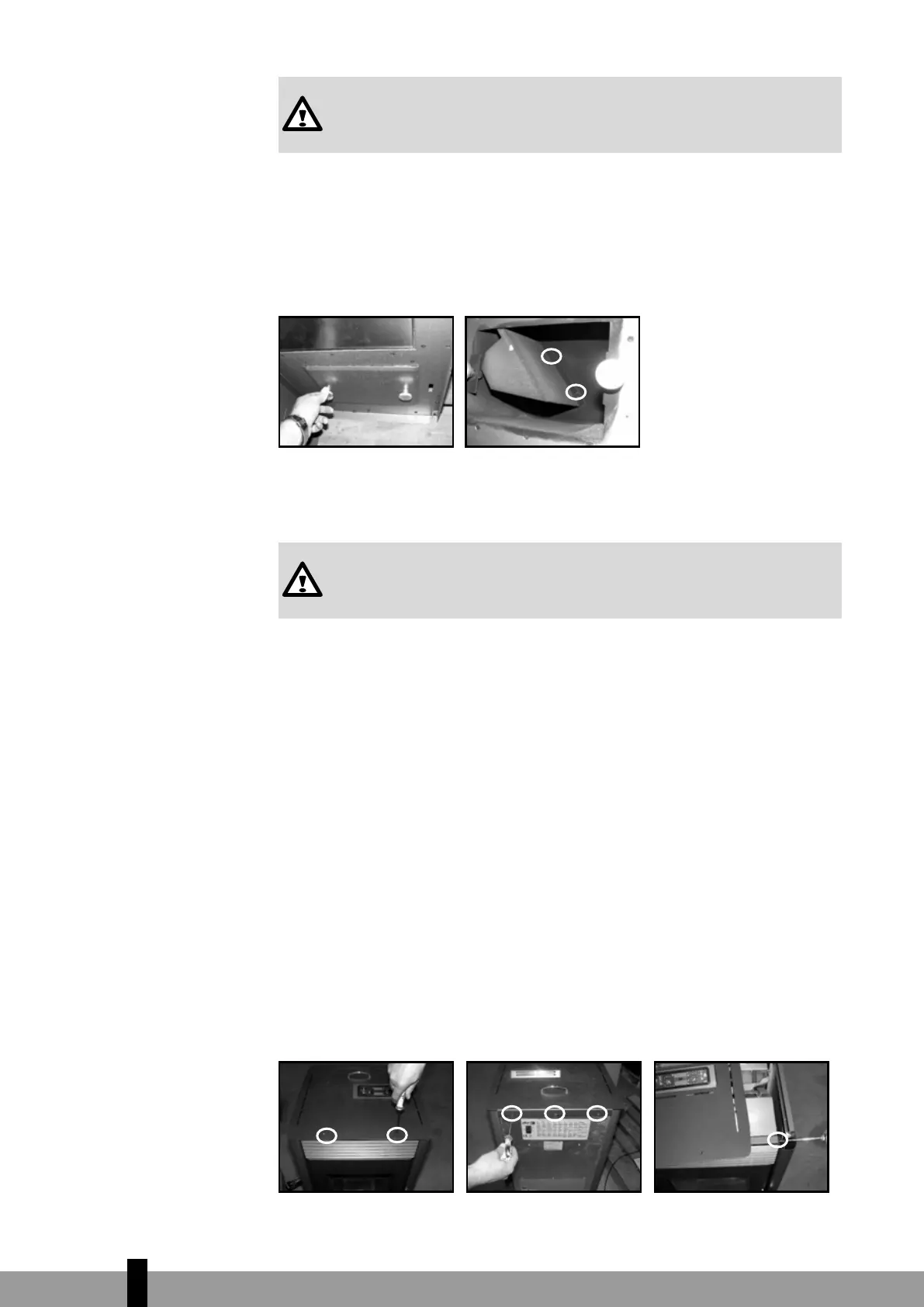

Picture 9
Picture 10
D.3.4 Taking off the top and side panels
For maintenance removal of the top and side covers is needed.
Make sure the stove is disconnected from electrical power supply.
1. Remove the 2 black screws on the top. See picture 11.
2. Remove the 3 screws at the rear side. See picture 12.
The top panel can now be removed from the top of the stove. The screwed connecti-
ons of the side panels can now be reached.
The electrical connection between display and circuit board is still in place. Take care
not to damage the cable whilst taking off the top panel.
3. Per side panel: Remove the 2 screws from the upper side of the side panels. Keep the
electrical connection between display and circuit board in place. See picture 13 and 14.
4. Open the fire door using the handle. See picture 15.
5. The stove can now be opened. See picture 16.
6. Per side panel: Remove the screw at the lower end. See picture 17.
7. At the back side, half way in height of the stove, 1 more screw needs to be removed
per panel. See picture 18.
8. The side panel can now be taken off by sliding it upwards. Store the panels care-
fully.
Picture 11
Picture 12
Picture 13
