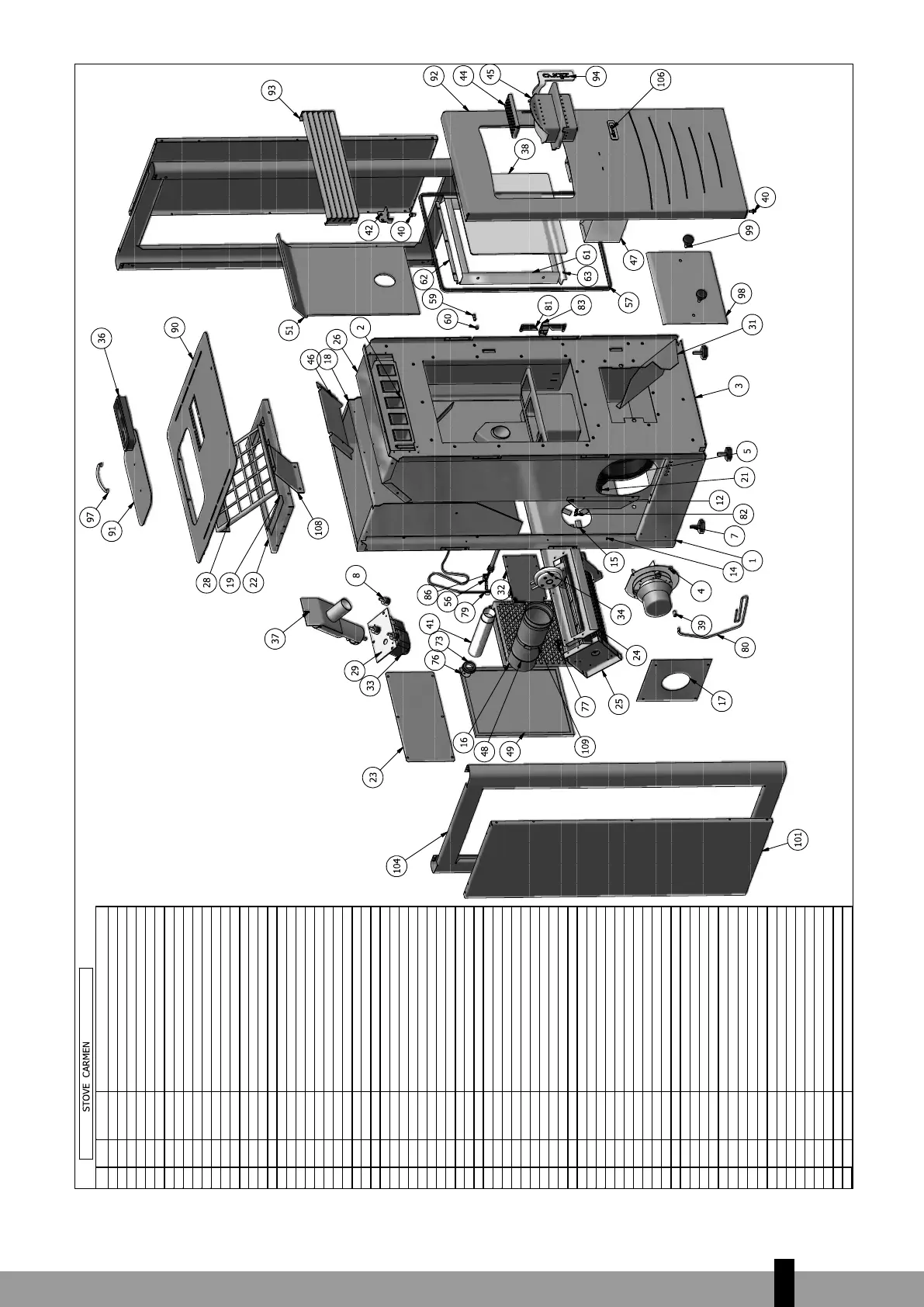

Zibro CARMEN - Page 85

85
REF
QTY CODE DESCRIPTION
1 1 VAN0403 BASE 2 1 VAN0390 HEATER ASS. 3 1 VAN0401 FRONT PANEL 4 1 COM0259 AACO EXHAUST FAN 5 1 COM0535 CAST IRON SCROLL 6 1 GHI0030 TERMINAL BOARD 7 4 VIT1128 ADJ. FEET BLACK M8x35 HEXAGONAL BASE 8 3 VIT1114 VIBRATION DAMPER 20x15 MF/M6
11 1 VAN0217 PRESSURE SWITCH TUBE SUPPORT 12 1 VAN0501 FIREBRAKING CARTER 13 1 VAN0505 TANK SUPPORT R-L 14 1 VAN0505SX
TANK SUPPORT R-L
15 1 VAN0503 FAN COVER 16 1 VAN0506 CARD GUARD 17 1 VAN0515 EXHAUST FAN CARTER 18 1 VAN0590 PELLET TANK ASS. 19 2 VAN0520 TOP TANK SMALL BRACKET 20 1 VAN0507 CARD SUPPORT 21 1 VAN0502 AIR CONVEYER CARTER 22 1 VAN0512 TANK TOP COVER 23 1 VAN0521 INSPECTION PANEL 24 1 VAN0504 FAN SUPPORT CARTER 25 1 COM0237 TANG. FAN TG80/1 270/35 26 1 VAN0522 CARTER TOP 28 1 VAN0513 TANK HAND GUARD 29 1 VAN0509 MOTOR REDUCER SUPPORT 31 1 VAN0315 LOWER SMOKE DEFLECTOR 32 1 COM0231 ELECTRONIC CARD 33 1 COM0232 MOTOR REDUCER MR9-11-5RPM 34 1 COM0233 PRESSURE SWITCH 03800023 35 1 COM0235 THERMOSTAT AND MANUAL RESET 80' 36 1 COM0266 HORIZ. CONSOLE+ABS+ SERIG. NEUTRAL 37 1 VAN0290 SHORT SCREW ASS. 38 1 VAN0210 PYROCERAM 294x294x4 39 1 VAN0216 PROBE SUPPORT 40 2 VAN0220 DOOR PIN 41 1 VAN0316 AIR INLET PIPE EXTENSION 42 1 VAN0411 DOOR SUPPORT 44 1 VAN0604 BURNING POT GRID 45 1 VAN0690 BURNING POT ASS. 46 1 VAN0519 INSULATION HOLDER 47 1 VAN0495 ASH TRAY ASS. 48 1 COM0534 TUBE 80x225 WITH GASKET 49 1 COM0533 ALUMINIUM FILTER 300x250 51 1 VAN0306 ANTERIOR DEFLECTOR 56 1 COM0234 HEATING ELEMENT 9.5x150 W250 V230 LC200 57 1 COM0244 GASKET 06371 INT.L 346x507 THERMIC 50 59 1 SOL0206A AVP PIN 8x24 M6 + TC BURNISHED 60 1 SOL0206B AVP BUSHING T.8x10.5 BURNISHED 61 2 VAN0714 SIDE PANELS 62 1 VAN0712 BOTTOM GLASS STOP 63 1 VAN0713 TOP GLASS STOP 73 1 VAN0222 AIR SUCTION REDUCTION 76 1 VAN0226 REDUCTION LID 77 3 COM0213 FAIRLEAD DIAM 16 cod. SB-16 78 4 COM0215 SMALL CABLE SUPPORT (3625) 79 1 COM0238 RESISTANCE THERMOMETER CM46911 80 1 COM0239 THERMOCOUPLE 4 CM46912 (SMOKE) L=1000 81 1 COM0240 CARD CONSOLE FLAT CABLE L=1200 82 6 COM0242 NYLON CARD HOLDER ART.DBB3 83 2 COM0249 FLAT CABLE HOLDER 84 2 COM0251 LARGE CABLE SUPPORT (3630) 85 1 COM0253 FASTON COVER MA d.6.3 86 1 COM0401 SILICON PIPE 7x4 87 1 COM0248 ROUND CABLE HOLDER HI8.8 L635 RH8 90 1 VAN0418 LID 91 1 VAN0431 TANK LID 92 1 VAN0497 FAIR DOOR ASS. 93 1 VAN0496 FINS ASS. 94 1 MPN0225 ZIBRO HANDLE 95 1 VAN0433 CONTROL BOARD 97 1 JOL0675 HANDLE SIZE 96 98 1 VAN0704 BOTTON CLOSING PANEL 99 2 VIT1129 KNURLED HANDLE
101
2 VAN0440 PANEL 860x348
104
2 VAN0439 METAL SIDE PANEL 970x476
106
1 ZIB0640 ADHESIVE ZIBRO LABEL
108
1 VAN0525 CARTER AIR CLOSE
109
1 COM0250 STAINLESS STEEL BAND – BAND 9 70x90
>
