Maintenance Report: Tube Head Adjustment

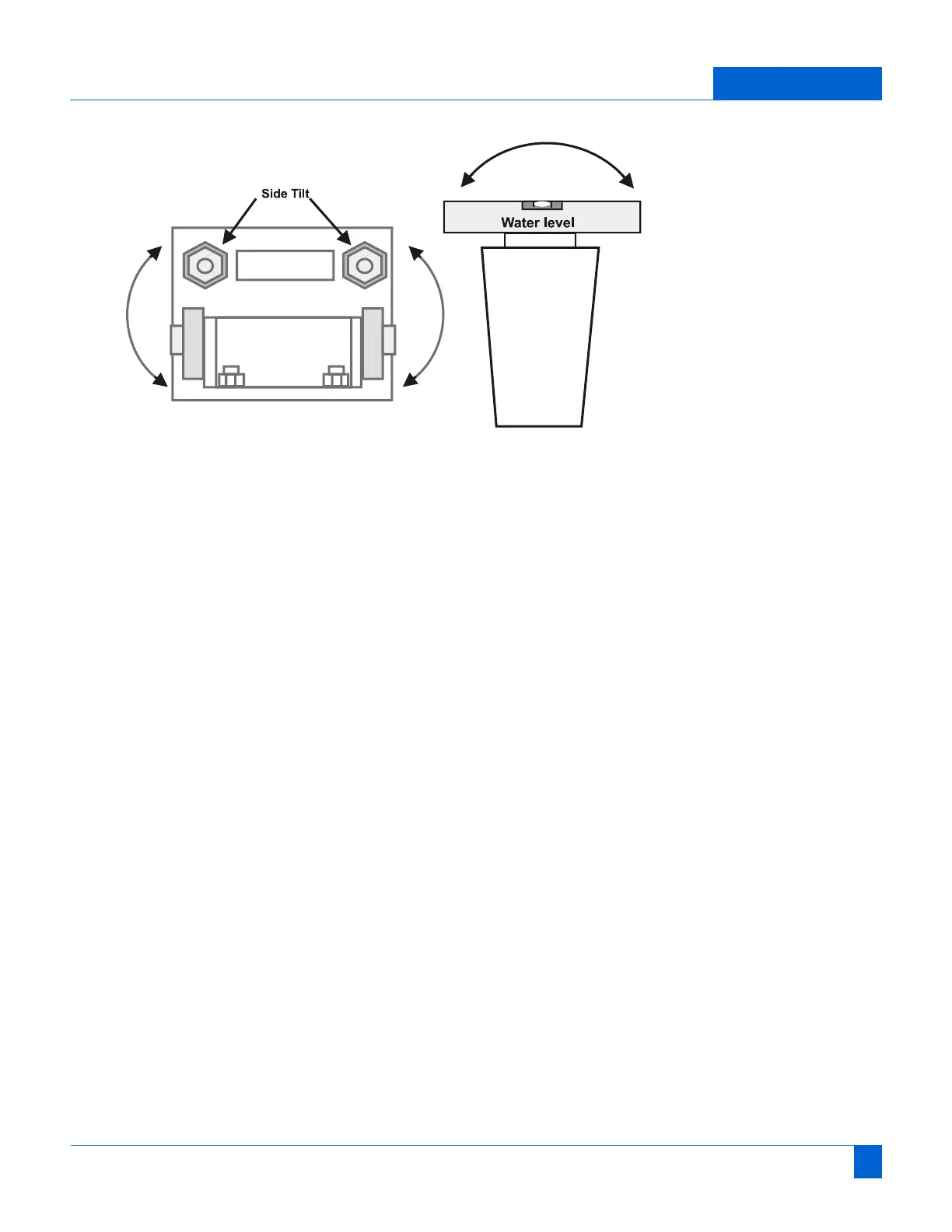

Fig. 16 Side tilt adjustment
8. Now that the I.I , C-profile and the generator mounting plate are level we must
complete the adjustment of the Generator assembly.
9. Remove collimator assembly and place next to the generator housing.
10. With the generator cover removed, place the level on the generator edge (Number
4 in figure 15) and check the vertical tilt.
11. If the vertical tilt is not level then loosen the Cam bolt nut and turn the cam bolt to
raise or lower the tilt of the tube. Retighten the Cam bolt when you have leveled
the generator.
