Ziehm Imaging, Inc. Vision Installation Manual MAN 06-0015, Rev. A Page 28
Maintenance Report: Tube Head Adjustment

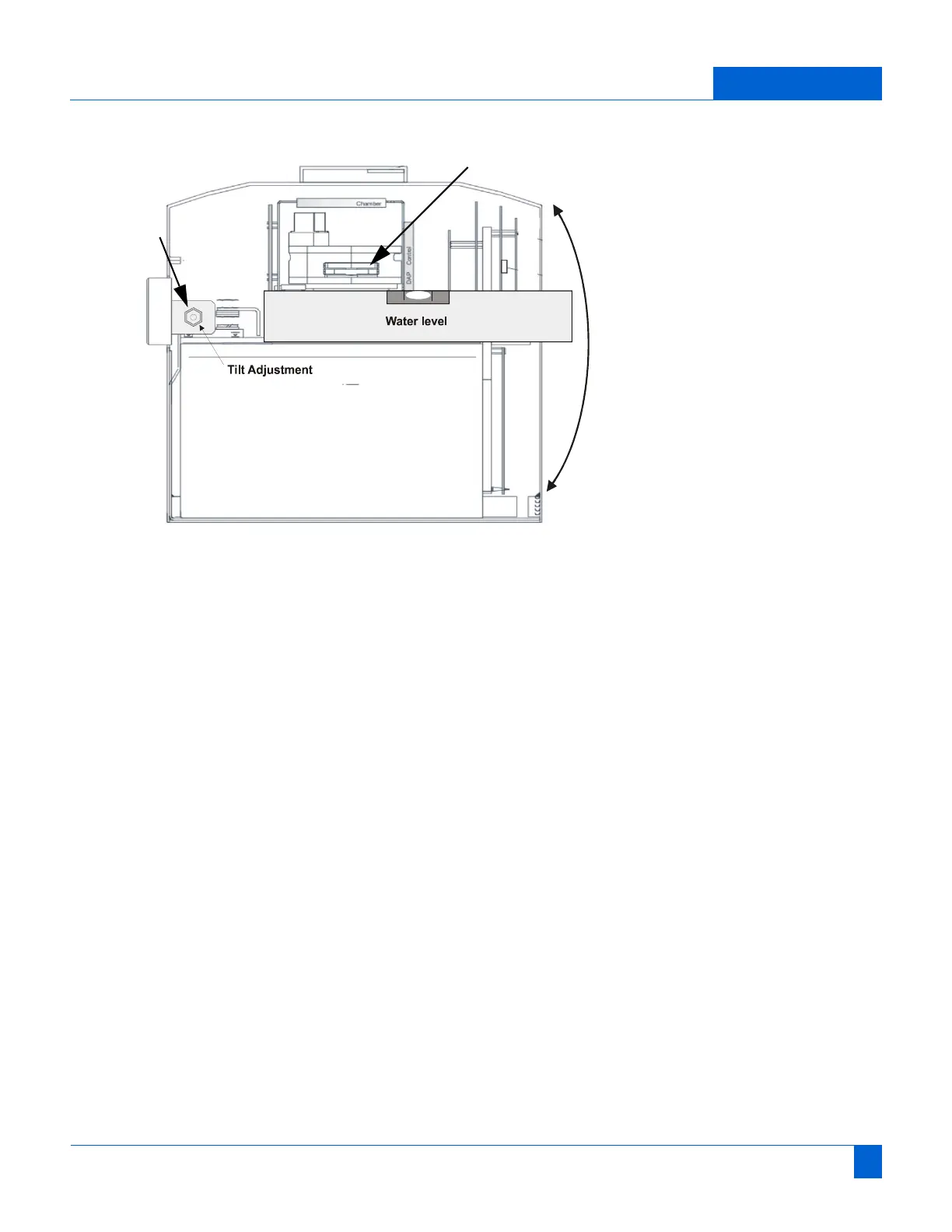

Fig. 17 Vertical tilt adjustment
Central Beam Adjustment:
1. Plug in the power cord into the wall power outlet and turn on the C-arm.
WARNING: To avoid exposure to radiation always use appropriate radiation
safety measures during testing.
2. Place the central beam testing device on the top of the generator output port and
center to the mount. See Figure 17
3. Check if the device is in the right position, by starting radiation and viewing
image on the monitors.
4. The large black area in the image should look like a circle and the smaller center
black must be as close to center as possible. See Figure 18 below.
5. If the generator is not correctly adjusted as seen in Figure 18 use the tilt and side
adjustment outlined above in previous section of this document for proper align-
ment of the generator central beam.
Vision Track Colimeter
Cam Bolt
