Maintenance Report: Tube Head Adjustment

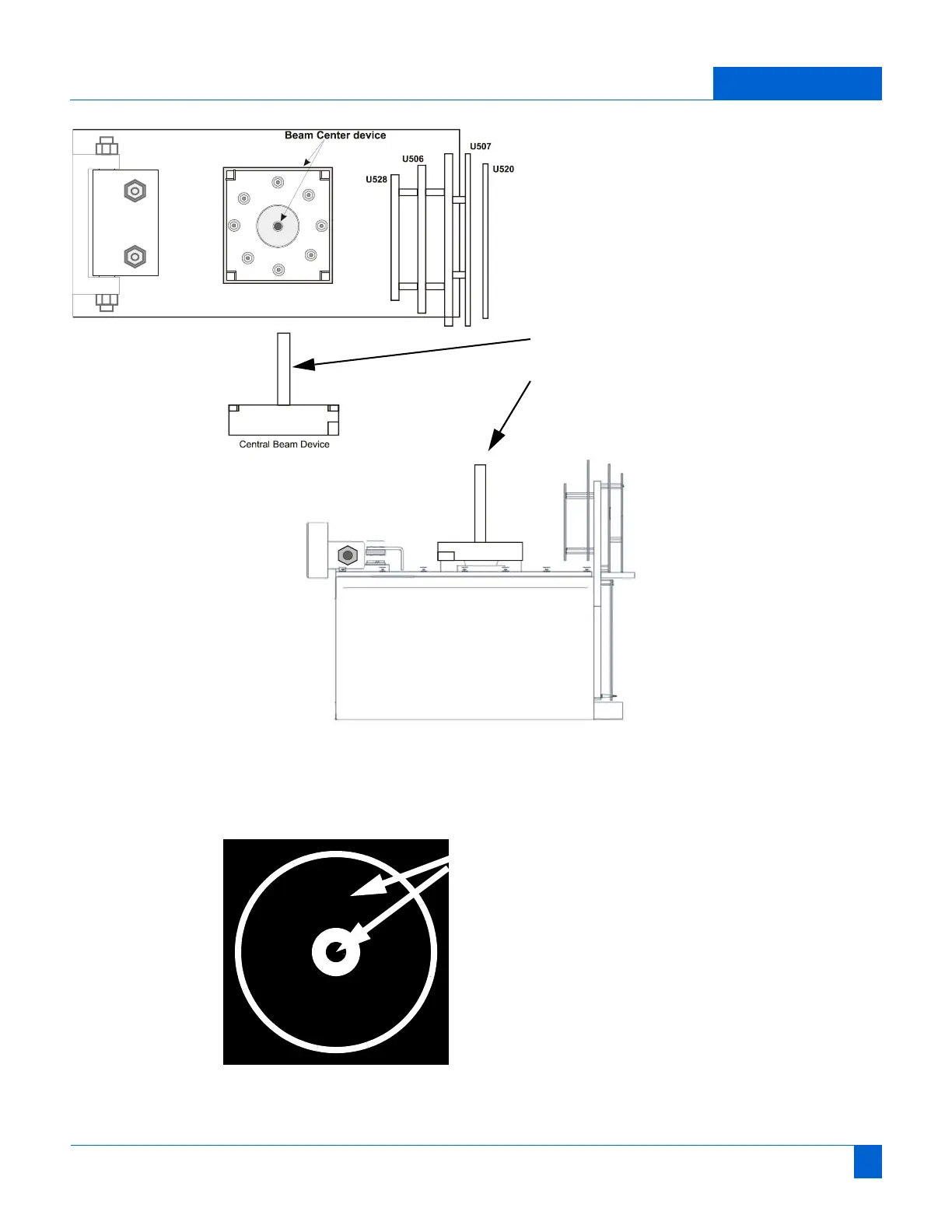

Fig. 18 Correct adjustment of generator beam center.
Fig. 19
Beam centering
device
The vertical tilt is correctly
adjusted when the black
areas are almost centered in
the image.
