ZiLOG S3F8S19

UM026803-0816 Start the S3F8S19 Ledblink Sample Program
S3F8S19 Development Kit
User Manual
8
4. From the Build menu, select Set Active Configuration to open the Select Configura-
tion dialog box.
5. Select
Debug, then click OK to close the Select Configuration dialog box.
6. From the
Project menu in ZDS II, select Settings to open the Project Settings dialog
box. In the Project Settings dialog box, click the
Debugger tab.
7. On the Debugger page, select
S3F8S1X_FlashIspII from the Target list, then select
S3FlashIspII from the Debug Tool drop-down menu, as indicated in Figure 9.

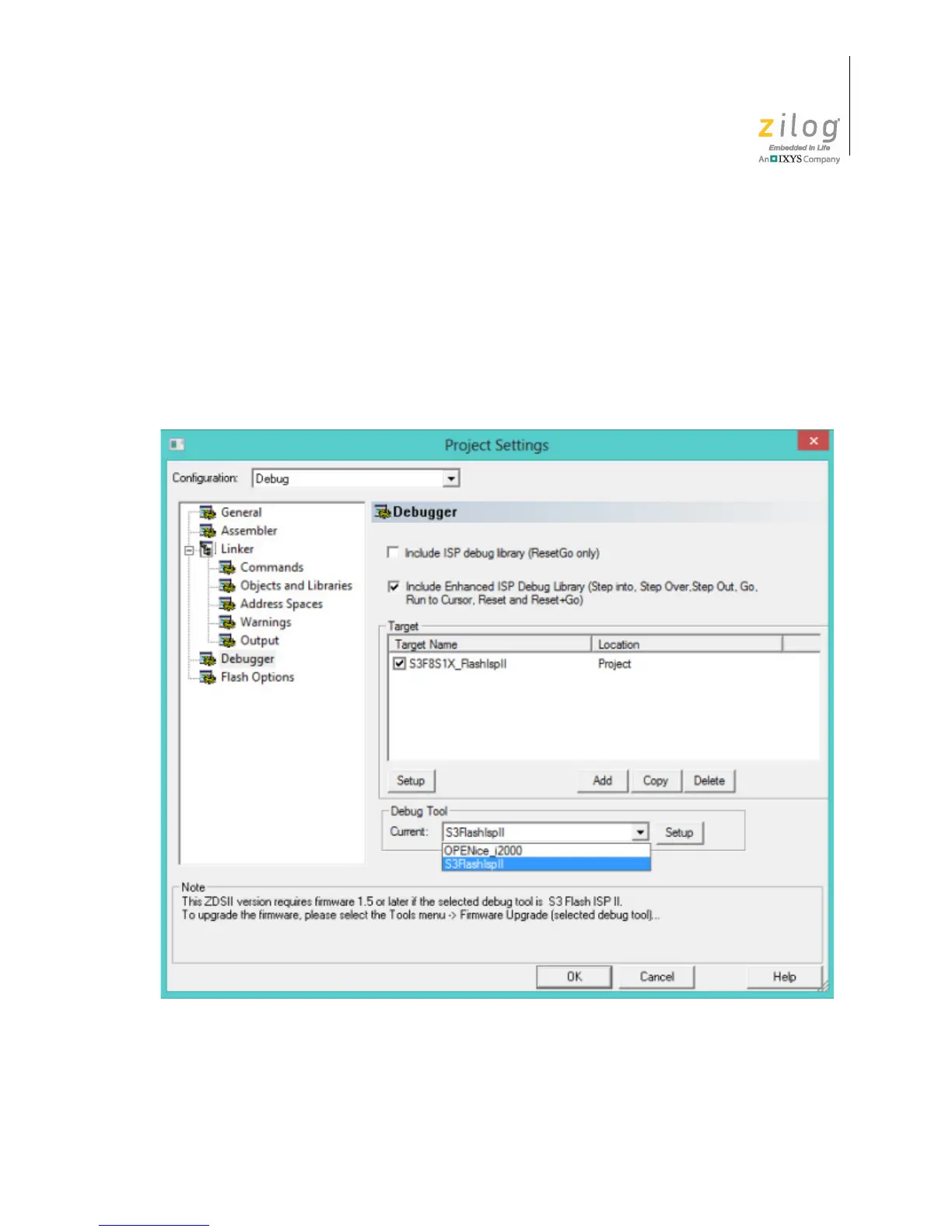

Figure 9. Select the Target and Debug Tool
