UM026803-0816 Trouble Shooting Tips
S3F8S19 Development Kit
User Manual
10
13. To run the application, select Reset+Go from the Debug menu, as indicated in
Figure 11. As a result, LEDs D2, D3, and D4 will blink in sequence.
Trouble Shooting Tips
The following trouble-shooting tips are useful when starting the S3F8S19 Ledblink sam-
ple program.
•
Ensure that the LED indicator on the S3 Flash ISP II lights up upon connecting to the
USB port of your PC.
•
Navigate to Project → Settings → Debugger → Debug Tool → Setup. Upon click-
ing
Setup on the Setup USB Communication dialog box, verify that S3FlashIspII is
displayed.
•
Remove and reconnect the ISP II on the USB port of your PC.
•
Refer to Table 1 on page 12 to learn more about the operations and power options of
the S3F8S19 Development Board.

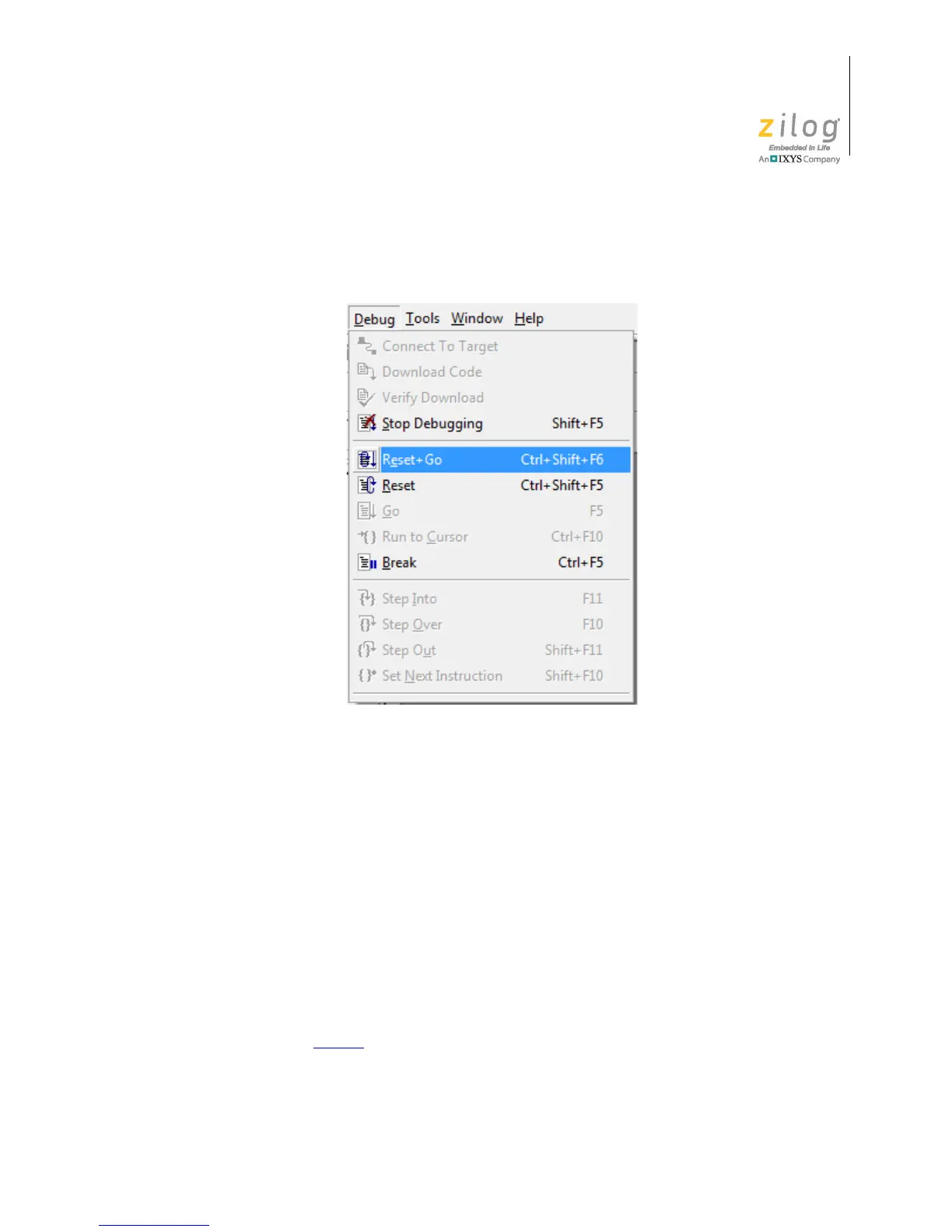

Figure 11. Select Reset+ Go from the Debug Menu
