ZiLOG Z80 Handbook

SET B
, (
IX + DI SET B OF LOCATION (IX + DI
BYTE 0
BYTE 1
BYTE 2
BYTE 3
1 1 0 1 1 1 0 1
1 1 0 0 1 0 1 1
D
1 1 B 1 1 0
} OP CODE
D VALUE
11211102 - OP CODE
B •BITCODE 0-7

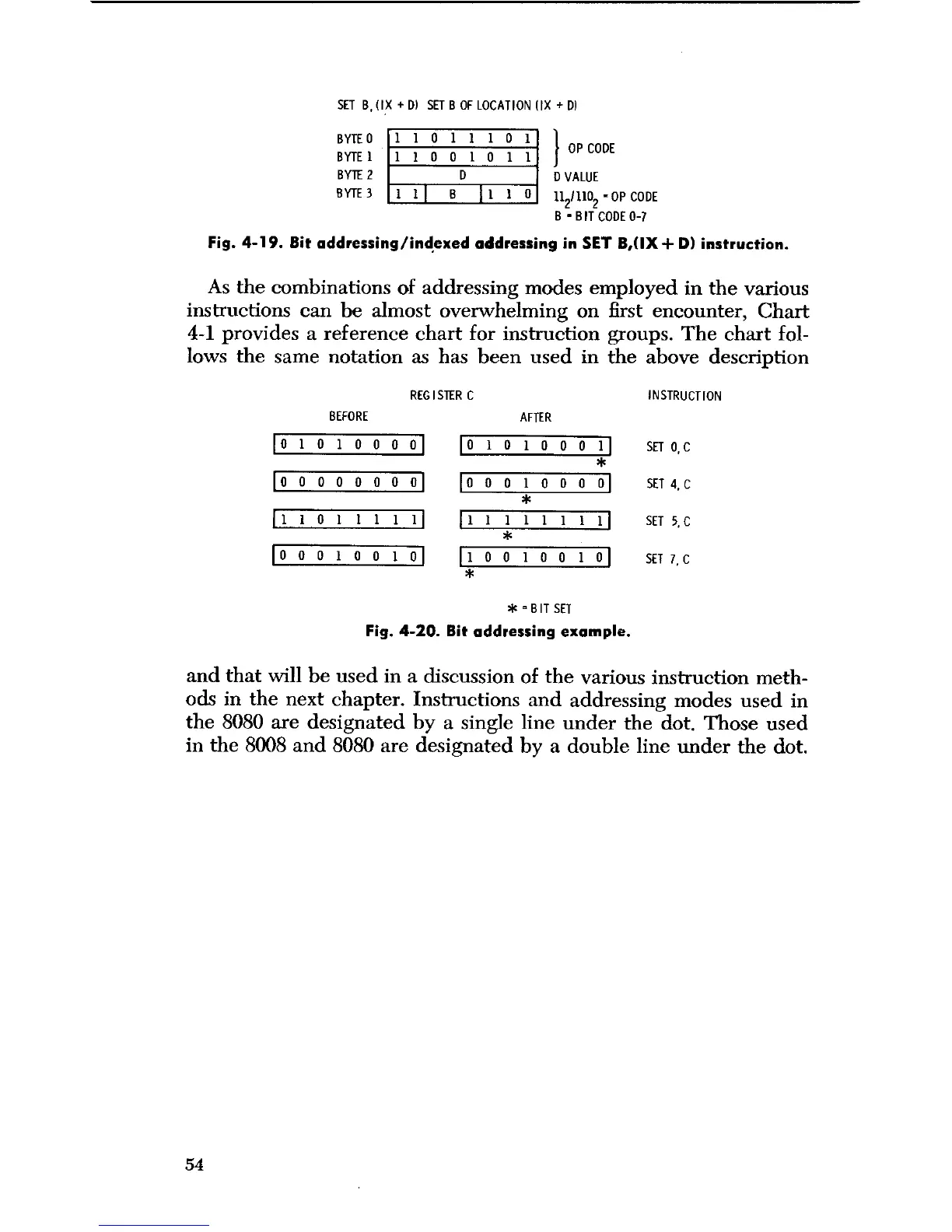

Fig. 4 -
19. Bit addressing
/ indexed addressing in SET B
,(
IX+ D) instruction.
As the combinations of addressing modes employed in the various
instructions can be almost overwhelming on first encounter, Chart
4-1 provides a reference chart for instruction groups. The chart fol-
lows the same notation as has been used in the above description
BEFORE
REGISTER C
AFTER
t
o 1 0 1 0 0 0 0
OOOOOOOo
1 1 0 1 1 1 1 1
1
0 0 0 1 0 0 1 0
01010001
t
o 0 0 1 0 0 0 0
*
1 1 1 1 1 1 1 1
*
1 0 0 1 0 0 1 0
*
* - BIT SET
Fig. 4 - 20. Bit addressing example.
INSTRUCTION
SET 0, C
SET 4, C
SET 5, C
SET 7, C
and that will be used in a discussion of the various instruction meth-
ods in the next chapter. Instructions and addressing modes used in
the 8080 are designated by a single line under the dot. Those used
in the 8008 and 8080 are designated by a double line under the dot.
54

ZiLOG Z80 Specifications

General

Manufacturer	ZiLOG
Introduction Year	1976
Clock Speed	2.5 MHz to 20 MHz
Data Width	8-bit
Address Width	16-bit
Instruction Set	Z80
Transistor Count	8, 500
Package	40-pin DIP
Category	Microprocessor
Memory Address Space	64 KB
Voltage Supply	5V
