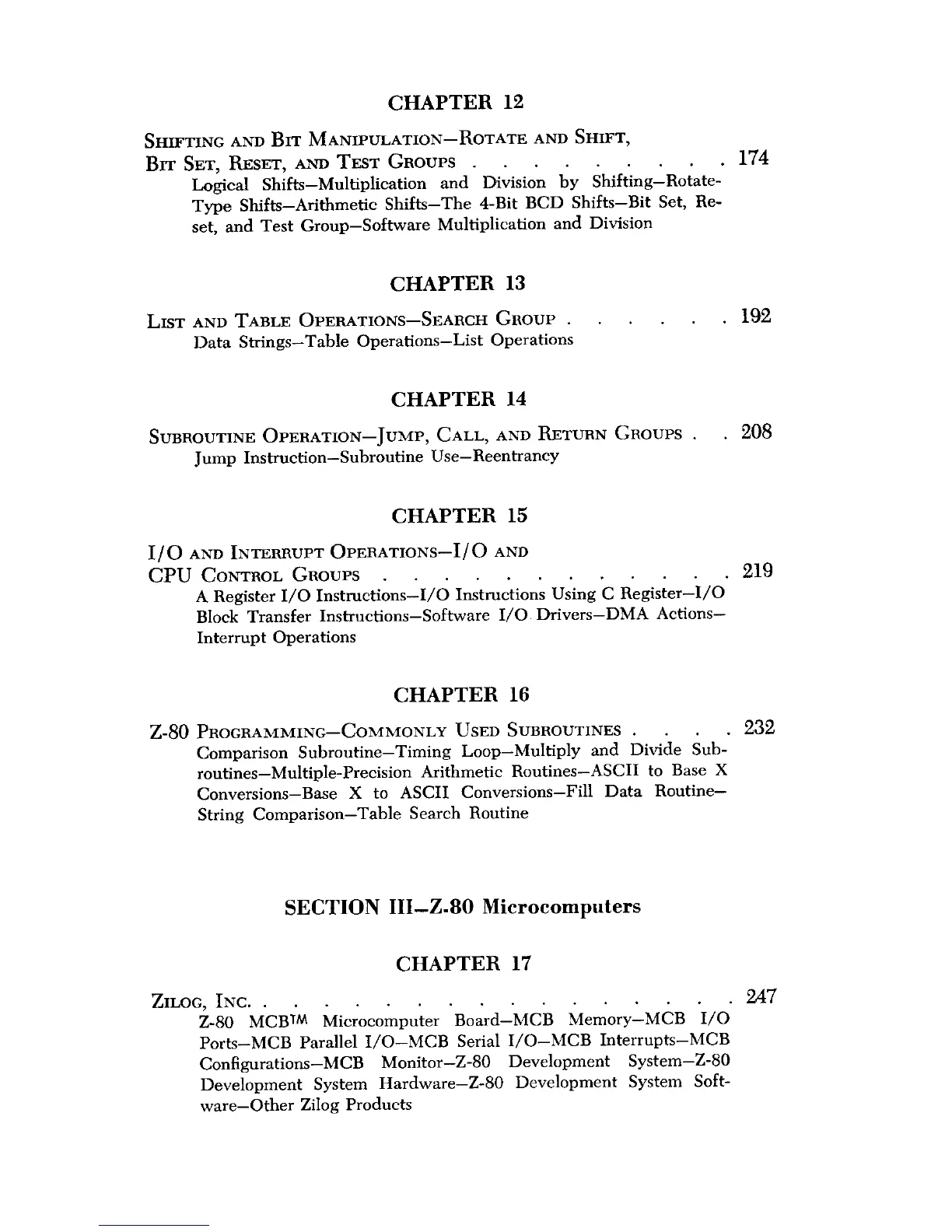

ZiLOG Z80 Handbook

CHAPTER 12
SHIFTING AND BIT MANIPULATION-ROTATE AND SHIFT,
BIT SET, RESET, AND TEST GROUPS . . . . . . . . . 174
Logical Shifts-Multiplication and Division by Shifting-Rotate-
Type Shifts-Arithmetic Shifts-The 4-Bit BCD Shifts-Bit Set, Re-
set, and Test Group-Software Multiplication and Division
CHAPTER 13
LIST AND TABLE OPERATIONS-SEARCH GROUP
Data Strings-Table Operations-List Operations
. 192
CHAPTER 14
SUBROUTINE OPERATION-JUMP, CALL, AND RETURN GROUPS . . 208
Jump Instruction
-
Subroutine
Use-Reentrancy
CHAPTER 15
1/0 AND INTERRUPT OPERATIONS-I/O AND
CPU CONTROL GROUPS .
A Register I/O Instructions-I/O Instructions Using C Register-I/O
Block Transfer
Instructions
-Software I/O Drivers-DMA Actions-
Interrupt Operations
219
CHAPTER 16
Z-80 PROGRAMMING-COMMONLY USED SUBROUTINES . . 232
Comparison Subroutine-Timing Loop-Multiply and Divide Sub-
routines-Multiple-Precision Arithmetic Routines-ASCII to Base X
Conversions-
Base
X to ASCII Conversions-Fill Data Routine-
String Comparison-Table Search Routine
SECTION
III-Z.80 Microcomputers
CHAPTER 17
ZILOG, INC .. . . . . . . . . . . . . . . . 247
Z-80 MCBTM Microcomputer Board-MCB Memory-MCB I/O
Ports-MCB Parallel I/O-MCB Serial I/O-MCB Interrupts-MCB
Configurations-MCB Monitor-Z-80 Development System-Z-80
Development System Hardware-Z-80 Development System Soft-
ware-Other Zilog Products

ZiLOG Z80 Specifications

General

Manufacturer	ZiLOG
Introduction Year	1976
Clock Speed	2.5 MHz to 20 MHz
Data Width	8-bit
Address Width	16-bit
Instruction Set	Z80
Transistor Count	8, 500
Package	40-pin DIP
Category	Microprocessor
Memory Address Space	64 KB
Voltage Supply	5V
