ZINCKER VAULTA K1 - Double check door dimensions; Backset dimension check; Door thickness check; Door hole diameter check

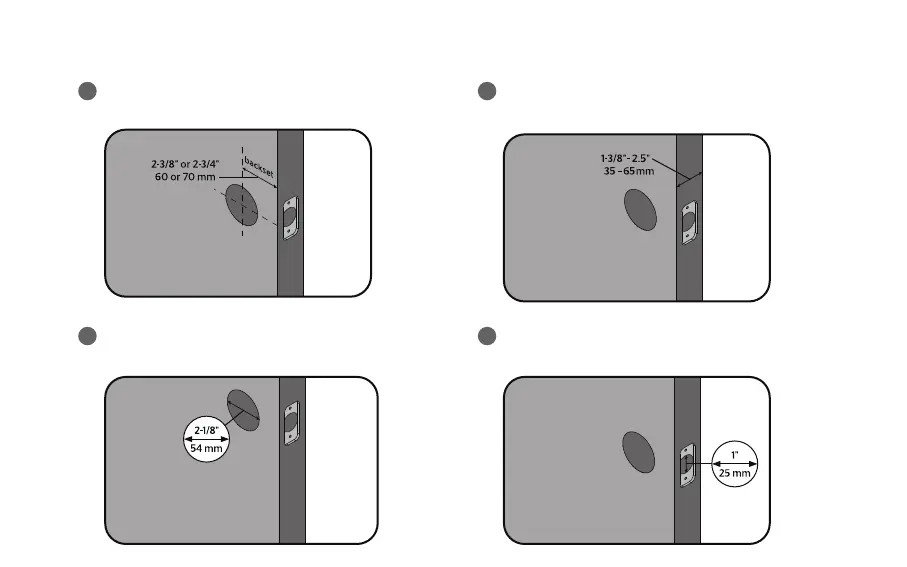

2. Double check door dimensions
Backset: measure to confirm that the
backset is either 2-3/8" or 2-3/4" (60 or 70mm).
Thickness: measure to confirm that the door
is between 1-3/8" to 2.5" (35mm to 65mm) thick.
Hole in the door: measure to confirm
that the hole in the door is 2-1/8" (54mm).
Hole in the door edge: measure to confirm
that the hole in the door edge is 1" (25mm).
1 2
3 4
8
