Zingo X300 - INSTALLING THE HANDLEBAR; Handlebar Assembly Steps

Place the
handlebar onto
the handle stem
Tighten the
handlebar knob
4 5
1
8
6
9
4
7
Front wheel
Rear wheel
3
2

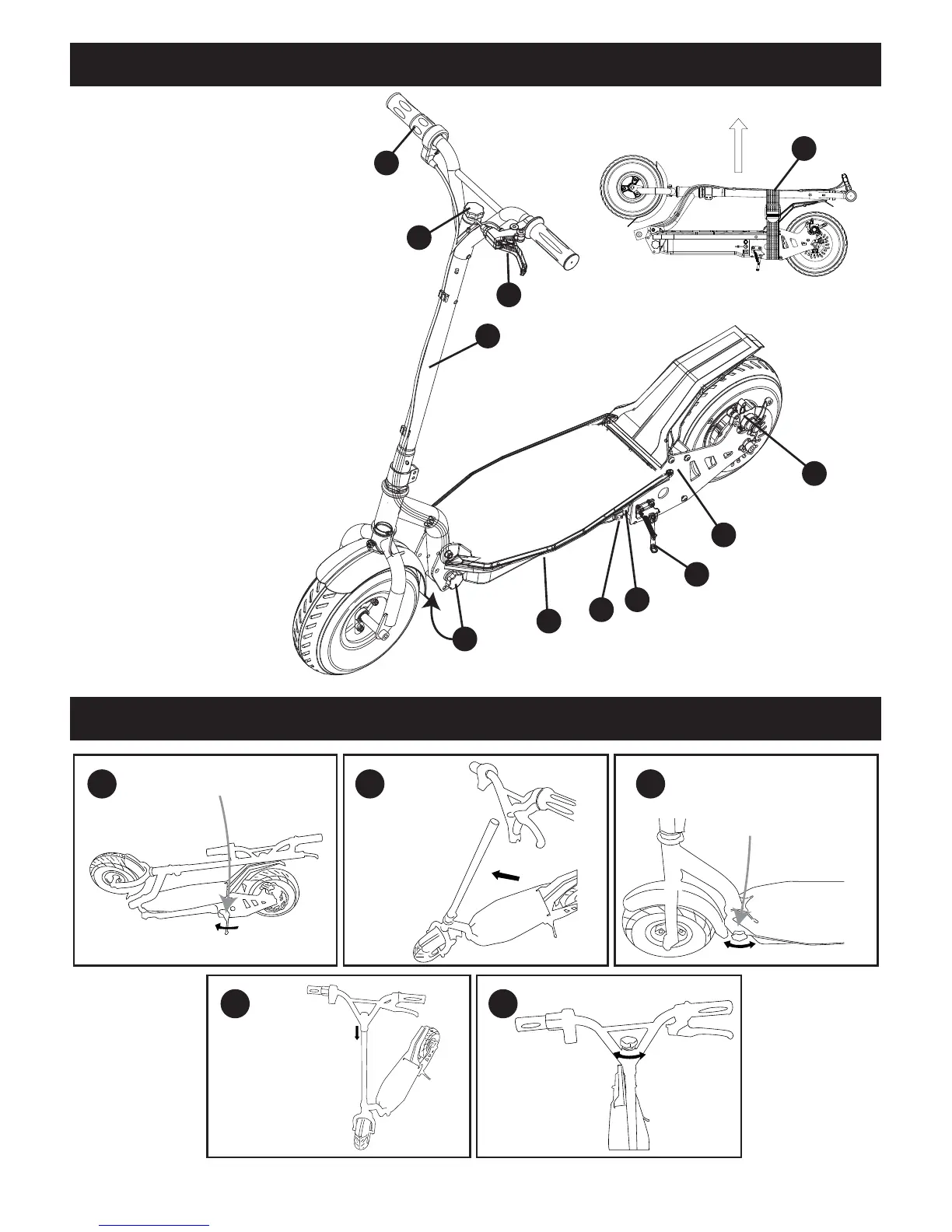

INSTALLING THE HANDLEBAR
Put down the foot stand
Open the scooter
fully so that the
fold mechanism
holes line up
Place the fold mechanism
pin fully into the hole and
tighten the knob
FAMILIARIZING YOURSELF WITH YOUR ZINGO X300
2.
1. Throttle
2. Handlebar tightening knob
3. Hand-operated rear brake
4. Handle stem
5. Brake caliper
6. 300W Motor
7. Foot stand
8. Fuse/Reset
9. On/O switch
10. Rechargeable 24V Battery
11. Fold mechanism
12. Carry strap
1 2 3
12
10
11
5
