ZKTeco HBL400 User Manual

3

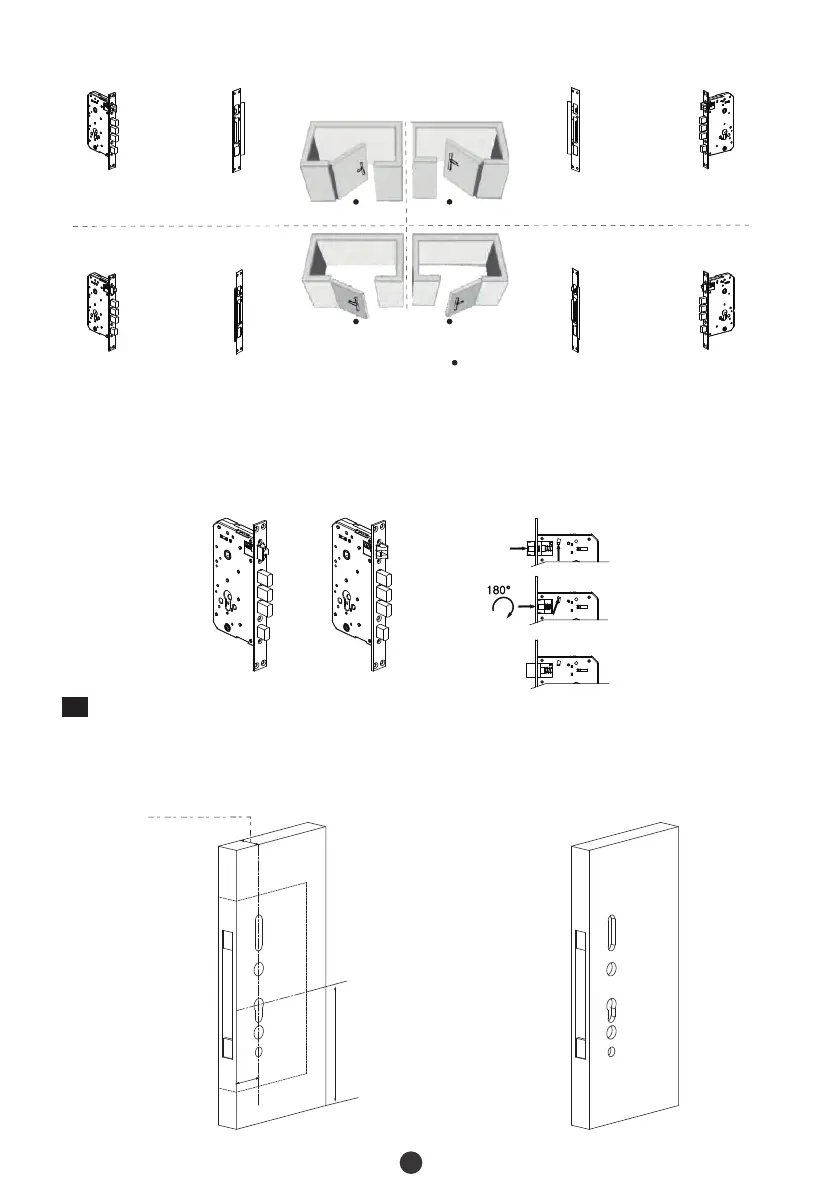

Adjust the Direction of Latch (if needed)
Push the reverse block in upward direction.
Push the bolt of the latch into the mortise.
1)
2)
MortiseStrikePlateMortise
MortiseStrikePlateMortise StrikePlate
StrikePlate
User Location
Left Inward
Right Inward
Left Outward
Right Outward
Rotate the latch bolt to 180° inside the mortise, and release it.
3)
Place the installation template at the desired height.
Mark the holes to be drilled and drill the marked locations.
1)
2)
2
Drill Holes on the Door
Desired height
Door thickness
45 to 60mm
Backset
60mm
(r e c om me n de d up to
100cm to 120cm, as it is fit
for someone whose height
is 130cm to 200cm)
