ZKTeco HBL400 User Manual

5
5

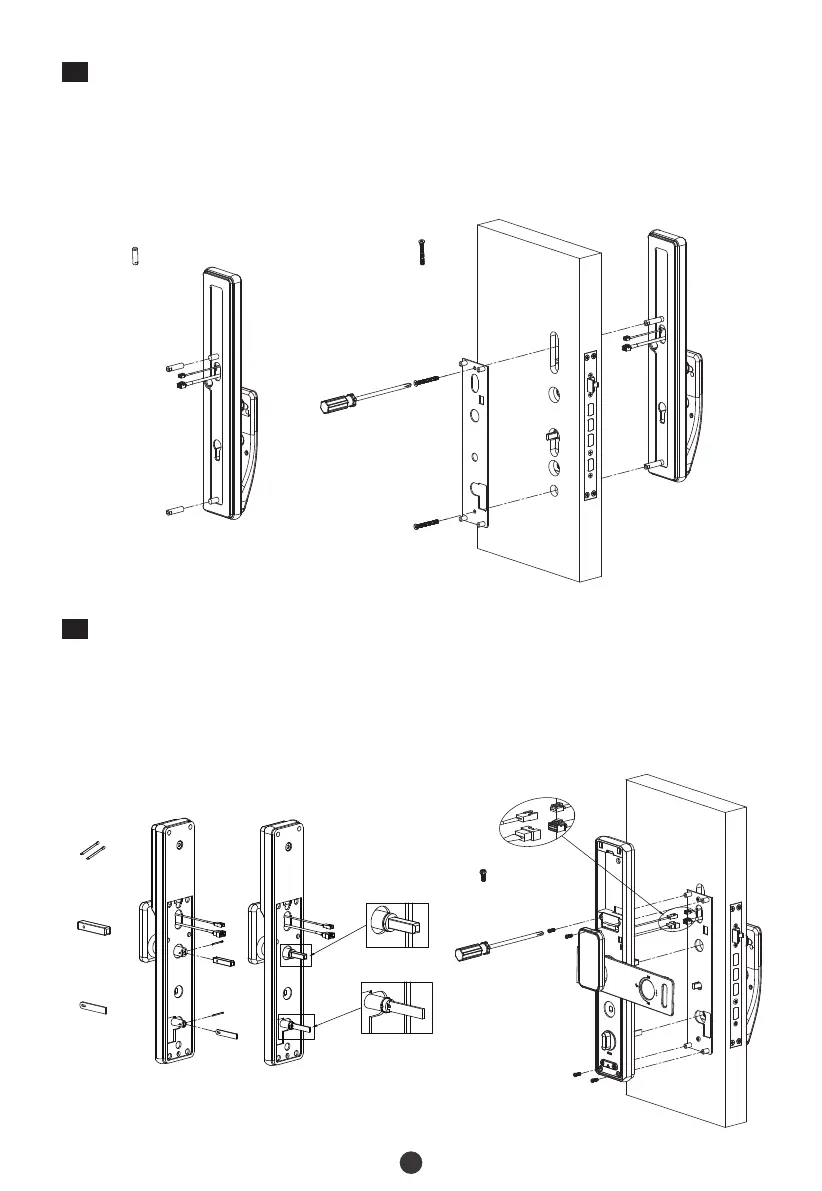

Install Studs and Outdoor Unit
Stud
Screw C
Install the studs on the back of outdoor unit.
Pass the outdoor unit cable through the upper most cable hole.
1)
2)
Attach the Outdoor unit to the door by inserting the studs through the drilled holes.
Place the Mounting Plate on the inside door and use Screw C to secure them.
3)
4)
6
Install Indoor Unit
Install Spindle A and Spindle B with Metal Pin.
Connect the cable to the port on the Indoor Unit.
1)
2)
Place the Indoor Unit properly on the Mounting Plate. Then use Screw D to secure the
Indoor Unit.
3)
Screw D
Spindle A
Spindle B
Metal Pin
