ZKTeco PL10 Installation Guide

Door Preparation
Note: The standard lock includes 2 mounting hardware package only, which is used for the door
thickness of 39-46mm and 47-54 mm separately.

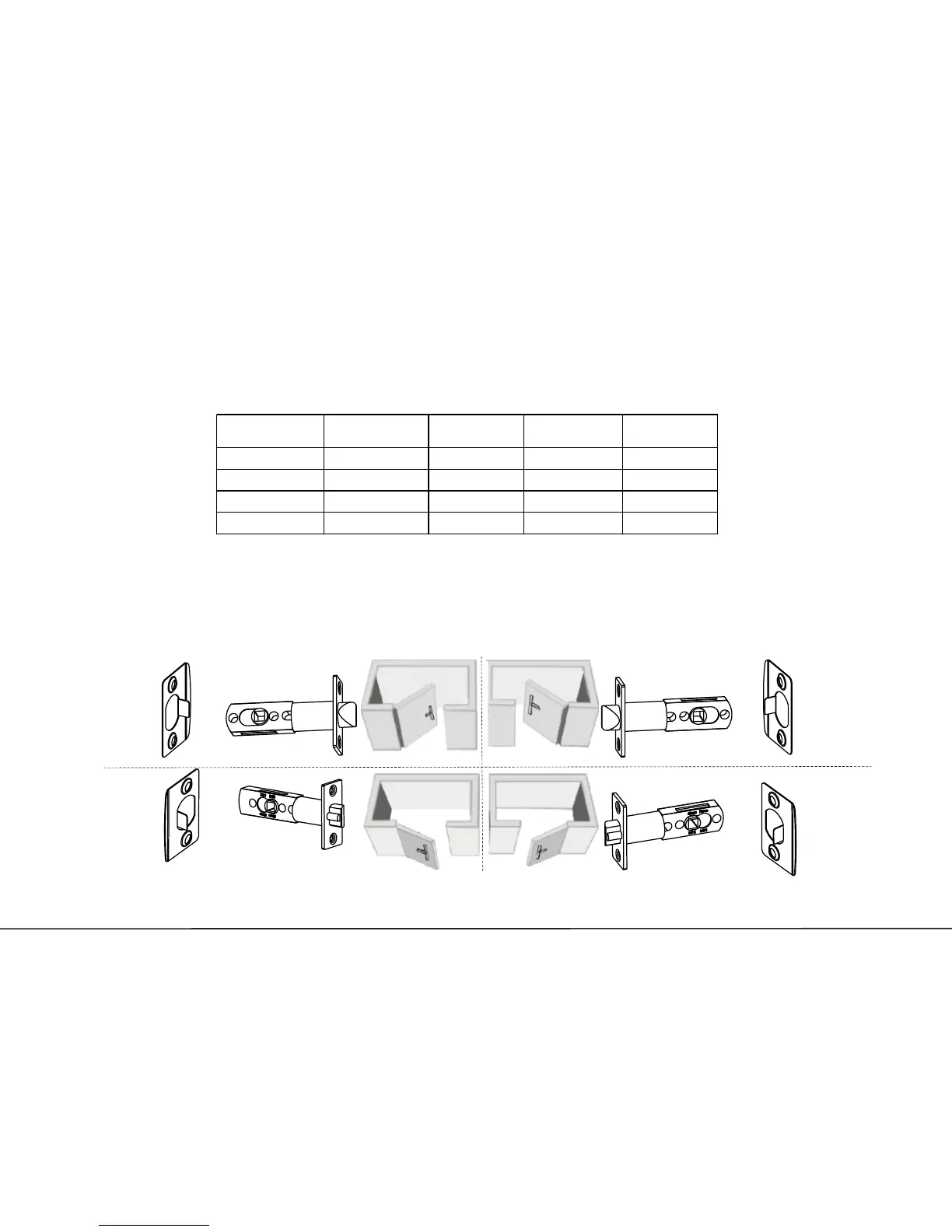

Note: Please refer the above picture to adjust the direction of strike plate F and latch D.
1. Check door thickness and prepare the mounting hardware
package.
2. Check door open direction.
F
F
F
F
D
D
D
D
30~38 56 20 10 25
39~46 64 30 10 35
47~54 72 35 10 40
55~60 80 45 10 50
M Screw Length
(mm)
L Screw Length
(mm)
Door Thickness
(mm)
H Spindle Length
(mm)
J Screw Length
(mm)
Left Inward Right inward
Left outward Right outward
3
