Please unpack your range hood when it is delivered and inspect to ensure all parts
are included.

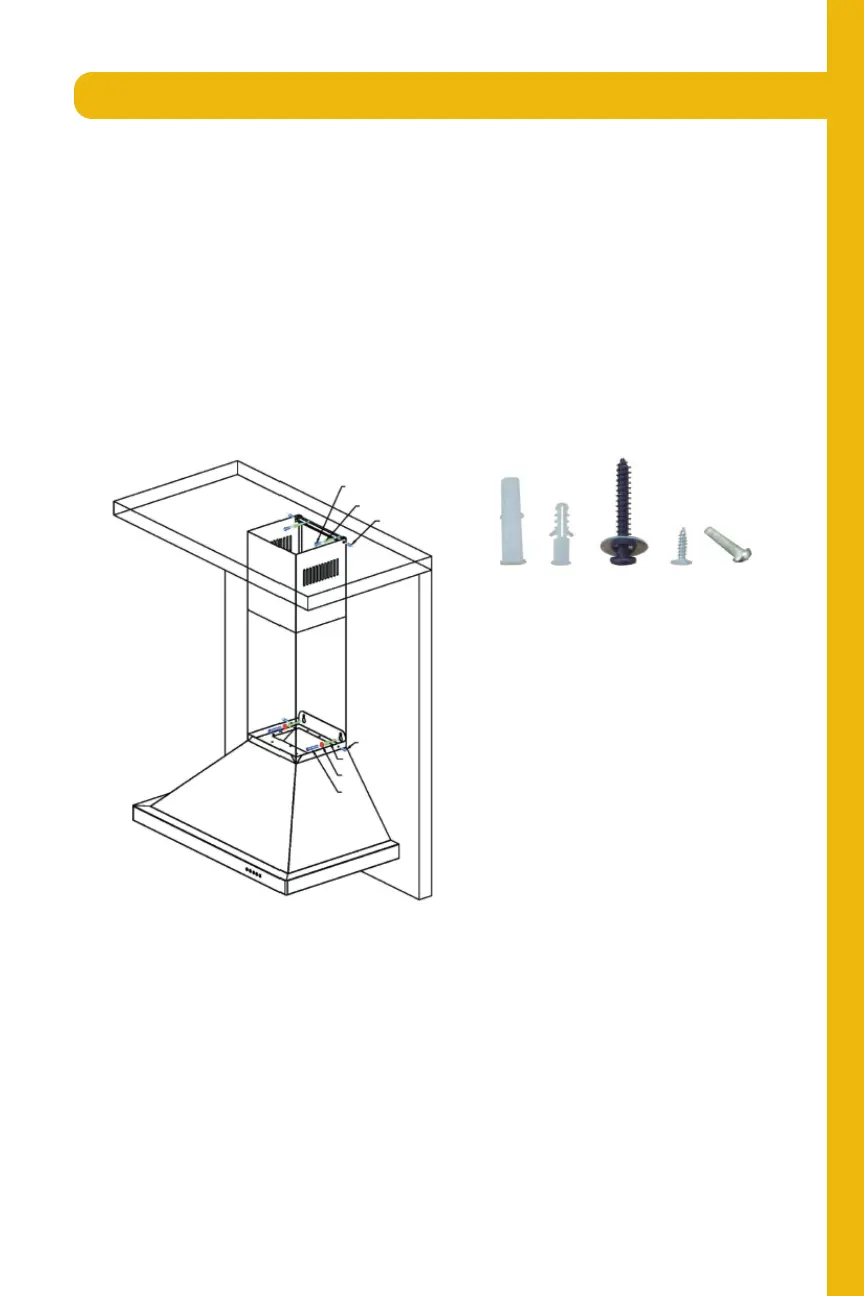

Parts Supplied
1. Main Hood with All Lights and Button 5. Flexible Duct (for 6” or 8”)
Banks Pre-Installed 6. Packet of Screws and Anchors
2. Adjustable Stainless Steel Chimney Cover 7. Top Mounting Bracket
3. Transition Piece (for 6” or 8”) 8. Grease Cup
4. Baffle Filters
Wall Range Hood Installation
*Note: Wall range hoods with single motors will come with a square to 6˝ round
transition piece and will include a back draft damper. The ducting with these
range hoods is 6˝. Dual motor wall hoods will come with a square to 8˝ round
transition piece without a back draft damper. The ducting with these range hoods
is 8˝ in diameter.
*Use rigid ducting wherever possible. Try and minimize the use of elbows. More
elbows and longer runs create higher static pressure. No more than two to three
elbows are recommended. The hood comes with a grounded three prong plug
that can either be direct wired or plugged into a 20 amp circuit.
A B C
D
E F
