Designer Wall Range Hood Installation
Step 5
Make your electrical and ducting connections. Try and minimize the use of elbows.
More elbows and longer runs create higher static pressure. The hood comes with a
grounded three prong plug that can either be direct wire or plugged into a 20amp.
circuit. The cord is 45” long. Figure 4
Step 6
Install the transition piece securing it with screws provided. Figure 5
Step 7
Connect the ducting to the transition piece using ring to hold into place. Figure 6

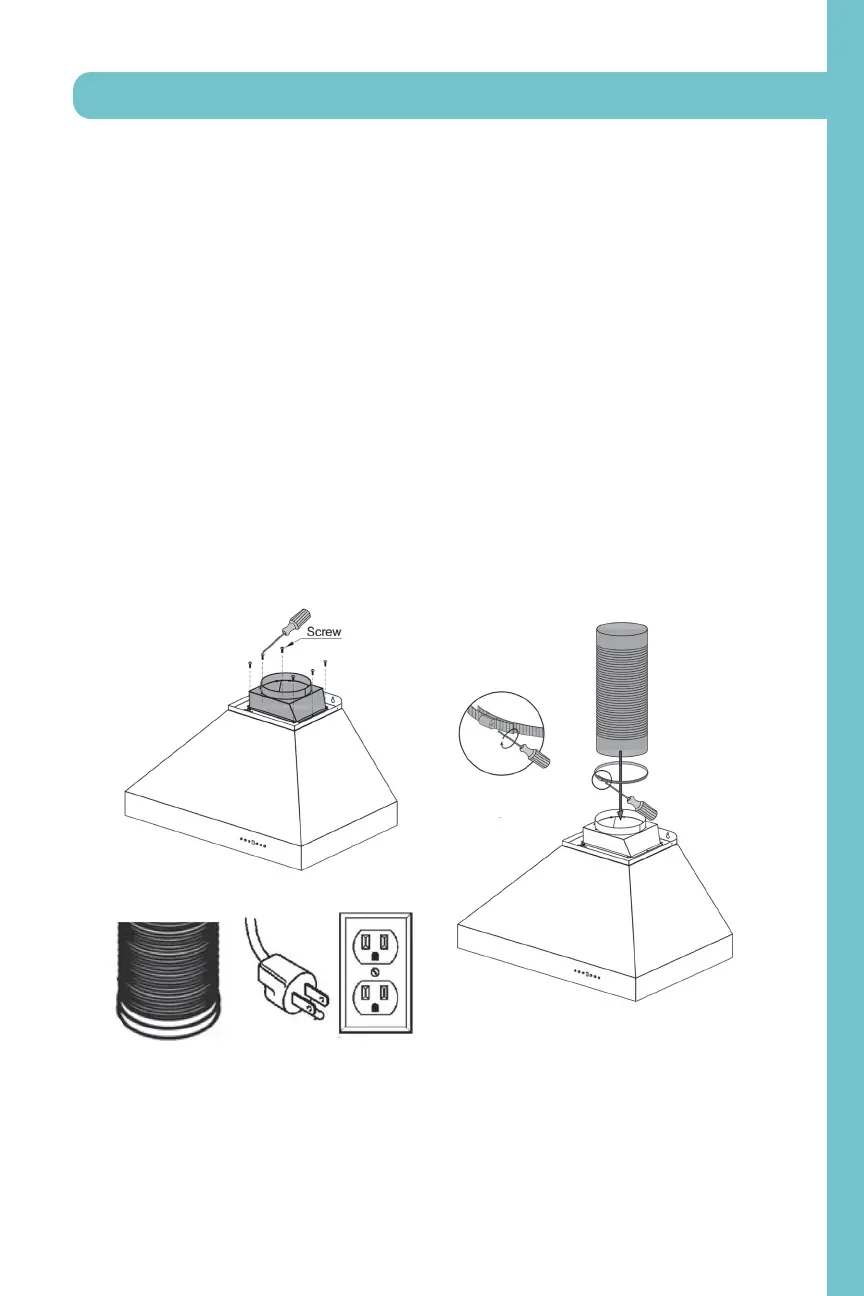

Figure 4
Figure 6Figure 5
To Next Page
