Designer Island Hood Installation
The recommended height to install your hood is 30˝ minimum and 36˝ maximum
above the cooktop. For Outdoor (304 Series) hood installation, the unit must be
installed at a minimum of 36˝ above the grill.
Step 1
Locate the center above the stove where the hood is to be installed. Ensure that
the bracket will be secured to solid wood backing. Attach mounting bracket to the

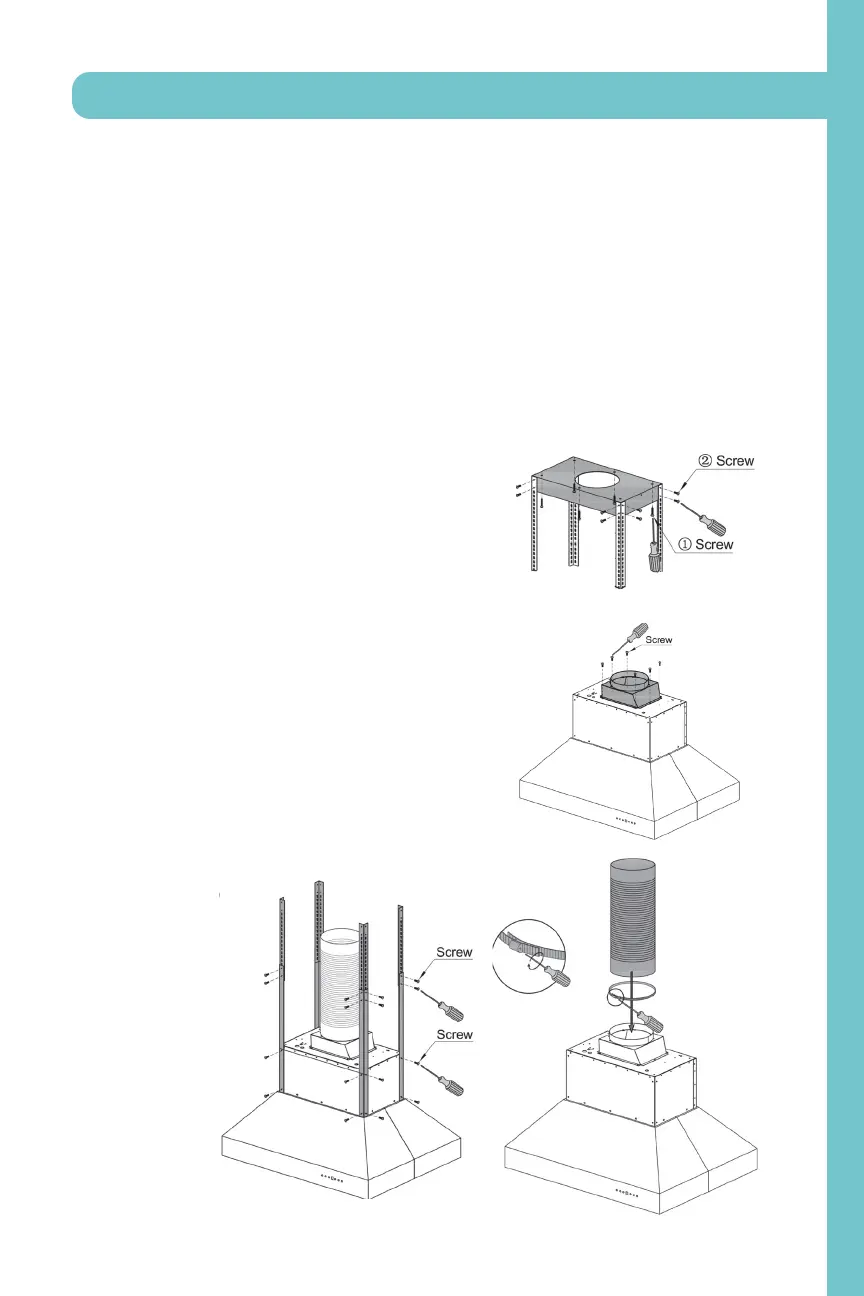

ceiling. Figure 1
Step 2
Attach the transition piece and ducting to top of the
hood. Figure 2
Step 3
Attach the four long angle iron pieces to the hood’s
motor housing. Figure 3
Step 4
Determine desired height and attach the four short
angle iron pieces to the long angle iron pieces that
are attached to the hood. Figure 3
Step 5
Install the duct
work in the
center of the
ceiling bracket.
Figure 1
Figure 2
Figure 3
