28
When installing a range hood insert, it is
recommended to install the unit at a minimum of 30˝
from the cooktop. For outdoor range hood inserts it is
recommended to install the unit at a minimum of 36˝
from the grill top.

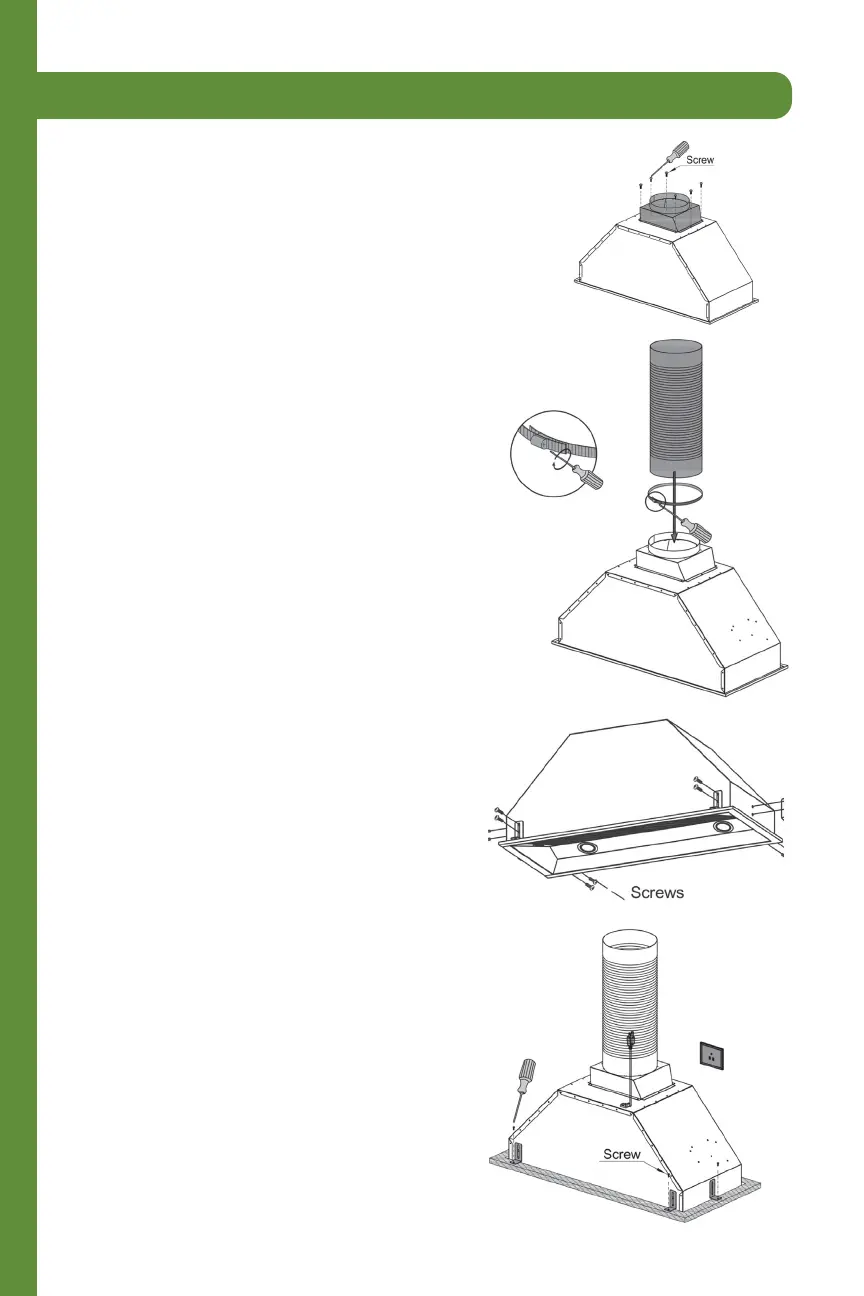

Step 1
Unpack contents of the hood. Attach transition piece
and ducting to the top of the range hood insert.
Figure 1 and 2
Step 2
Using L brackets and screws provided, attach L
brackets to each side of the insert.
Step 3
Lift the range hood insert into cabinet or custom
hood structure. Figure 3
Step 4
Follow instructions for wall hood mount to mount
the range hood.
Due to some installation differences with custom
hoods the L brackets may not work. Before
installing insert please determine if the insert will
work for your installation needs. You may pre-
drill holes into the insert unit to accommodate for
custom hood installations.
Figure 1
Figure 3
Figure 4
Figure 2
Figure 1
RANGE HOOD INSERT INSTALLATION
