Zline Monument Series User Manual

Power cord

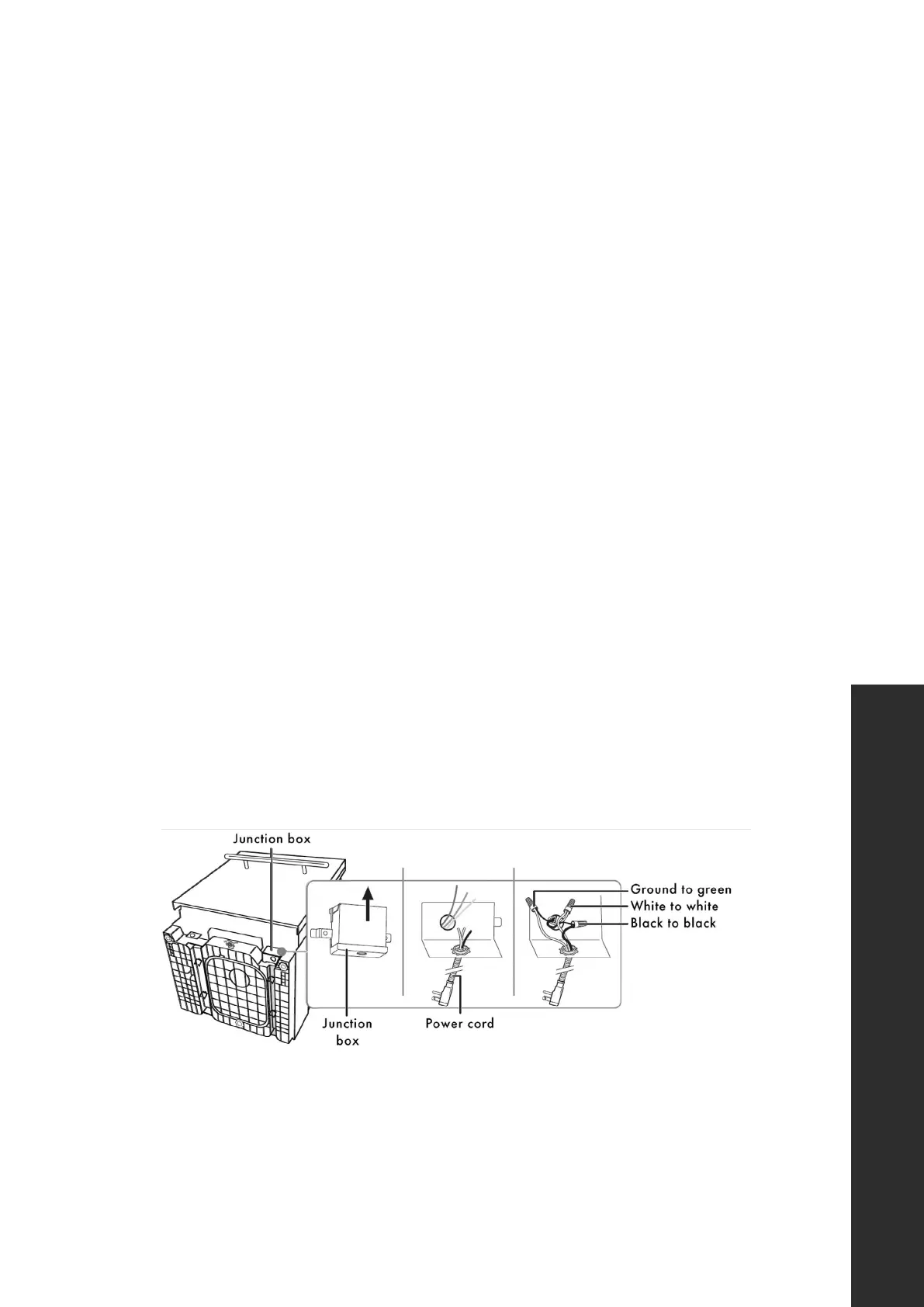

1. Remove the junction box cover on the front right of the dishwasher.
2. Make sure that the junction box’s electrical wires are pulled inside of the junction
box.
3. Remove the lock nut from the strain relief, then push the strain relief into the round
opening of the junction box.
4. Install the lock nut on the strain relief from inside the junction box.
5. Insert the ends of the power cord’s electrical wires into the junction box through
the strain relief.
6. Connect the incoming white (or ribbed) wire to the dishwasher’s white wire, the
black (or smooth) wire to the dishwasher’s black wire, and the ground wire to the
dishwasher’s green wire. Use cUL/UL listed wire nuts of the appropriate size.
7. Tighten the strain relief screws and lock nut to stabilize the power cord’s electrical
wires, then make sure that all of the connections are secure.
8. Replace the junction box cover on the right front of the dishwasher. Be sure that
the wires are not pinched under the cover.
Note: If you have trouble replacing the junction box cover, loosen the
screws on the strain relief.
