ENCLOSURE REQUIREMENTS
The dishwasher must be installed so that the drain hose is no more than 10 ft. in
length, for proper drainage.
This dishwasher is designed to be enclosed on the top and on both sides by a
standard residential kitchen cabinet unit.
The installation enclosure must be clean and free of any obstructions.

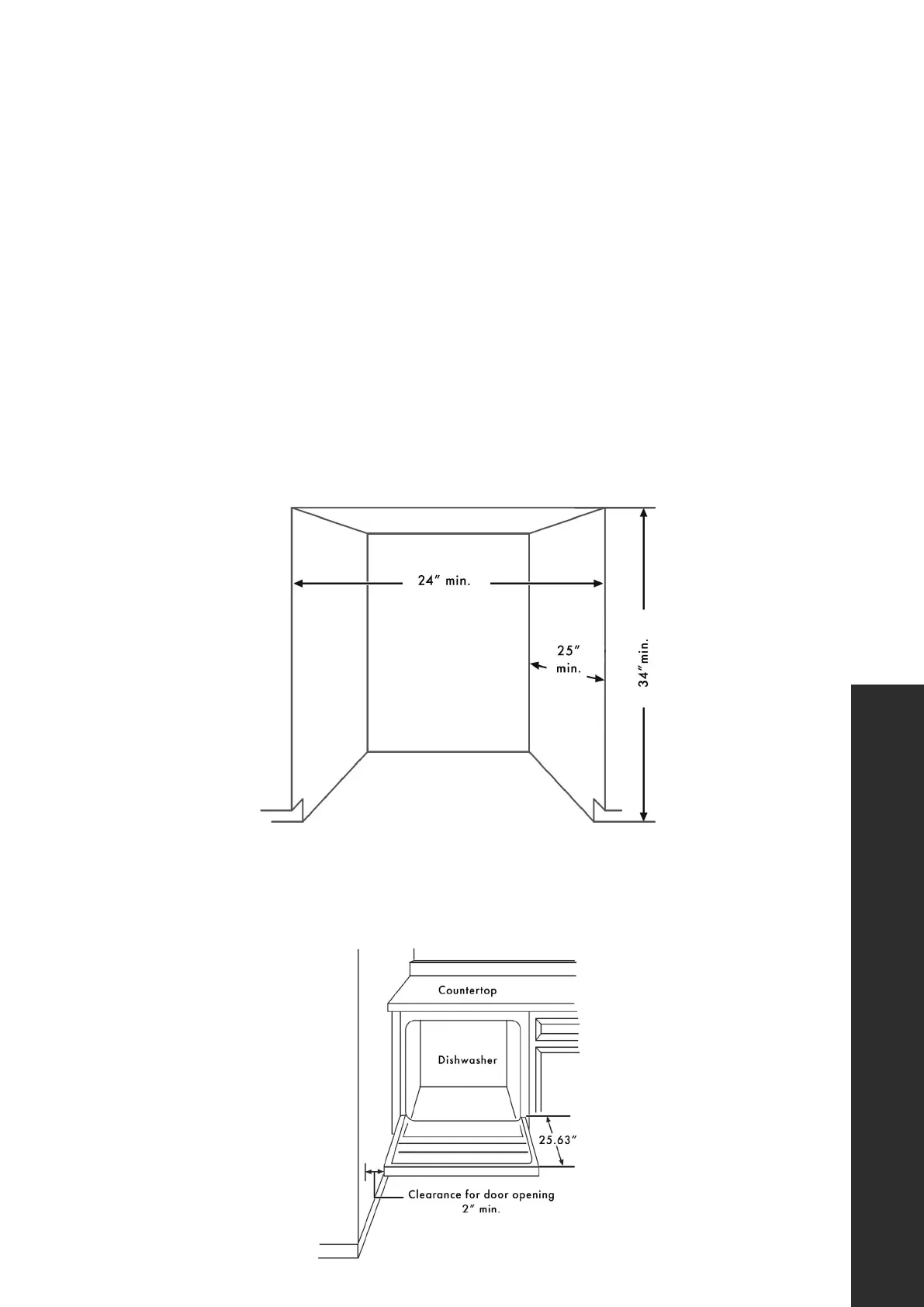

The enclosure must be at least 24 in. wide, 25 in. deep, and 34 in. high.
For the front door of the dishwasher to be flush with the front edge of the counter
top, the counter top must be 25 in. deep.
If installing into a corner, allow 2 in. min. clearance between dishwasher and
adjacent cabinet, wall, or other appliances. Allow 25.63 in. min. clearance from the
front of the dishwasher for opening the door.
BEFORE INSTALLATION
4
Enclosure Dimensions
