Range Top/Dropin Installation
Attaching the dropin
To prevent liquids from accidentally leaking into
the underlying storage space, the appliance is
equipped with a special gasket. To apply this

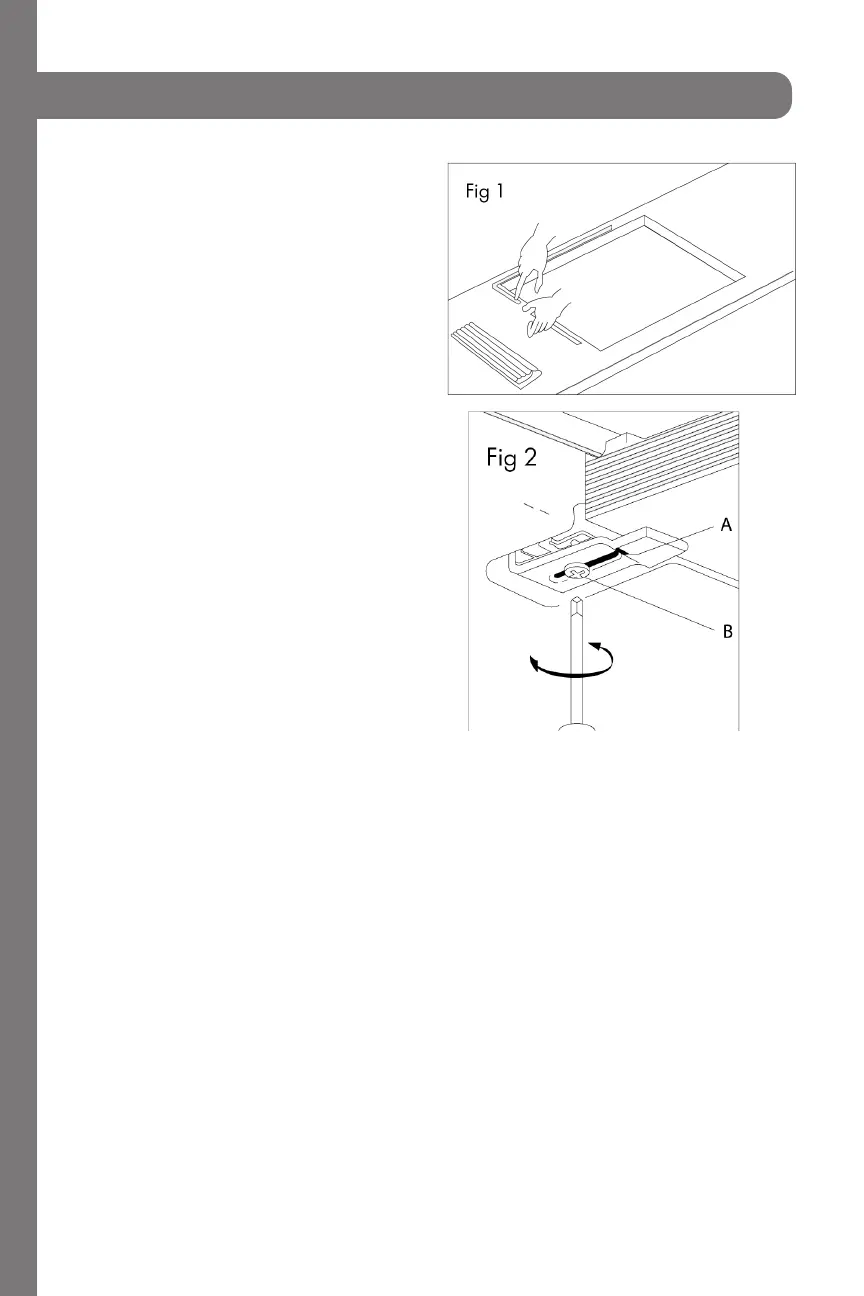

gasket, carefully follow the instructions in Fig.
1. Lay out the protective sealing strips along
the edges of the opening in the bench top and
carefully overlap the strip end. (See Fig. 1).
insert the dropin into the bench top opening.
With a screwdriver assemble the brackets (A) to
the hotplate bottom by means of the screws (B)
(See Fig. 2). Slide the hooks into position and
secure them with the screws. Trim the part of the
sealing strips that extend beyond the dropin
base.
Gas Connection
Please review gas connection on page 12.
