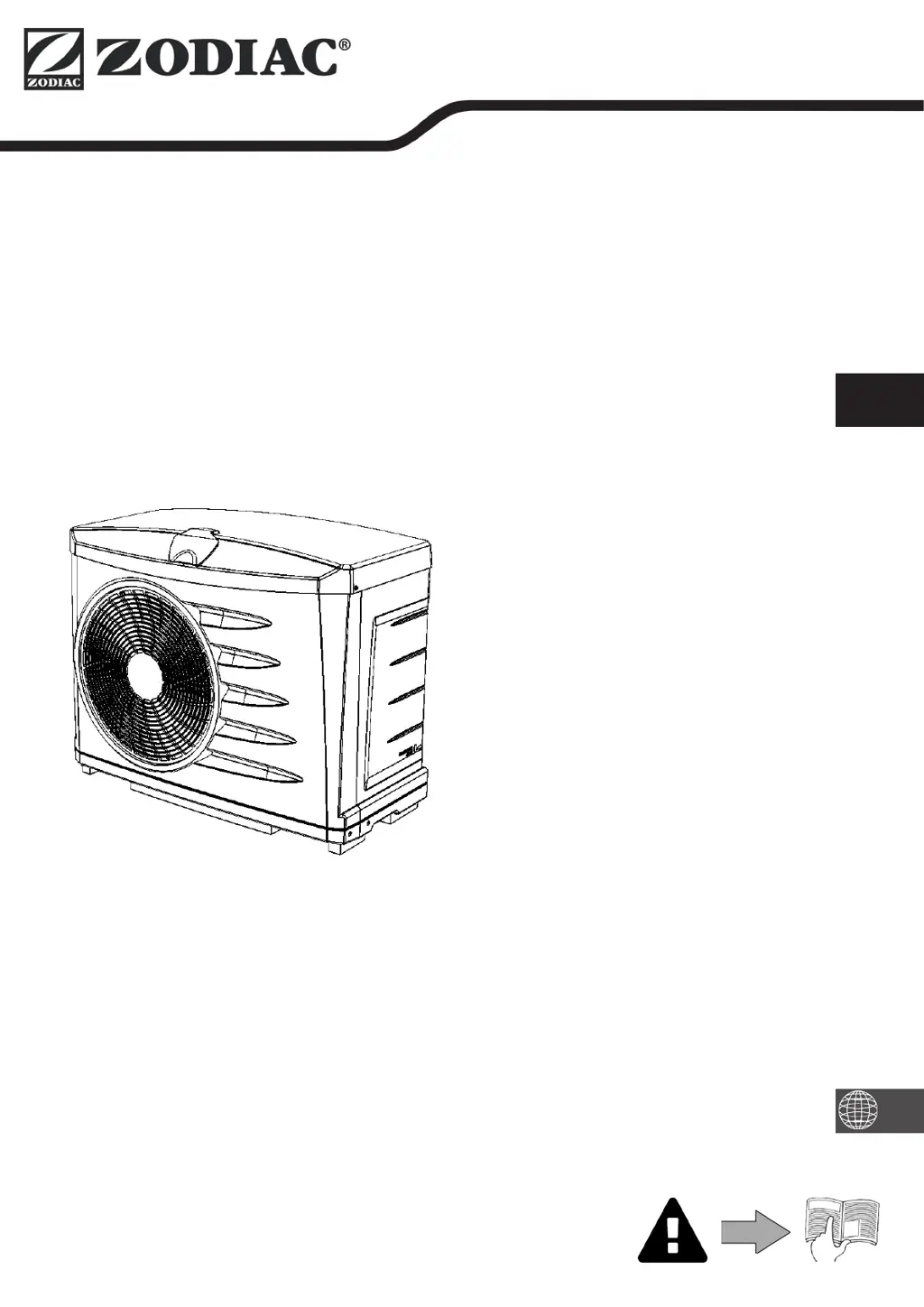

Zodiac Z200 Series User Manual (English)

Questions and Answers:

J
Jade NicholsAug 16, 2025
What causes a high-pressure fault in Zodiac Z200, and how to resolve it?
- T
  tarabennettAug 16, 2025
  A high-pressure fault in your Zodiac Heat Pump can be caused by air and water emulsion entering the device; in this case, check the pool's hydraulic circuit. Increase flow using the bypass and ensure the pool filter isn't clogged. Wait for the temperature to fall. Check the flow controller, clean the water condenser, and close the bypass valve to increase the flow rate through the device.
G
Gregory ConleyAug 19, 2025
What does 'Deicing cycle fault (>20 minutes)' mean on my Zodiac Z200 and how can I fix it?
- S
  Sherri AllenAug 19, 2025
  A deicing cycle fault lasting more than 20 minutes on your Zodiac Heat Pump could be due to a low air temperature; wait until the temperature is within the operating range. Alternatively, clean the evaporator.
W
Wendy HuynhAug 21, 2025
What does an 'Air temperature sensor fault' mean on my Zodiac Z200 Heat Pump?
- K
  kathy97Aug 22, 2025
  An 'Air temperature sensor fault' on your Zodiac Heat Pump indicates that the SD2 sensor is offline or incorrectly connected, and sensor replacement is needed.
S
Sherri FloresAug 25, 2025
What does 'Water temperature sensor fault' mean on my Zodiac Z200 Heat Pump?
- M
  Matthew VasquezAug 26, 2025
  A 'Water temperature sensor fault' on your Zodiac Heat Pump means the SD1 sensor is offline or incorrectly connected. The suggested solution is sensor replacement.
K
Kathryn RochaAug 27, 2025
What does 'Deicing sensor fault' mean on my Zodiac Heat Pump?
- K
  Kristin RhodesAug 27, 2025
  A 'Deicing sensor fault' on your Zodiac Heat Pump suggests that the SD3 sensor is offline or incorrectly connected, and sensor replacement is necessary.
B
blongAug 30, 2025
Why does my Zodiac Z200 Heat Pump trip the circuit breaker?
- S
  samuelmcclainAug 30, 2025
  The Zodiac Heat Pump might be tripping the circuit breaker because the breaker isn't correctly sized or the cable section used is not the right one. Also, the supply voltage could be too low; in this case, contact your electricity supplier.
C
Candace DeanSep 2, 2025
What to do if my Zodiac Z200 is not working?
- M
  Michael LeeSep 2, 2025
  If your Zodiac Heat Pump isn't working, check the supply voltage and the F1 fuse. Also, the heat pump stops heating when the setpoint temperature is reached: the water temperature is higher than or equal to the setpoint temperature. If the water flow rate is zero or not enough, the heat pump stops: ensure water is circulating correctly. The heat pump also stops when the outdoor temperature falls below 5 °C for standard models or -5 °C for “Defrost” models. Finally, it may have detected an operating fault.
M
Michael HowardSep 4, 2025
What to do if my Zodiac Z200 Heat Pump is working but the water temperature does not increase?
- E
  Elizabeth SmithSep 4, 2025
  If your Zodiac Heat Pump is running but the water temperature isn't increasing, it may have detected an operating fault. Check that the automatic filling valve is not stuck in the open position, as this will keep supplying cold water. If the air is cool, install a heat-insulated cover on your pool to reduce heat loss. Also, if the evaporator is clogged with dirt, clean it to restore performance. Ensure the external environment isn't hindering the heat pump and that the heat pump is the right size for your pool and environment.
K
Kelly MosleySep 7, 2025
Why is my Zodiac Z200 Heat Pump draining water?
- M
  michael59Sep 7, 2025
  The water draining from your Zodiac Heat Pump is often condensation, which is moisture in the air condensing on cold components, especially the evaporator. To check if it's a pool circuit leak, shut down the heat pump, wait a few minutes, and run the filtration pump to circulate water. If water continues to flow through the condensation drain, there is a water leak, and you should contact your reseller.
G
Gary HallSep 10, 2025
Why does my Zodiac Z200 not start heating straight away?
- K
  Kimberly PowersSep 12, 2025
  Your Zodiac Heat Pump might not start heating immediately because it remains paused for 5 minutes on start-up. Also, when the setpoint temperature is reached, the heat pump stops heating if the water temperature is higher than or equal to the setpoint temperature. If the water flow rate is zero or insufficient, the heat pump will stop; check that water is circulating correctly and that hydraulic connections are correct. The heat pump also stops if the outdoor temperature falls below 5 °C for standard models or -5 °C for “Defrost” models. Finally, it may have detected an operating fault.

Zodiac Z200 Series Specifications

General

Brand	Zodiac
Model	Z200 Series
Category	Heat Pump
Language	English

Summary

Product Specifications

Product Components and Description

Lists included components (A-L) and their availability for different models (Z200, PI20, Power).

Detailed Technical Specifications

Provides technical data: operating temp, power, voltage, pressure, flow rates, refrigerant type, weight, and IP rating.

Device Dimensions and Marking Guide

Illustrates physical dimensions and identifies key connection points, labels, and ports on the appliance.

Installation Guide

Location Selection for Installation

Guidelines for choosing an installation site, including distance from pool, safety, and noise reduction tips.

Hydraulic Connection Procedures

Details on connecting the device to pool filtration circuit, bypass installation, and condensation drainage.

Electrical Supply Connection Safety

Instructions for safe electrical connections, RCD requirements, cable types, and connection methods.

Optional Feature Connections

Information on connecting optional features like 'Heating priority' and 'Remote control' systems.

Using the Heat Pump

Heat Pump Operating Principle Explained

Explains how the heat pump uses air calories to heat pool water and factors affecting performance.

User Interface and Display Overview

Description of the control panel display, buttons, and status symbols indicating device operation and settings.

Step-by-Step Operation Guide

Guide for operating the heat pump, including initial setup, valve settings, and starting the device.

Key User Functions and Controls

Covers reading water temperature and locking/unlocking the control keyboard for user convenience.

Maintenance and Care

Winterizing and Seasonal Protection

Instructions for preparing the heat pump for winter to prevent freezing damage and condensation issues.

Routine Maintenance and Servicing

Details user-level maintenance tasks and required servicing by a qualified technician for optimal operation.

Troubleshooting and Error Resolution

Common Device Behaviors and Checks

Guides users through common operational issues, their possible causes, and initial troubleshooting checks.

Understanding and Resolving Error Codes

Lists specific error codes, their corresponding causes, and recommended solutions for fault diagnosis.

Electrical Wiring Diagrams for Models

Provides detailed wiring diagrams for standard and defrost models for technical reference and diagnostics.
