DETAIL A
DISCHARGE
SWITCH MOUNTING LOCATION
PUMP
PIPE
DETAIL "A"
(ROTATED TO SHOW SIDE VIEW)
RECOMMENDED WEEP
HOLE DIRECTION
DISCHARGE
DISCHARGE
PUMP
PIPE
"WEEP" HOLE
"Y" SPLICE
WATER SUPPLY
CONNECTED TO
HOUSE DRAIN.
TEMPORARILY
DISCHARGE PIPE
OUTLET
GFCI
EXPLODED VIEW
ASSEMBLED VIEW
FLOAT STOP
FLOAT
IN THIS LOCATION.
10 1/8" (3 mm) FLOAT ROD
INSTALLED UNDER FLOAT ROD
LOCKING PIN MUST BE
LOCKING PIN
BOTTOM OF FLOAT STOP
FLOAT ROD.
FLUSH WITH END OF
SLIDE FLOAT STOP.
TO PUMP
1" (2.5 cm)
STEP 6 TESTING OF PUMP OPERATION
NOTE: Measure water level at oat switch on Models 100 &
102 for best accuracy. Model 101 has been preset but should
also be checked per instructions below.
6.1) With the lid removed, temporarily connect the pump
discharge pipe to the house drain pipe. Model 101 can
be checked through the toilet inlet to avoid removal
of the preassembled lid.
6.2) Plug in pump.
6.3) Fill the tank with 4” of water as shown in Figure 6.1.
The pump should not turn “ON”!
6.4) Fill the tank with an additional ½” of water. The pump
should turn “ON” before the water level reaches 4½”.
Refer to the Troubleshooting Guide, on page 11, for
problem diagnosis.
6.5) Unplug pump and disconnect discharge piping and
continue to STEP 7.
Figure 6.1

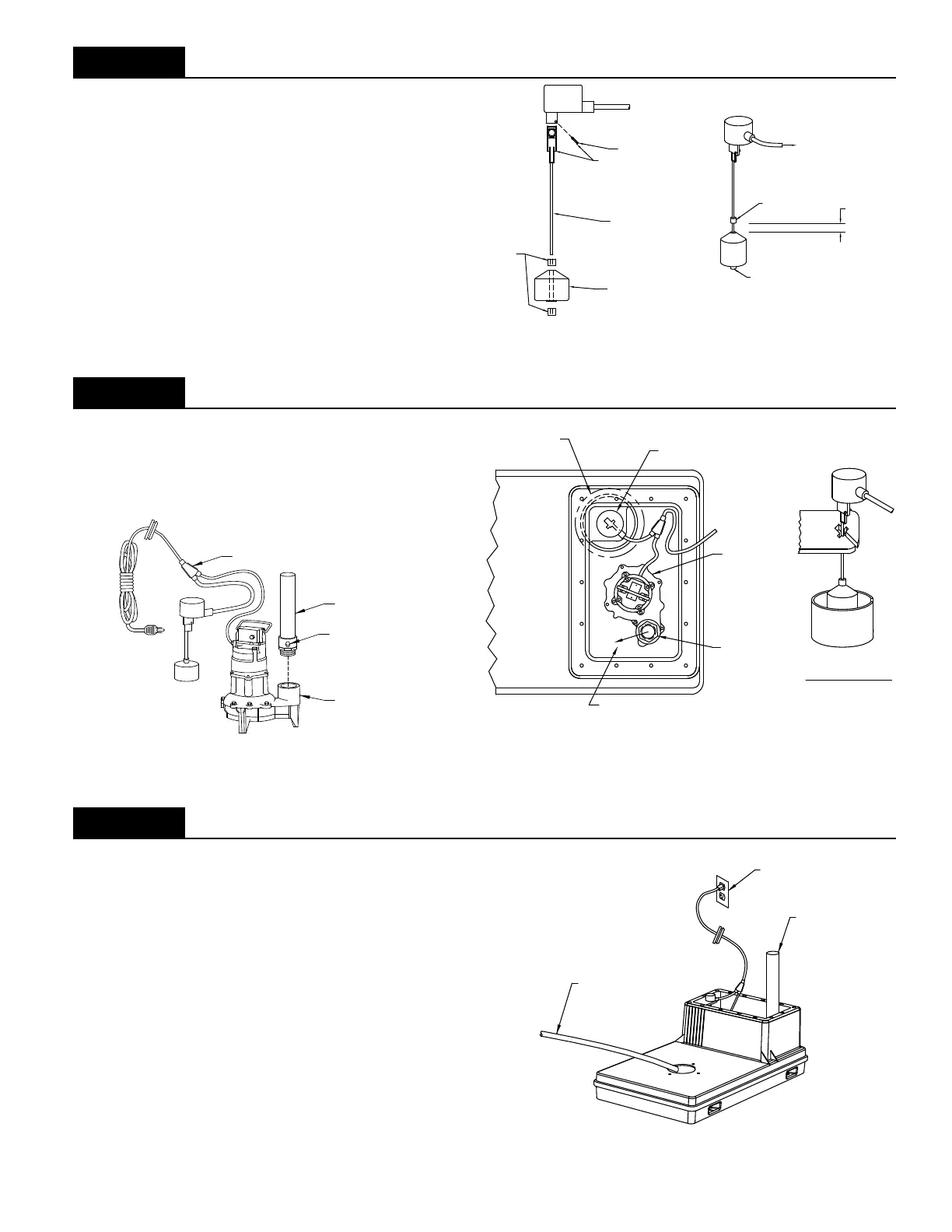

STEP 4 ASSEMBLY OF THE FLOAT SWITCH (MODELS 100 & 102 ONLY)
4.1) Assemble oat switch components as shown in
Figure 4.1 & 4.2.
4.2) Slide oat stop down to 1 inch above oat.
NOTE: a) Setting oat control to come on sooner will
increase the delay between when the pump starts and
when it begins delivering water.
b) If adjustment is necessary, move the oat stops up
or down along the oat rod. Ensure that the pump turns
on at a maximum of 4½”.
Figure 4.1 Figure 4.2
SK1749
SK1752
STEP 5 INSTALL OF PUMP & FLOAT SWITCH INTO TANK (100 & 102 ONLY)
5.1) Install the discharge pipe onto the pump as shown in
Figure 5.1.
5.2) Place the pump into the tank as shown in Figure 5.2.
5.3) Mount the oat switch as shown on Detail “A”.
Model 100 Pump Shown
Figure 5.1
Note: Float switch will be “loose” until lid is installed.
Note: Model 102 does not have a “Y” splice.
SK1750
SK1751
Figure 5.2
To Next Page
