Zojirushi cv-dcc40 User Manual

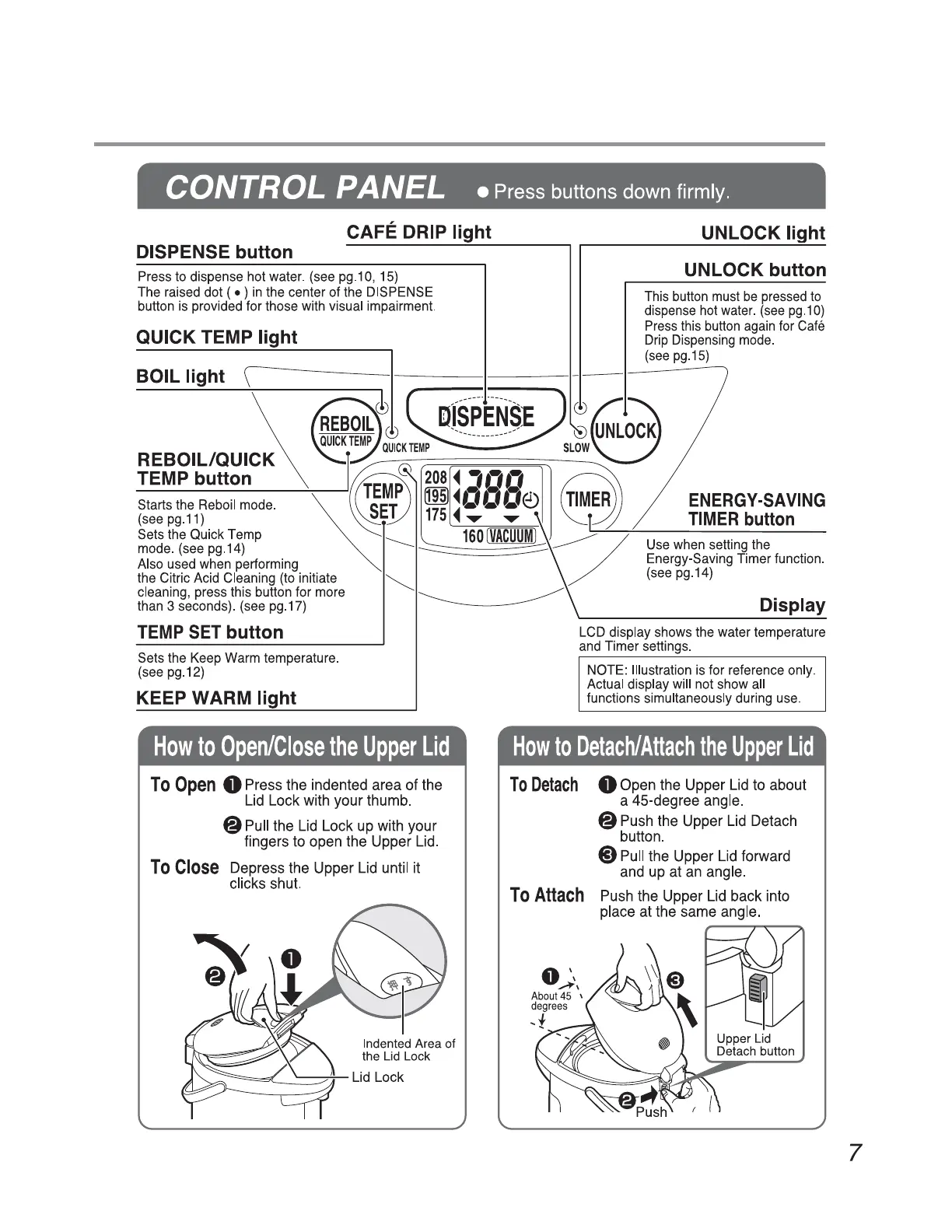

CONTROL PANEL • Press buttons down firmly.
CAFE DRIP light
DISPENSE button
Press to dispense hot water . (see pg . 10, 15)
The raised dot ( • ) in the center of the DISPENSE
button is provided for those with visual impairment.
QUICK TEMP light
UNLOCK light
UNLOCK button
Th is button must be pressed to
dispense hot water . (see pg.10)
Press this button again for Cafe
Drip Dispensing mode .
(see pg . 15)
BOIL light
r------1-----•-----•- -
1
-------,
REBOIL J,® r ii~-~~ji) ~"~
QUICKTEMP QUICK~---V-- S'LOW~
-~E_E:_~_1b_L~-~-~-~c_K __ __./tw@ 20s ◄ :,88 8
(seepg. 11) '-----:--:-::---, .... = .... ="' T
~ ~
1
9
7
5
5
◄◄~ • =. ©
---- 1601VACUUMI ________ _
--=========-- __--
/ ...,.........,_..,.......
~
~
Starts the Reboil mode .
Sets the Quick Temp
mode . (see pg . 14)
Also used when performing
the Citric Acid Cleaning (to initiate
cleaning , press this button for more
than 3 seconds) . (see pg . 17)
Use when setting the
Energy-Saving Timer function .
(see pg . 14)
Display
TEMP SET button
Sets the Keep Warm temperature.
(see pg . 12)
TIMER
KEEP WARM light
LCD display shows the water temperature
and Timer settings.
NOTE: Illustration is for reference only.
Actual display will not show all
functions simultaneously during use .
How to Open/Close the Upper Lid
To Open O Press the indented area of the
Lid Lock with your thumb .
@Pull the Lid Lock up with your
fingers to open the Upper Lid.
To Close Depress the Upper Lid until it
clicks shut.
Indented Area of
the Lid Lock
Lid Lock
How to Detach/ Attach the Upper Lid
To Detach O Open the Upper Lid to about
a 45-degree angle .
@
Push the Upper Lid Detach
button.
@) Pull the Upper Lid forward
and up at an angle.
To Attach Push the Upper Lid back into
place at the same angle.
7
ENERGY-SAVING
TIMER button

Zojirushi cv-dcc40 Specifications

General

Brand	Zojirushi
Model	cv-dcc40
Category	Boiler
Language	English
