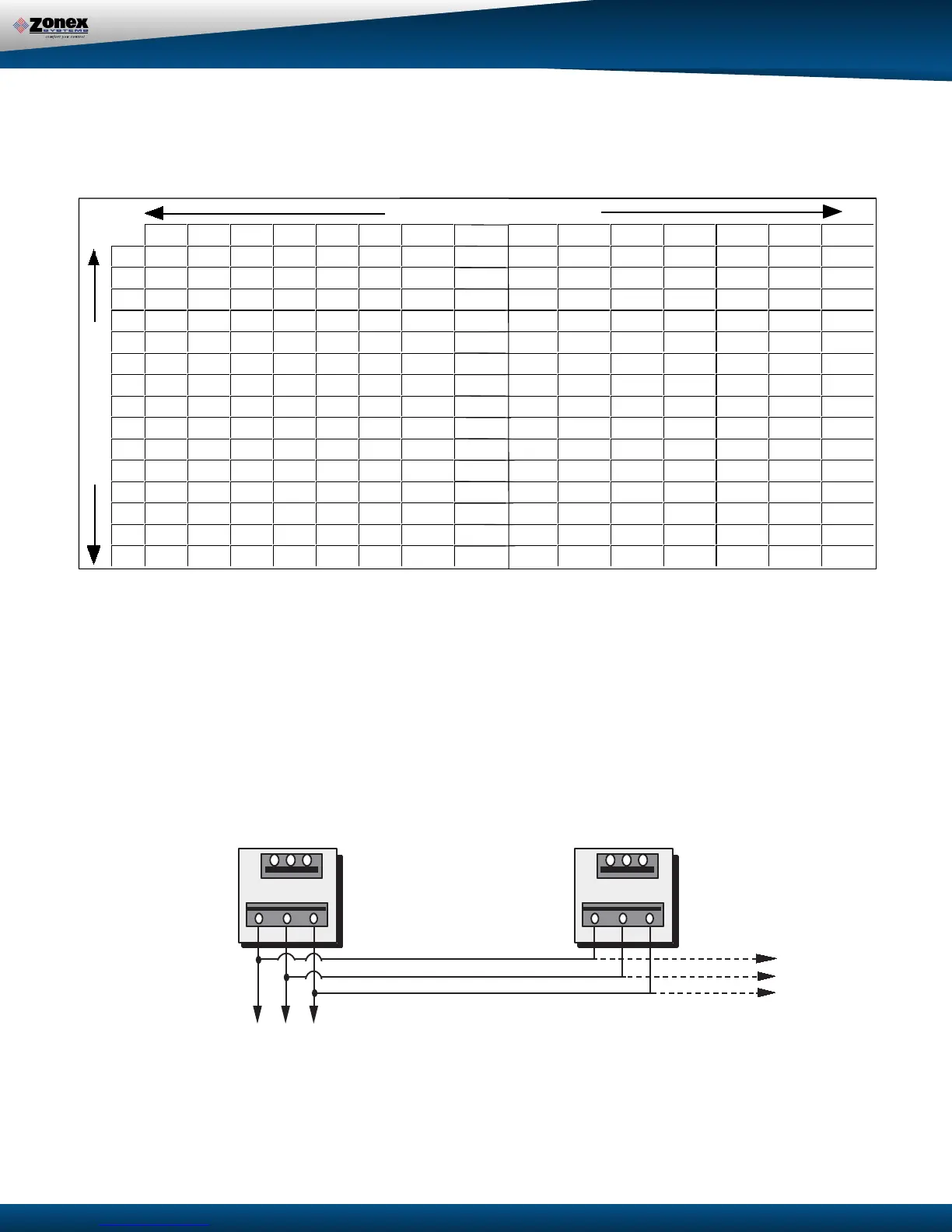

Zonex DigiTract 4 - RECTANGULAR BYPASS SELECTION TABLE; SLAVING BYPASS DAMPERS

20
Bypass air in CFM. Calculated at 1500 FPM.
Formula used: B = W X H / 144 X 1500, where B = Bypass air in CFM, W = damper width in inches, H= damper height in inches, 144 = 144
sq. inches per sq. ft., 1500 = 1500 FPM.
SLAVING BYPASS DAMPERS
Use only one Pressure Sensor when slaving two or more Bypass Dampers together. Connect the Pressure Sensor to one damper. Connect the
slave dampers in parallel as shown. Up to 4 dampers can be slaved to one Sensor. The slaved dampers will self synchronize each time the
dampers reach full open or full close.
24 28 32 36 40 44 48
8
2000 2333 2667 3000 3333 3667 4000
10 2500 2917 3333 3750 4167 4583 5000
12 3000 3500 4000 4500 5000 5500 6000
14 3500 4083 4667 5250 5833 6417 7000
16 4000 4667 5333 6000 6667 7333 8000
18 4500 5250 6000 6750 7500 8250 9000
20 5000 5833 6667 7500 8333 9167 10000
22 5500 6417 7333 8250 9167 10083 11000
24 6000 7000 8000 9000 10000 11000 12000
28 7000 8167 9333 10500 11667 12833 14000
32 8000 9333 10667 12000 13333 14667 16000
36 9000 10500 12000 13500 15000 16500 18000
40 10000 11667 13333 15000 16667 18333 20000
44 11000 12833 14667 16500 18333 20167 22000
48 12000 14000 16000 18000 20000 22000 24000
8 10 12 14 16 18 20 22
8
667 833 1000 1167 1333 1500 1667 1833
10
833 1042 1250 1458 1667 1875 2083
2292
12
1000 1250 1500 1750 2000 2250 2500 2750
14
1167 1458 1750 2042 2333 2625 2917 3208
16
1333 1667 2000 2333 2667 3000 3333 3667
18
1500 1875 2250 2625 3000 3375 3750 4125
20
1667 2083 2500 2917 3333 3750 4167 4583
22
1833 2292 2750 3208 3667 4125 4583 5042
24
2000 2500 3000 3500 4000 4500 5000 5500
28
2333 2917 3500 4083 4667 5250 5833 6417
32
2667 3333 4000 4667 5333 6000 6667 7333
36
3000 3750 4500 5250 6000 6750 7500 8250
40
3333 4167 5000 5833 6667 7500 8333 9167
44
3667 4583 5500 6417 7333 8250 9167 10083
48
4000 5000 6000 7000 8000 9000 10000 11000
WIDTH IN INCHES
HEIGHT IN INCHES
SLAVE
DAMPER
ACTUATOR
DAMPER
ACTUATOR
RC
RO
MC
TO NEXT SLAVE
BYPASS DAMPER
IF APPLICABLE
* *
RC RO MC
** *
RC RO MC
*
RECTANGULAR BYPASS SELECTION TABLE
To Static Pressure Controller As Shown On The Bypass Wiring Diagram On
BYPASS DAMPERS - ELECTRONIC
