5-RIGHT CRANKCASE COVER ASS
17
CHK
ADJ
NO. PART NO.
1 1251112-002093
M6×30 Hexagon flange bolts (color zinc)
9
2 1251112-003093
M6×45 Hex flange surface 9.8 bolt (color zinc)
3
3 1051356-009000 ZT158MJ clutch cable bracket 1

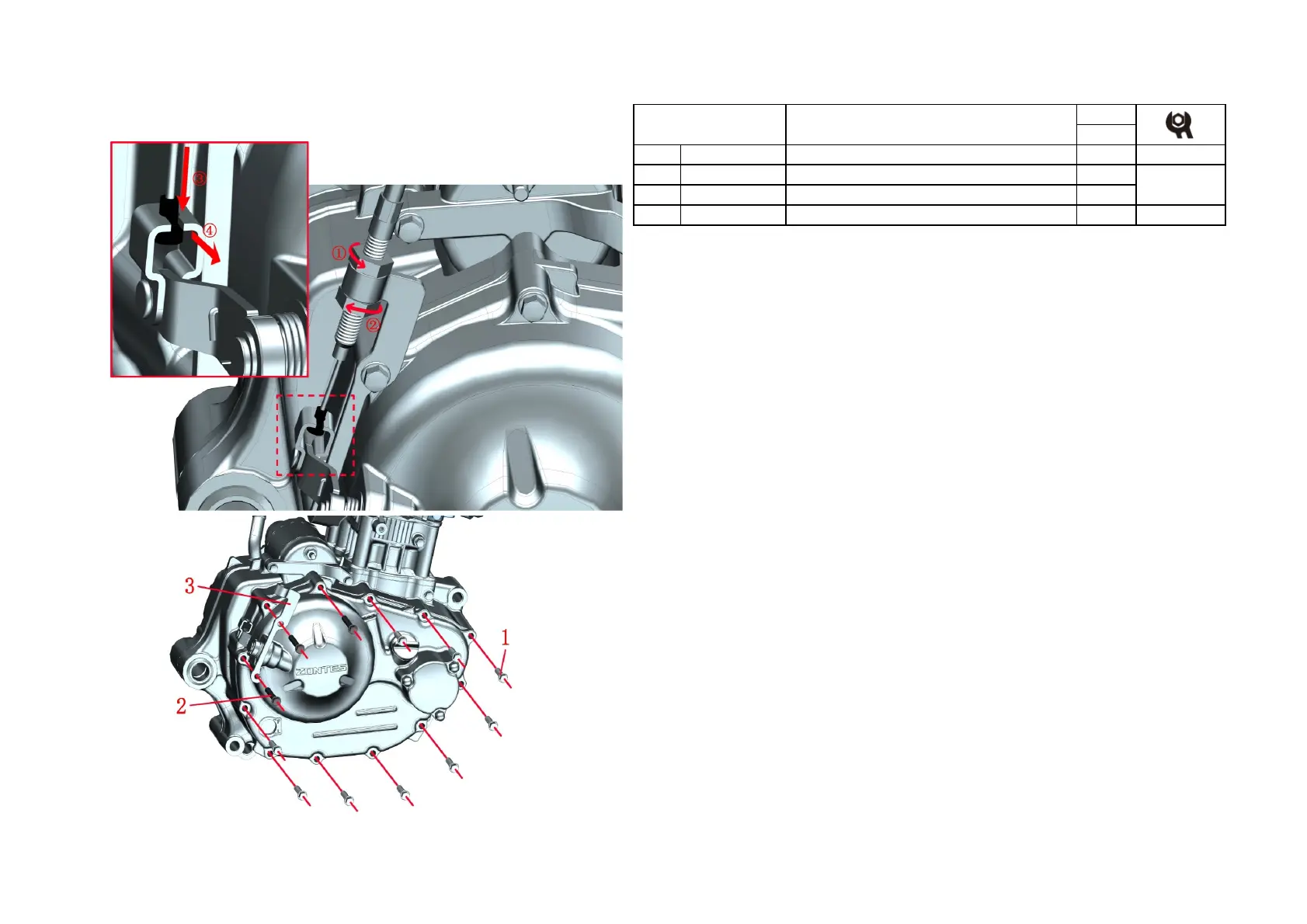

Fig.2 RIGHT CRANKCASE
COVER ASSEMBLY
ZT158MJ right crankcase cover assembly-2
12±1.5N.m
PROCEDURE:
●Use a 14# open-end wrench to loosen the nuts marked by ① and ② on the clutch line in the direction of the
arrow, pull the clutch line down in the direction of arrow ③, then take it out in the direction of arrow ④, and
remove the clutch line from the right crankcase Remove the cover.
●Use 8#T rod sleeve to remove 9 bolts ⑴ and 3 bolts ⑵, take off the clutch cable bracket ⑶
To Next Page
