Zoom B1 FOUR User Manual

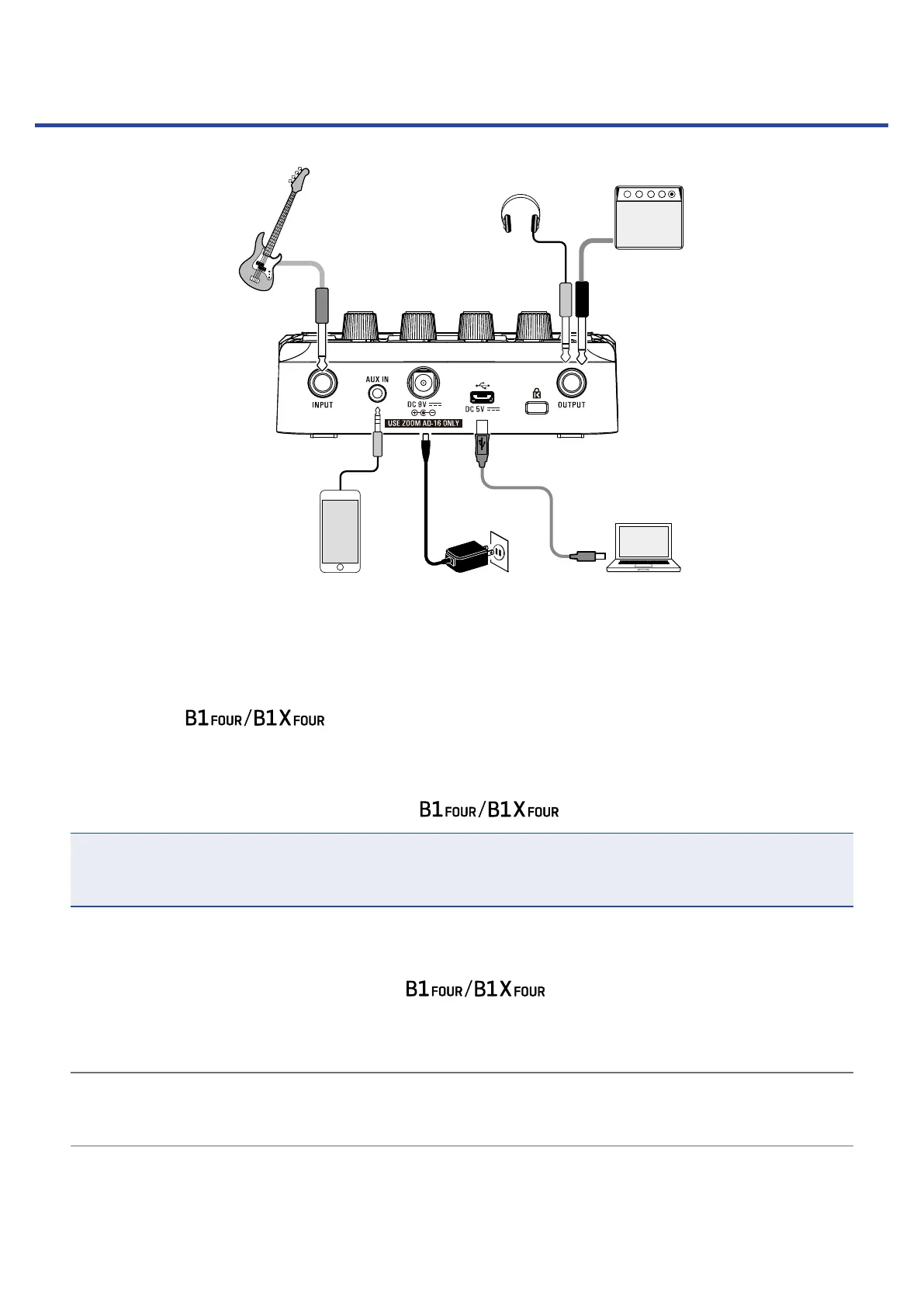

Connecting
1, 7
4
25 3
6
1.
Minimize the volume of the bass amp.
2.
To use AC power supply, connect to the dedicated AC adapter (ZOOM AD-16) to the AC adapter jack
and an outlet.
This turns the
power ON.
3.
To use a computer, connect a USB cable (not included) to the USB port and the computer.
When using USB bus power to operate the
, connecting this cable will turn it ON.
Guitar Lab
By using Guitar Lab, you can manage patches and edit and add effects, for example from a computer.
Download Guitar Lab from the ZOOM website (www.zoom.co.jp).
4.
Connect a bass to the INPUT jack.
When using battery power to operate the
, connecting to this will turn it ON.
5.
To use external input, connect a portable audio player or other device to the AUX IN jack.
HINT
Signals input through the AUX IN jack will be sent to the OUTPUT jack directly without passing through
the built-in effects.
6.
Connect a bass amp or headphones to the OUTPUT jack.
7.
Raise the bass amp volume.
10

Zoom B1 FOUR Specifications

General

Simultaneous Effects	5
Sampling Frequency	44.1 kHz
Tuner	Yes
A/D Conversion	24-bit
D/A Conversion	24-bit
Frequency Response	20 Hz - 20 kHz
Display	LCD
Input	1/4" phone jack
Output	1/4" phone jack
Expression Pedal	Yes
Inputs	1 x 1/4" (Instrument)
Outputs	1 x 1/4" (Headphones), 1 x 1/4" (Line Out)
Patches	50
