2

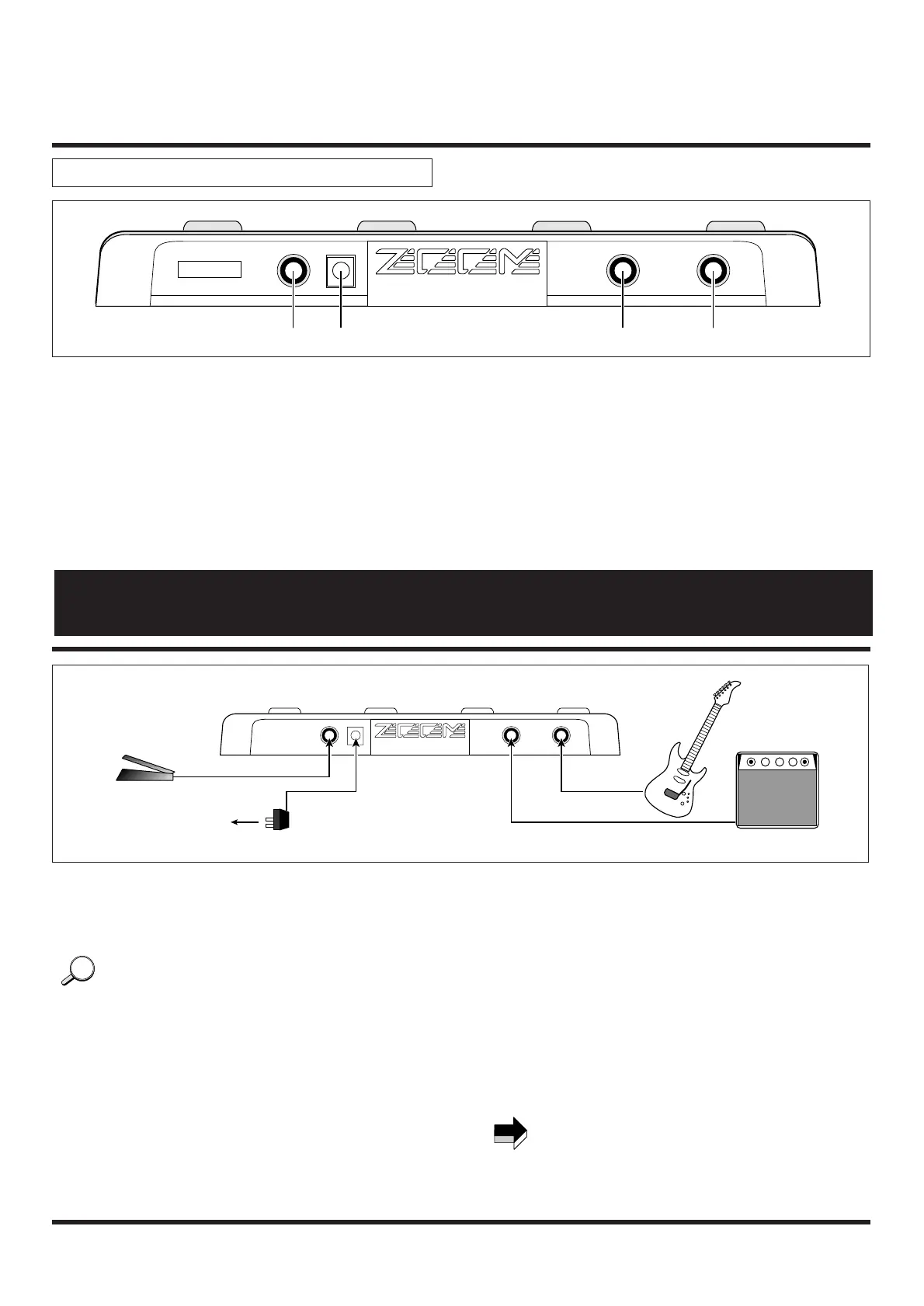

(1) CONTROL IN jack
This connector allows use of the optional foot pedal FP01
to control pedal wah or volume level.
(2) DC INPUT (AC adapter) jack
The supplied AC adapter is connected here. As long as the
AC adapter is connected, the unit is turned on. There is no
separate power switch.
(3) OUTPUT jack
Connects to the amplifier.
(4) INPUT jack
Connects to the guitar.
(1) Connect an electric guitar to the INPUT jack.
(2) Connect a guitar amplifier to the OUTPUT jack.
When monitoring the sound through an audio speaker,
distortion effects may sound too weak. If this happens,
choose a distortion color with amplifier simulation.
For details regarding distortion color, please refer to the
table of effect types on page 9.
(3) To control volume or wah with the foot pedal FP01,
connect the pedal to the CONTROL IN jack of the
1010.
For details regarding use of the foot pedal, please refer to
page 6.
(4) After all other connections are completed, plug in the
supplied AC adapter.
This activates the unit.
Make sure that power to connected equipment is turned
off before plugging in or unplugging the AC adapter of
the 1010.
To Next Page
