Installing the Ba
tt
ery

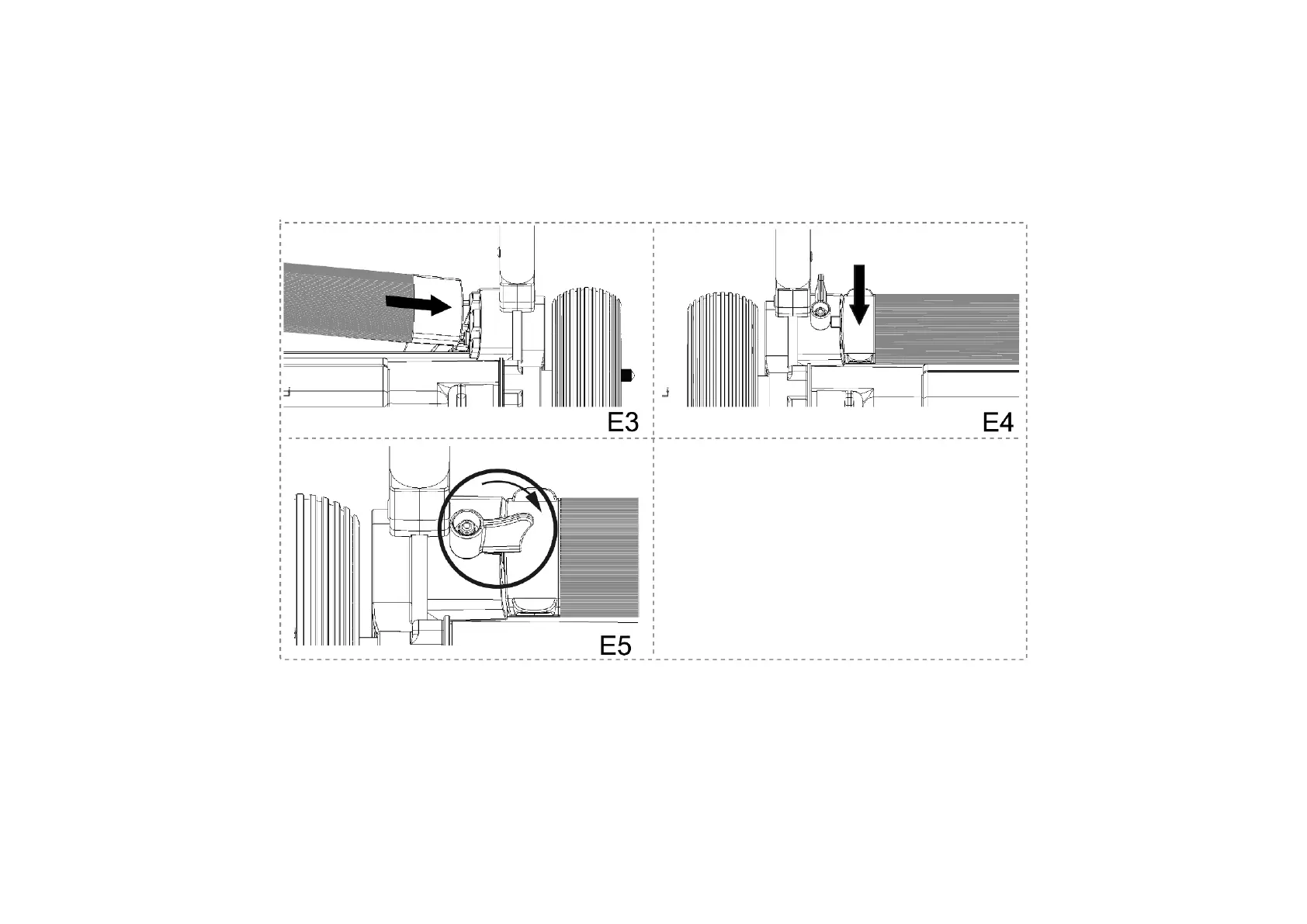

Hold the battery as shown and align it with the terminals as indicated in Figure E3.
After aligning, slide the battery onto the terminals and
downward.
Press
in
to the holder as shown in
Figure E4.
Th
en rotate the battery's holding knob into the middle position
.
(Figure E5
).
