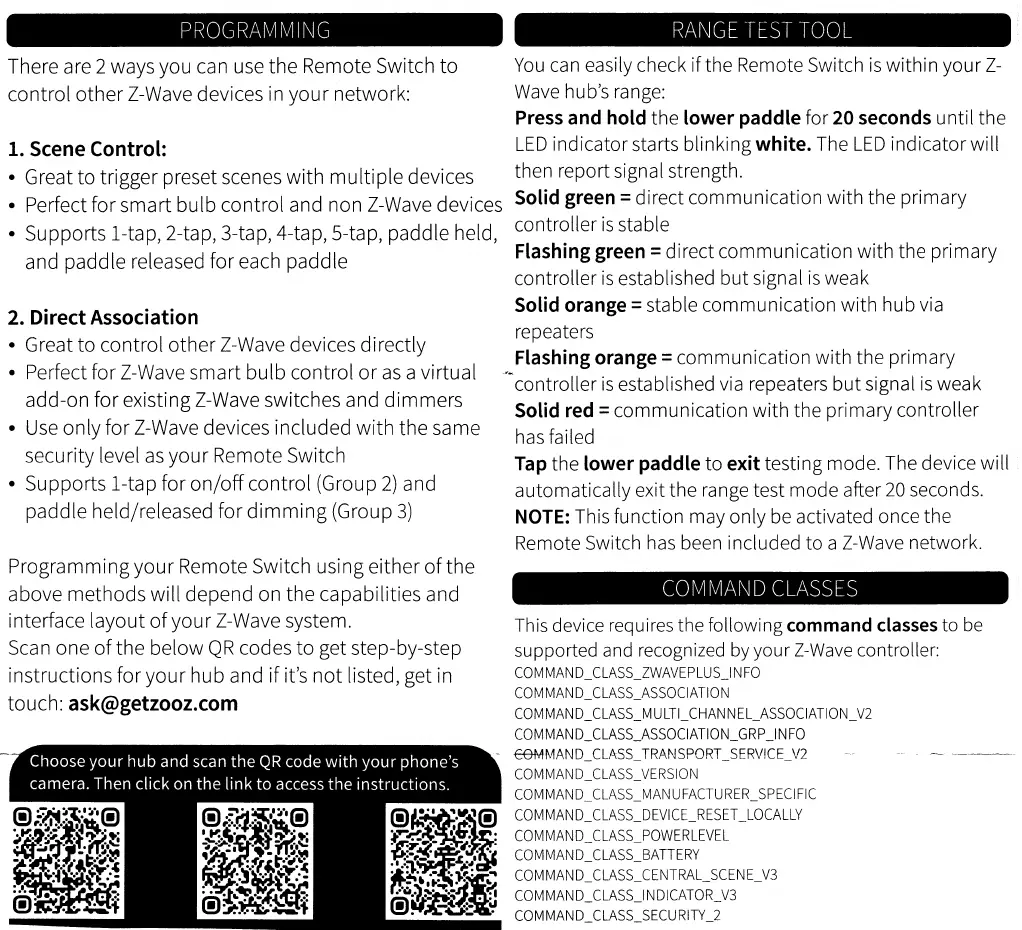

PROGRAMMING
RANGE
TEST
TOOL
There are
2 ways you
can
use the
Remote
Switch
to
control
other Z
-Wave devices
in your
network:
1. Scene Control:
• Great to
trigger preset scenes
with multiple devices
• Perfect
for
smart bulb
control
and
non Z -Wave
devices
•
Supports
1
-tap,
2
-tap, 3
-tap,
4
-tap,
5 -tap, paddle held,
and paddle
released
for each
paddle
2. Direct
Association
• Great to control other Z -Wave devices directly
•
Perfect for Z -Wave smart bulb control
or
as a virtual
add-on for existing Z -Wave switches and dimmers
• Use only for Z -Wave devices included with the
same
security level as
your
Remote Switch
• Supports 1 -tap for on/off control
(Group2)
and
paddle held/released
for dimming
(Group 3)
Programming your Remote
Switch
using either of
the
above methods
will
depend
on
the
capabilities and
interface layout of your Z -Wave
system.
Scan
one
of
the below
QR
codes to
get step-by-step
instructions
for your
hub and
if
it's not listed,
get
in
touch:
ask@getzooz.com
Choose
your
hub and
scan
the
QR
code with your
phone's
camera. Then click on
the link
to access
the
instructions.
You
can
easily
check if
the Remote
Switch
is
within your
Z -
Wave hub's
range:
Press and
hold
the lower paddle
for
20 seconds until
the
LED
indicator
starts
blinking
white. The
LED indicator
will
then
report signal
strength.
Solid
green =
direct
communication with
the
primary
controller
is stable
Flashing
green =
direct
communication with
the
primary
controller
is
established but
signal is
weak
Solid orange =
stable
communication with hub
via
repeaters
Flashing
orange =
communication with the
primary
controller
is established via
repeaters but
signal is
weak
Solid
red =
communication with
the
primary
controller
has failed
Tap
the
lower
paddle to
exit
testing mode. The
device
will
automatically exit the range test
mode
after 20
seconds.
NOTE: This
function
may only be
activated
once the
Remote
Switch
has been
included to a
Z -Wave
network.
COMMAND
CLASSES
This
device requires
the following
command
classes
to
be
supported and recognized
by
your
Z
-Wave
controller:
COM MAN
D_CLASS_ZWAVEPLUS_I N
FO
COM
MAN D_CLASS_ASSOCIATION
COM MAN
D_CLASS_M
U
LTI_CHAN N EL_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION_GRP_INFO
MAND CLASS
TRANSPORT
SERVICE
V2 -- -
CO
M MAN D_C
LASS_VE RS
I
O
N
COM MAN
D_CLASS_MAN
U
FACTU
RER_SPECI
FIC
COMMAND CLASS
DEVICE
RESET
LOCALLY
COM MAN
D_CLASS_POWERLEVEL
COMMAND CLASS
BATTERY
COMMAND CLASS
CENTRAL SCENE
V3
COMMAND CLASS
INDICATOR V3
COMMAND CLASS
SECURITY
2
