Stand &
Wall Mount
Power Adapter
(optional)
Handset Cord
Handset
IP Phone
Ethernet Cable
Quick Installation
& Quick Reference
PC Connection
(Optional)
IEEE 802.3af compliant
PoE Switch
You have two options for network and power connections. Your system administrator will
advise you on which one to use.
Power Adapter
(DC 5V)
PC Connection
(Optional)
ZIP 33G Quick Installation

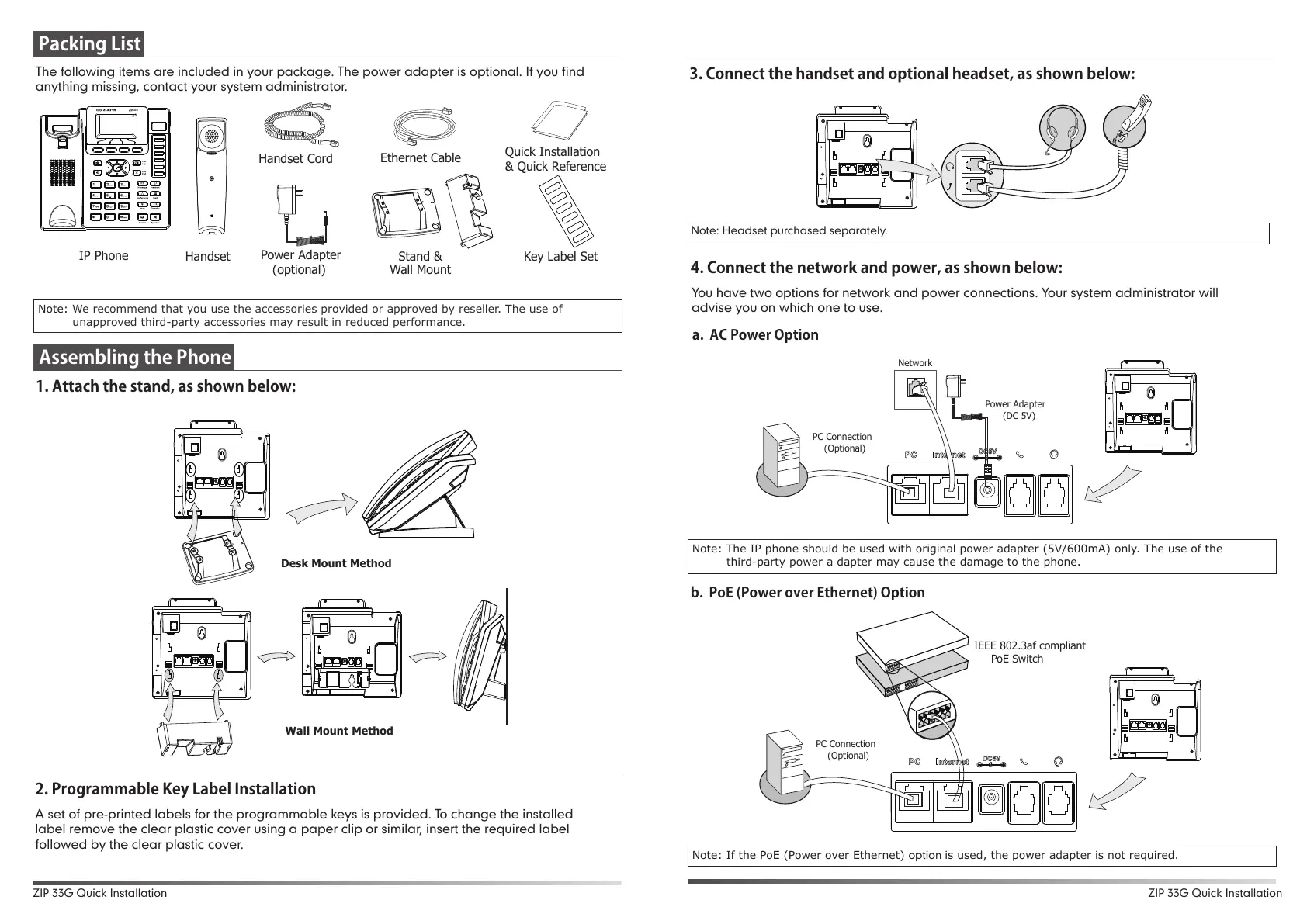

1. Attach the stand, as shown below:
2. Programmable Key Label Installation
4. Connect the network and power, as shown below:
a. AC Power Option
b. PoE (Power over Ethernet) Option
The following items are included in your package. The power adapter is optional. If you find
anything missing, contact your system administrator.
Packing List
Assembling the Phone
Note: If the PoE (Power over Ethernet) option is used, the power adapter is not required.
Desk Mount Method
Wall Mount Method
Network
ZIP 33G Quick Installation
Key Label Set
Note: Headset purchased separately.
3. Connect the handset and optional headset, as shown below:
A set of pre-printed labels for the programmable keys is provided. To change the installed
label remove the clear plastic cover using a paper clip or similar, insert the required label
followed by the clear plastic cover.
33G
Note:
We recommend that you use the accessories provided or approved by reseller. The use of
unapproved third-party accessories may result in reduced performance.
Note:
The IP phone should be used with original power adapter (5V/600mA) only. The use of the
third-party power a dapter may cause the damage to the phone.
