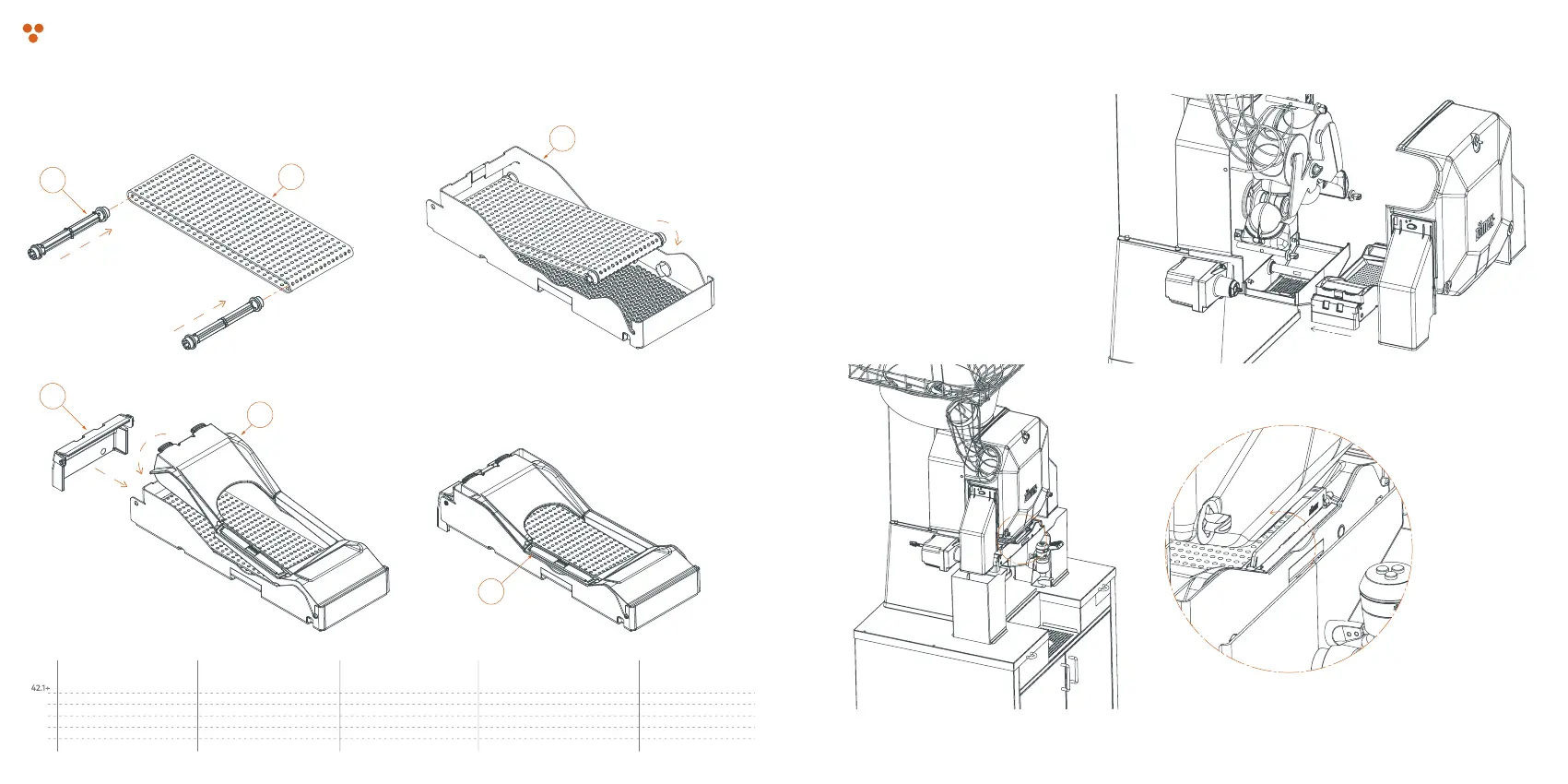

ZUMEX Speed S +plus - Page 18

Fig. 20.1+
12
34
RODILLO
CINTA TRANSPORTADORA
BASTIDOR
TAPA DE LA CINTA
TAPA LATERAL
TAPA SALPICADURA
ROULEAUX
TAPIS ROULANT
CHÂSSIS
COUVERCLE DE LA BANDE
COUVERCLE LATÉRAL
COUVERCLE ANTI-PROJECTIONS
WALZEN
TRANSPORTBAND
GESTELLS
DECKEL DES BANDES
SEITENDECKEL
SPRITZSCHUTZDECKEL
42.2
+
42.3
+
42
.4+
42.5
+
42
.6+
ROLLER
CONVEYOR BELT
FRAME
RIBBON COVER
SIDE COVER
ANTI-SPLASH CAP
RULLI
TRASPORTATORE
TELAIO
COPERCHIO DEL NASTRO
COPERCHIO LATERALE
COPERCHIO PARA-SCHIZZI
EN
ES
FR
DE
IT
42.1+
42.5+
42.2+
42.4+
42.3+
42.6+
Fig. 20.2+
1
2
A
A
