Technical instructions
Z22

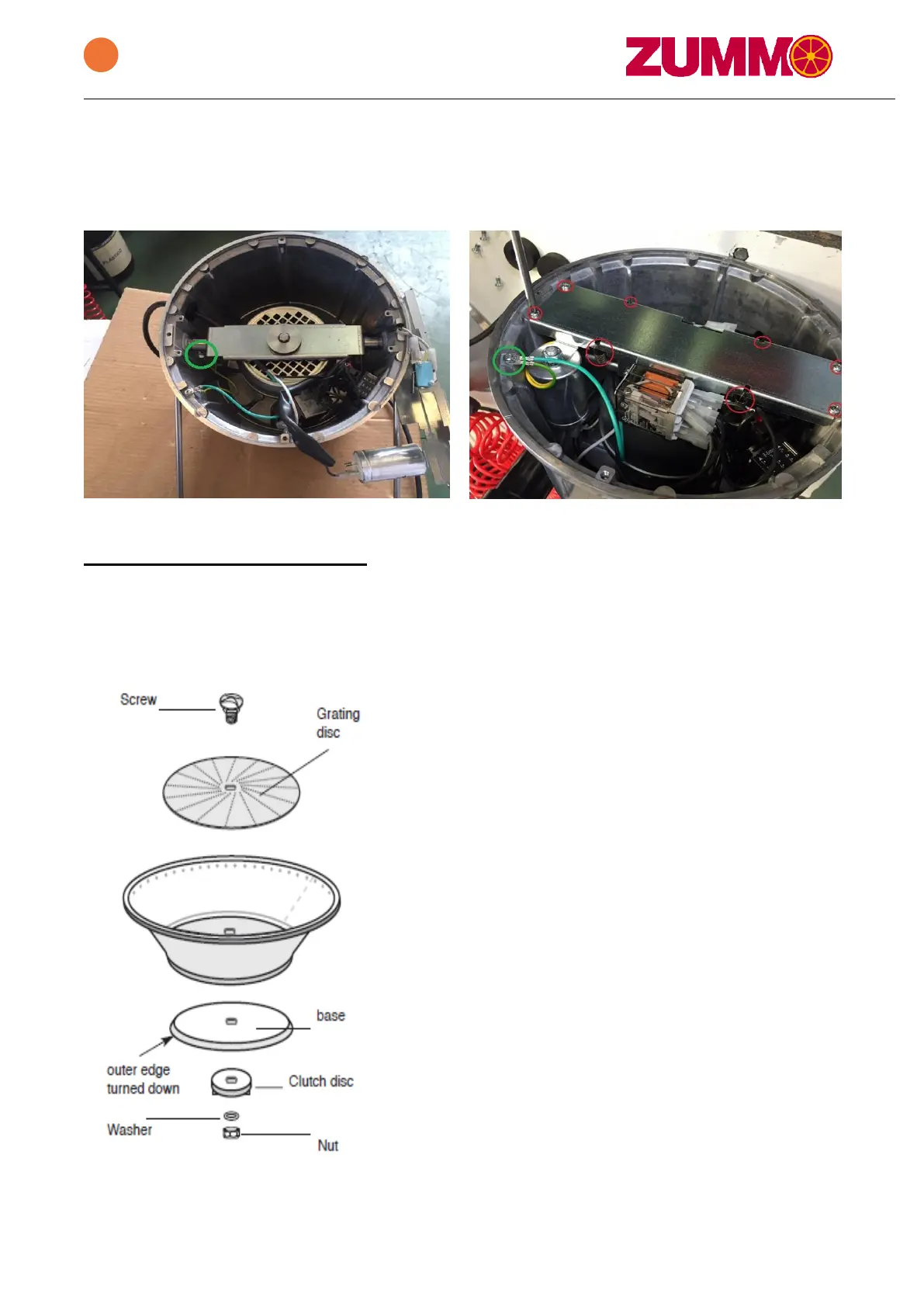

3.4 Before proceeding the machine assembling, the ground must be connected ALWAYS
at the hexagon socket screw of the locking arm fitting and to the chassis also with a screw.
(see green marks)
4.- Grating disc change:
4.1.- For changing the grating disc we must disconnect the mains and then proceed to remove all the
stuff of the bowl as shown on the picture below:
Fig.2.
