3.- Closing the machine
3.1. After checking that the locking arm is fitted on the right position*, we proceed to fix it to
the mobile guideway in both sides, then we put the rubber washer and the bolt that fits the
guideway on the motor.
*Very important:

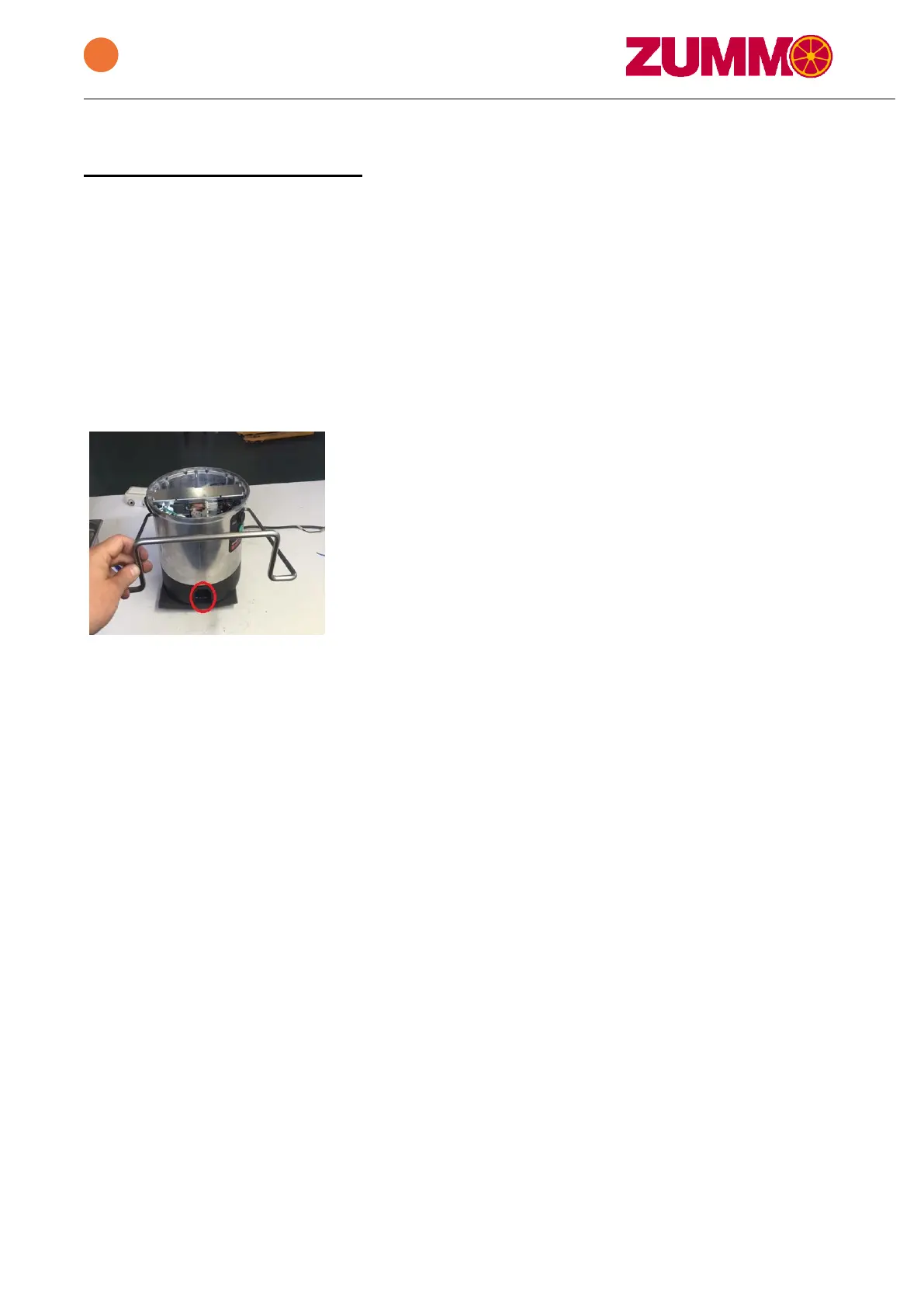

When we put again the locking arm we must take
a look at this picture before doing something. It
only has one position.
The slot (spotted in red) of the bowl must be in
front of you and with the locking arm in the
same position as in the picture.
3.2 Once we have both guideways assembled, the fixed one (has 4 screws on the corners) and
the mobile one (has a rubber washer and a hexagonal bolt) we proceed to assemble the plastic
base and screw it to the machine. **
* Warning: Be careful before screwing this base, it only has one possible position and you can
only screw it properly when you find it. The plastic piece has a slot that fits on the machine
when you find the right position. In case of being wrong assembled, couldn’t be able to screw
the rubber feet properly.
3.3 For proceeding to assemble the main parts of the juicer we must follow the instructions shown
on the graphic above at page 2. (Fig.1.)
