Page 10
Zurn PEX
®
Plumbing Installation Guide
ZURN PEX, INC. HIGHWAY 11 EAST, COMMERCE, TEXAS, U.S.A. 75428 • PHONE: 855-ONE-ZURN (855-663-9876) • FAX: 903-886-2583 • www.zurn.com
QickClamp
®
System
• Patent-pending technology
• One tool system
• Available in 3/8", 1/2", 3/4", and 1" sizes
• Go Gauge
• 25-year system warranty
Crimp Systems
Zurn offers three different clamp fitting systems: the QickClamp, the Copper Crimp Ring, and the Stainless Steel Clamp Ring
system. To choose the clamp system most appropriate for your installation, consider factors relative to your jobsite priorities.
Listings
By NSF International as meeting the following standards:
ASTM F877
CAN/CSA B137.5
NSF Standard 14
Important: The QickClamp cannot be used with Zurn PEX transi-
tional fittings which are used to transition from polybutylene to PEX.

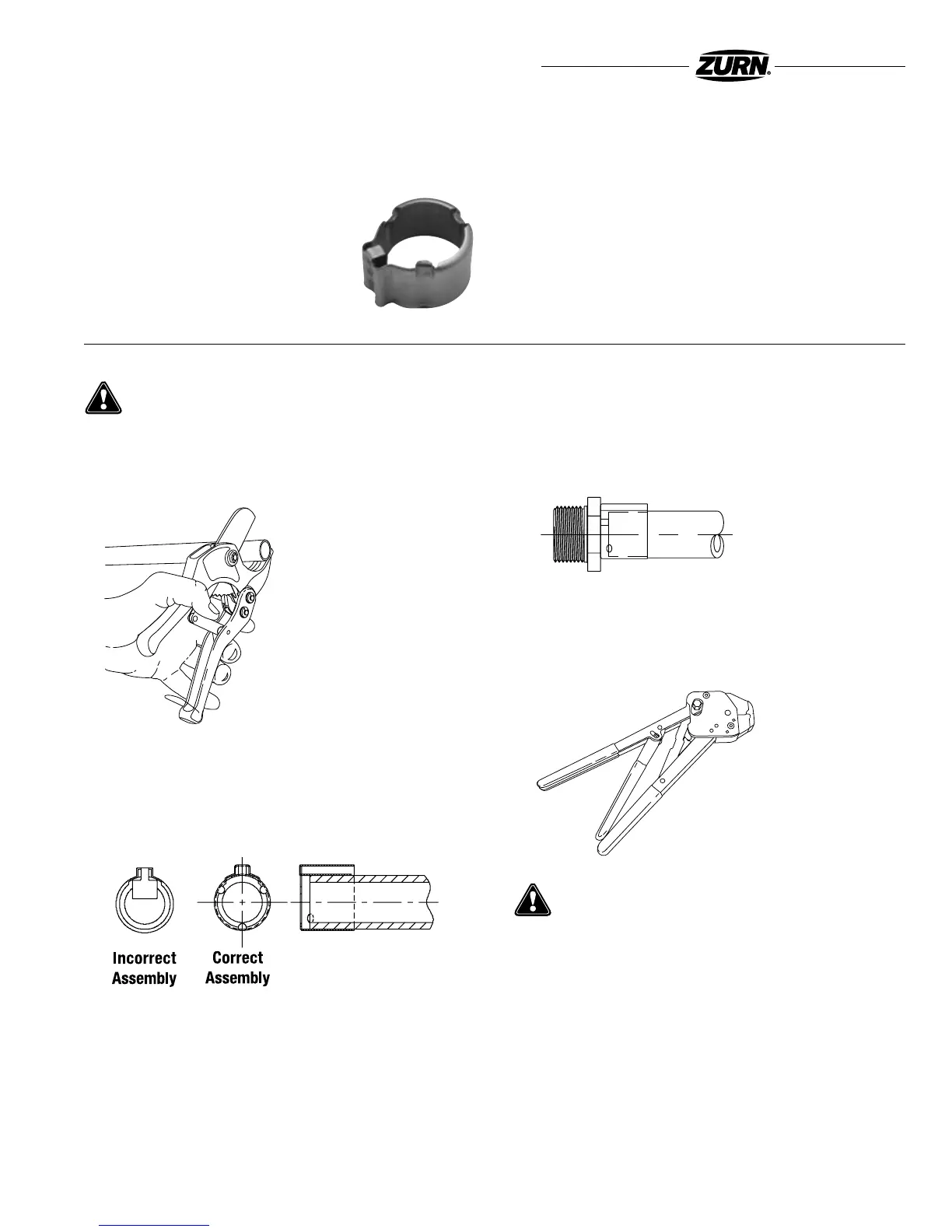

Making The Connection with the Medium QickClamp Tool
Important: Using this tool for anything other than its intended purpose voids the warranty.
1) Measure and cut the tube. Be sure you have a square,
burr-free cut. An uneven or jagged cut may cause an
improper connection.
2) Push tubing into the QickClamp until the tubing stops at
locating fingers. Do not force the tubing to bottom out in
the QickClamp. Some tubing should be visible in the sight
hole. Be sure that the tab inside the QickClamp stays on
the outside of the tubing.
3) Push fitting into the tubing until the fitting shoulder touches the
locating fingers on the QickClamp.
4) Open the QickClamp Medium Crimp Tool* and pull the middle
handle down. Hold the tool in one hand with your thumb over
the middle handle and your fingers around the bottom handle.
Place the jaws completely over the QickClamp pinch ear.
Important: Be sure the tool jaws cover the entire ear of the
QickClamp before crimping; failure to do so will result in an
improper crimp and may void the warranty.
QickClamp rings must not come in contact with solder flux.
