Page 29
ZURN PEX, INC. HIGHWAY 11 EAST, COMMERCE, TEXAS, U.S.A. 75428 • PHONE: 855-ONE-ZURN (855-663-9876) • FAX: 903-886-2583 • www.zurn.com
Zurn PEX
®
Plumbing Installation Guide

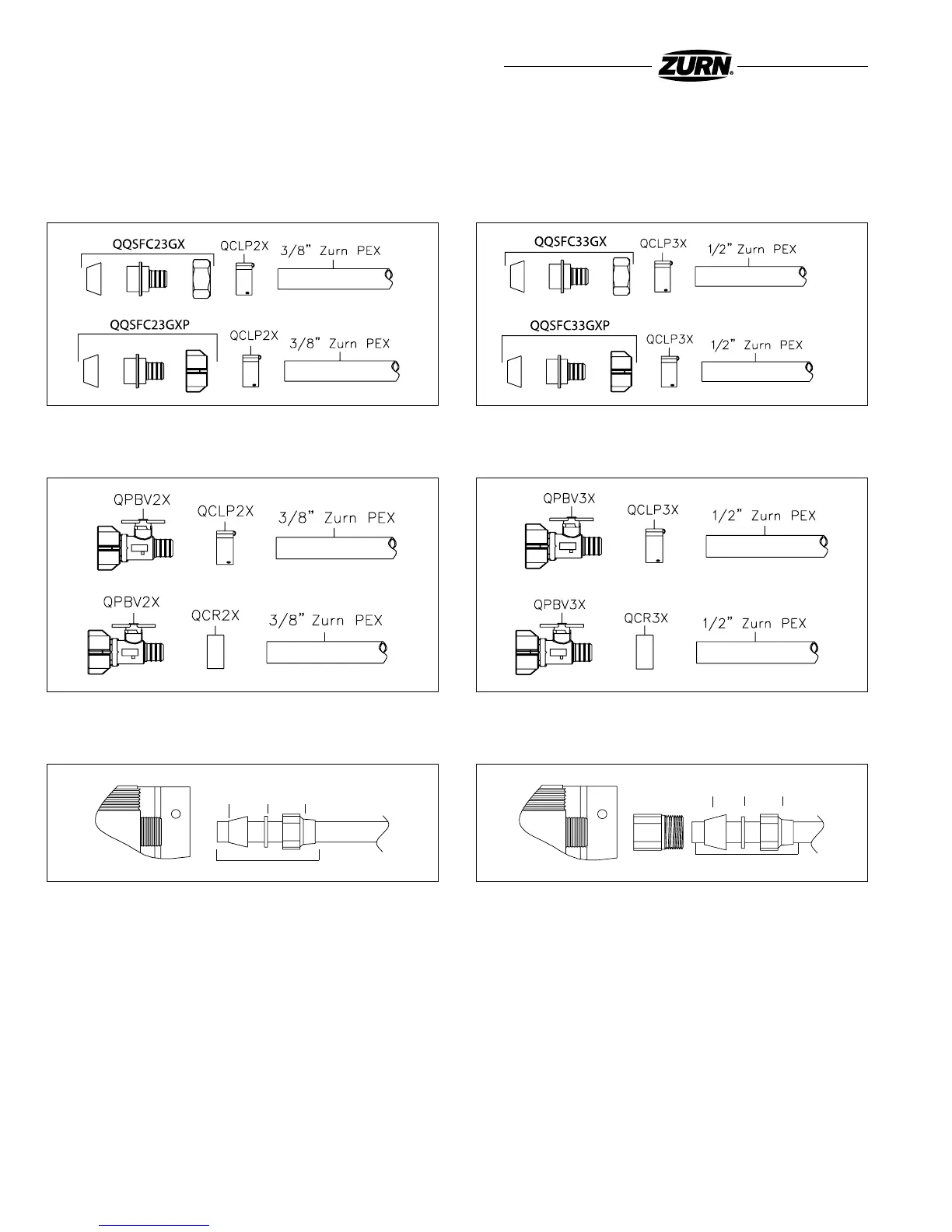

Connecting Zurn PEX Tubing to the QickPort Manifold
There are a number of options for the installer to choose from when connecting Zurn PEX tubing to the QickPort Manifold. These
options depend on local codes, crimp tool availability, and installer/homeowner preference. The following illustrate some of the
connection options available through Zurn. All of the fittings shown below are available through the Zurn PEX product catalog.
For 3/8" Distribution Lines For 1/2" Distribution Lines
For 1/2" Distribution Lines
Zurn PEX CR Valve Connections
For 3/8" Distribution Lines
QickClamp Connections
Qicktite Connections
For 1/2" Distribution LinesFor 3/8" Distribution Lines
QC2 QR2 QFN2
QFNCR2
QC3 QR3 QFN3
QFNCR3
